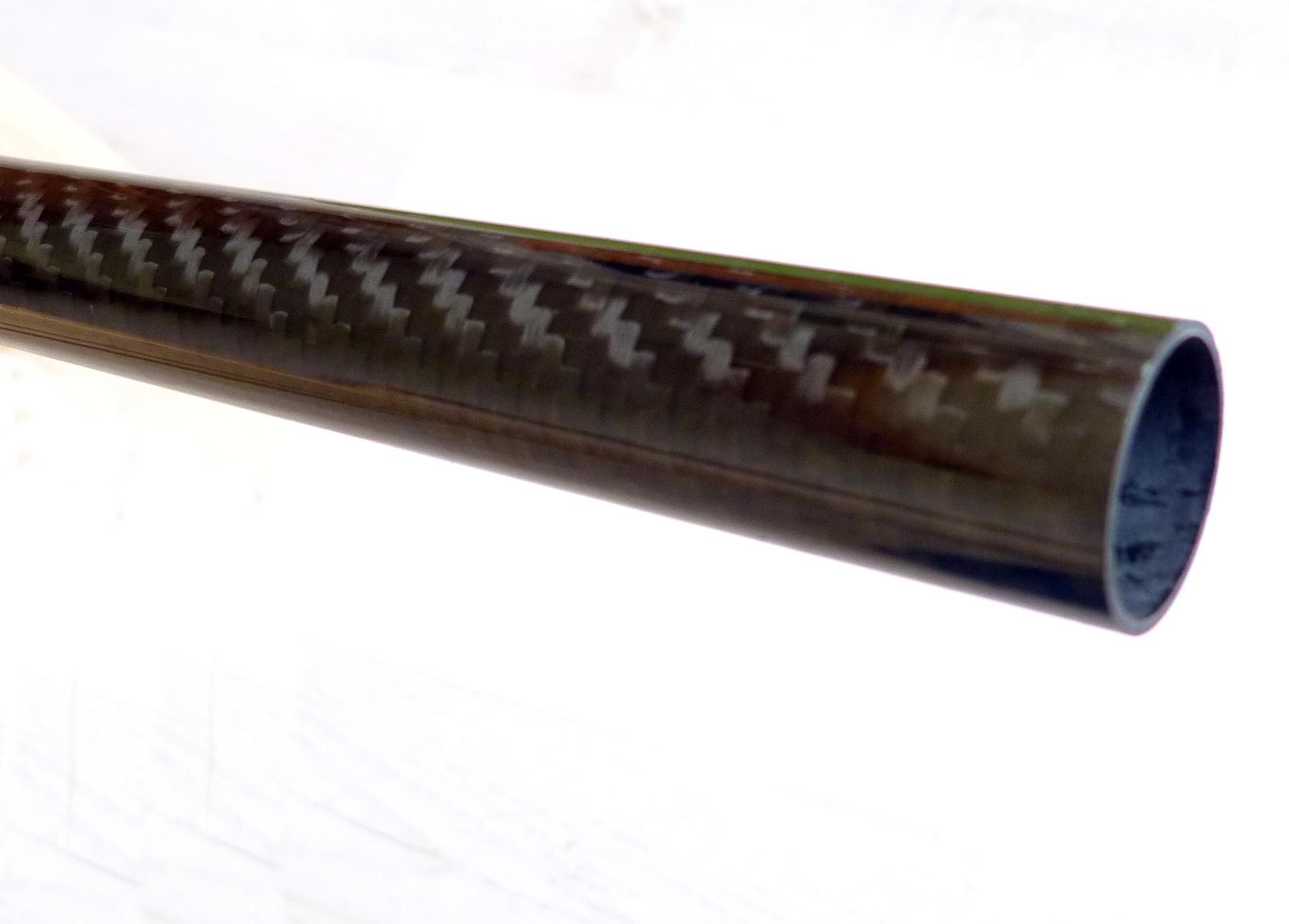

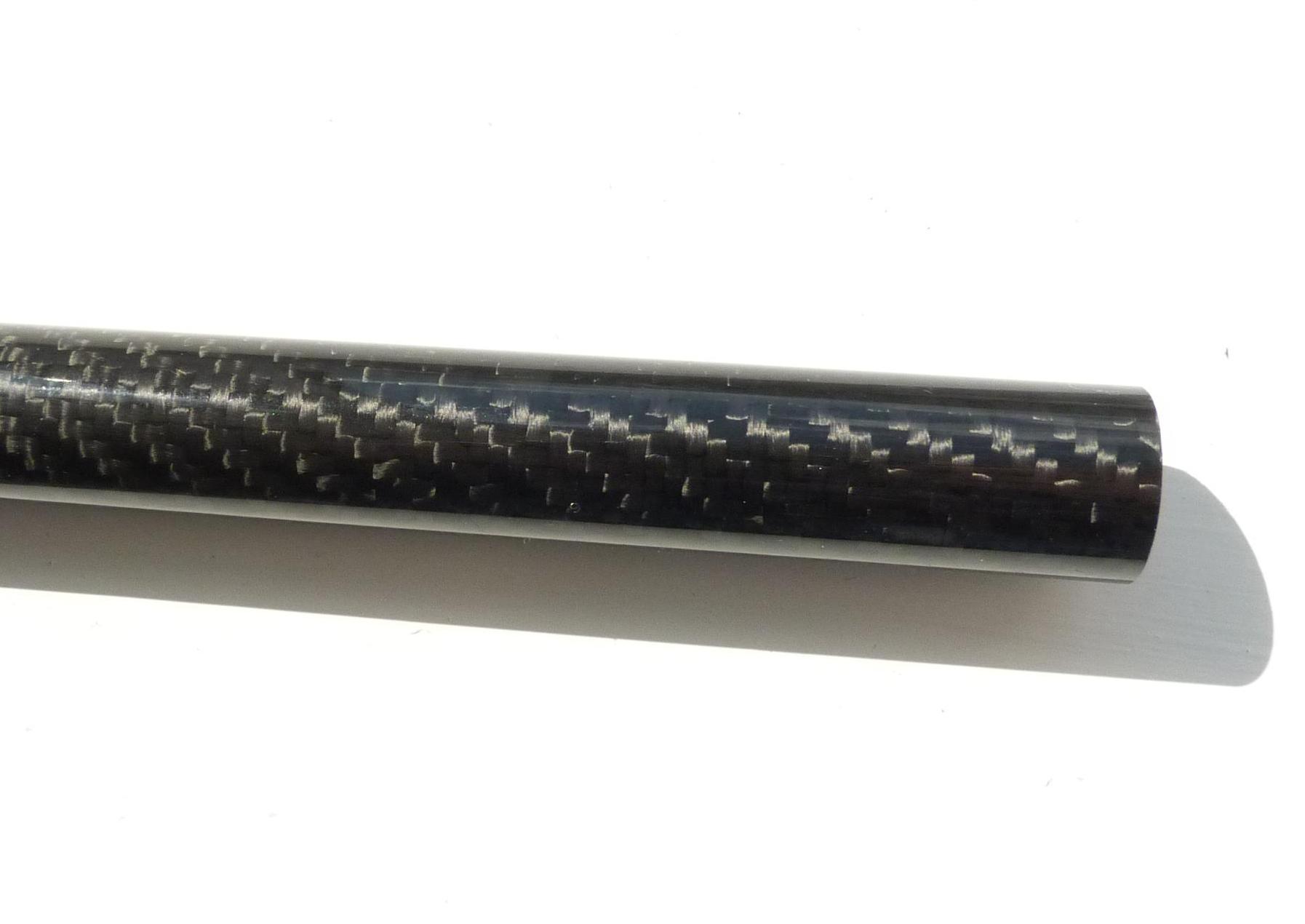

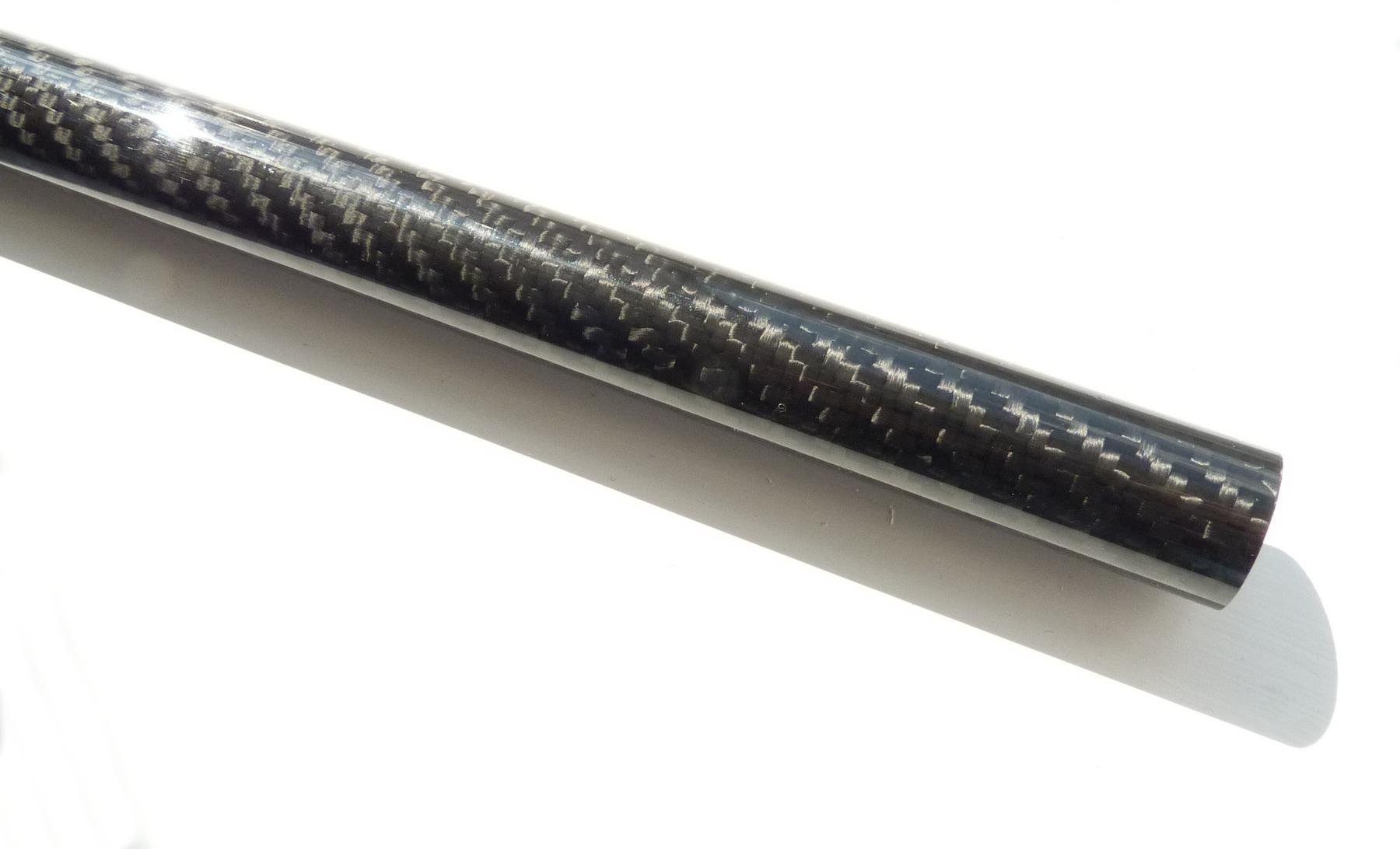

9.8mm OD 8mm ID Wound Carbon Tube
Description
9.8 mm diameter Twill (diagonal) layup wound carbon fibre laytup tube in an epoxy matrix. This is strong in bending, twist and hoop directions, making it ideal for most applications.
Unlike the pultruded carbon tubes these tubes have been sized so they will telescope inside the other wound carbon tubes we stock:
The N/A will fit inside this tube.
This tube will fit inside a CF-TWILL-12MM
Select the required length using the radio buttons below the price.
Postal Charges
England, Wales & Scottish Lowlands
75 cm items will be sent in a postal tube by Royal Mail. 150 cm items will be sent in a long postal tube by courier - this increases the postal cost.
UK Islands, NI & Scottish Highlands
All items will be cut down to 75 cm length and sent by Royal Mail unless this postal charge is added to the basket.
Europe and Rest of the World
75 cm long items will be sent by Airmail post at low cost. Longer items will be sent by courier - this will increase the shipping charge considerably.
If even numbers of 75 cm long items are ordered we reserve the right to send half the number of 150 cm items to simplify packing.
Unlike the pultruded carbon tubes these tubes have been sized so they will telescope inside the other wound carbon tubes we stock:
The N/A will fit inside this tube.
This tube will fit inside a CF-TWILL-12MM
Select the required length using the radio buttons below the price.
| 9.8 mm Twill Wound Carbon Fiber Tube Specification | |
|---|---|
| Outside diameter | 9.8 mm |
| Inside diameter | 8 mm |
| Weight per m | 39 g per meter |
| Length | See the options below the price |
| Structural material | T300 carbon fibers |
| Matrix | Epoxy resin |
| Carbon content | Approx. 60% |
| Youngs Modulus | 230 GPa |
| Ultimate tensile strength | 1600-2300 mPa |
| Fibre density | 1.4 - 1.8 g/cm3 |
| Resin glass transition Tg | 170º C |
| Packing type | Rigid-usually sent in a postal tube |
Postal Charges
England, Wales & Scottish Lowlands
75 cm items will be sent in a postal tube by Royal Mail. 150 cm items will be sent in a long postal tube by courier - this increases the postal cost.
UK Islands, NI & Scottish Highlands
All items will be cut down to 75 cm length and sent by Royal Mail unless this postal charge is added to the basket.
Europe and Rest of the World
75 cm long items will be sent by Airmail post at low cost. Longer items will be sent by courier - this will increase the shipping charge considerably.
If even numbers of 75 cm long items are ordered we reserve the right to send half the number of 150 cm items to simplify packing.
Reviews 3
Happy Customer
UK
Used with 11.8mm tube to make 11.8/8mm tailplane joiner for 5m scale glider. Sliding tubes epoxied together. 750mm length enough for 2 sets.
Robert Powell
UK
Bought to be a telescoping spar in my Sunspot Vintage Glider (Tailplane) and for which it looks to be excellent (if a little costly) - I bought the 1.5 M length and will use it with the next size down which telescopes easily inside, with little slop.
High quality and prompt delivery as ever from Neil - Perfect !
