Very Large Shrouded Servo Cover with Bulge (2)
Description

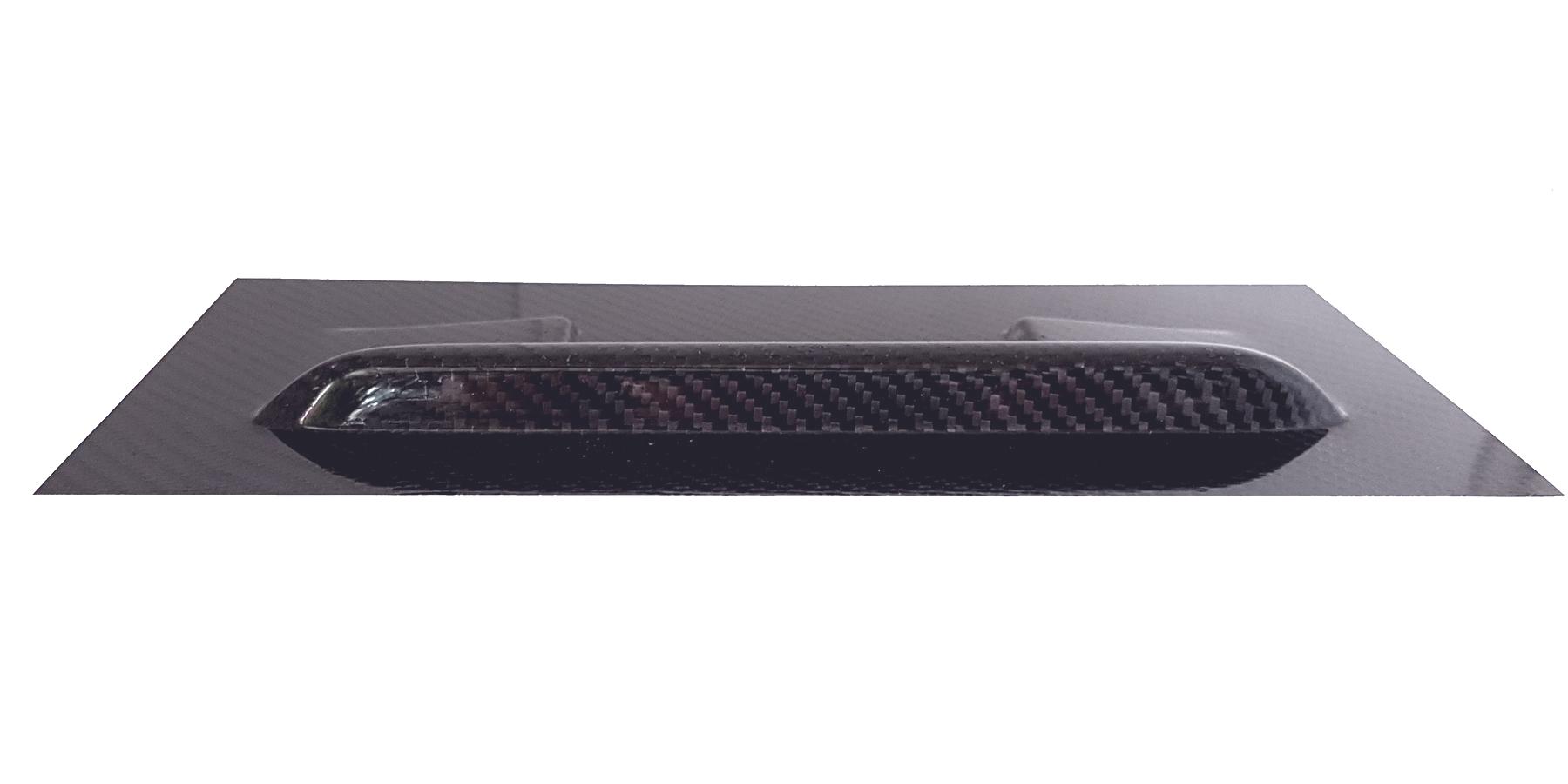

These large molded wing servo covers are light, low drag, and look good. They are molded with a larger bulge to allow thicker servos to be used. The bulge is approx 4 mm deep and allows thicker servos to be used.
The large shroud covers the servo output arm, clevis, and the control rod. This reduces the turbulence and improves performance measurably.

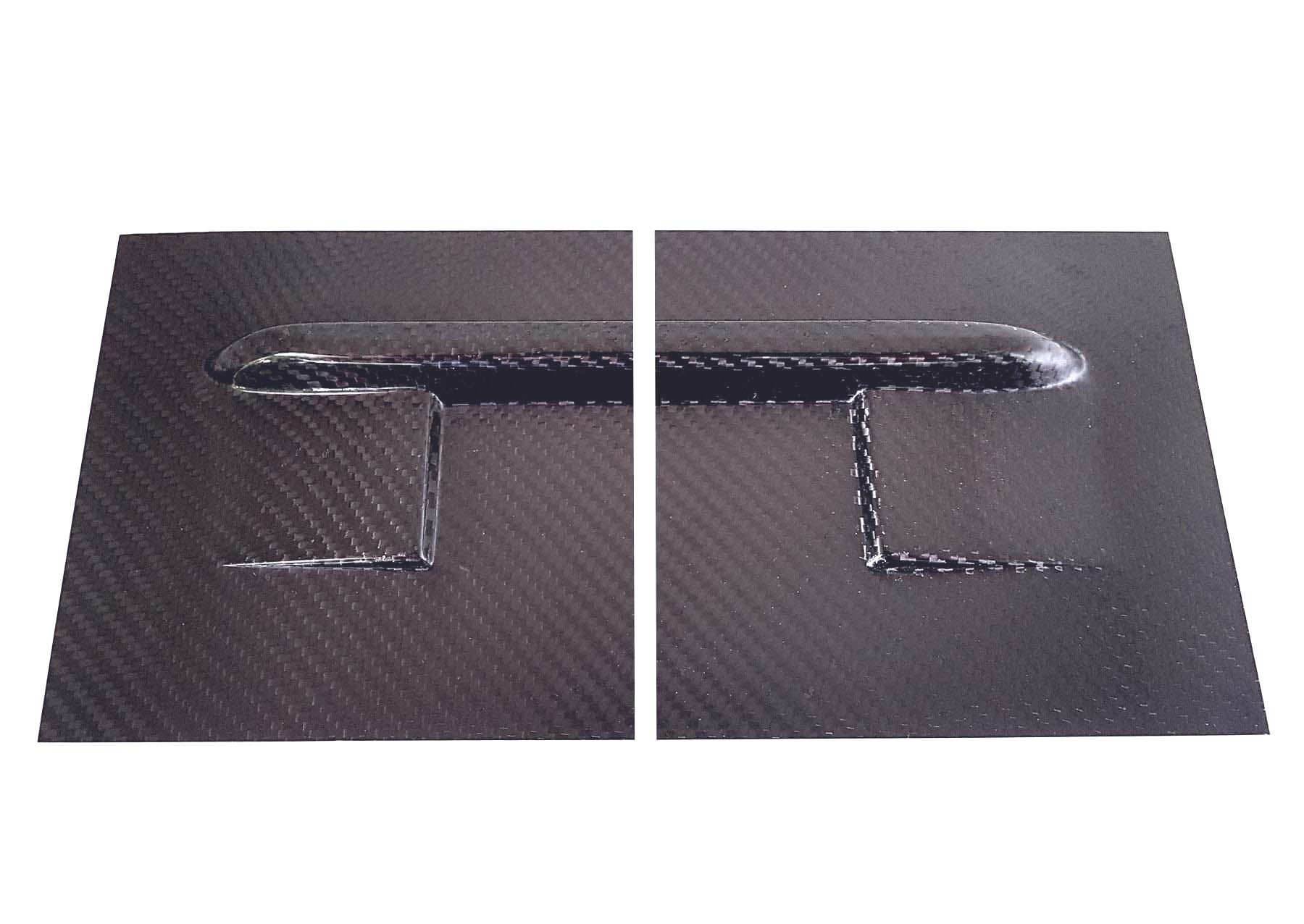

Supplied as one piece - cut in half to make a pair of covers.
Trim to size to suit your application and attach with clear tape.
The large shroud covers the servo output arm, clevis, and the control rod. This reduces the turbulence and improves performance measurably.
Supplied as one piece - cut in half to make a pair of covers.

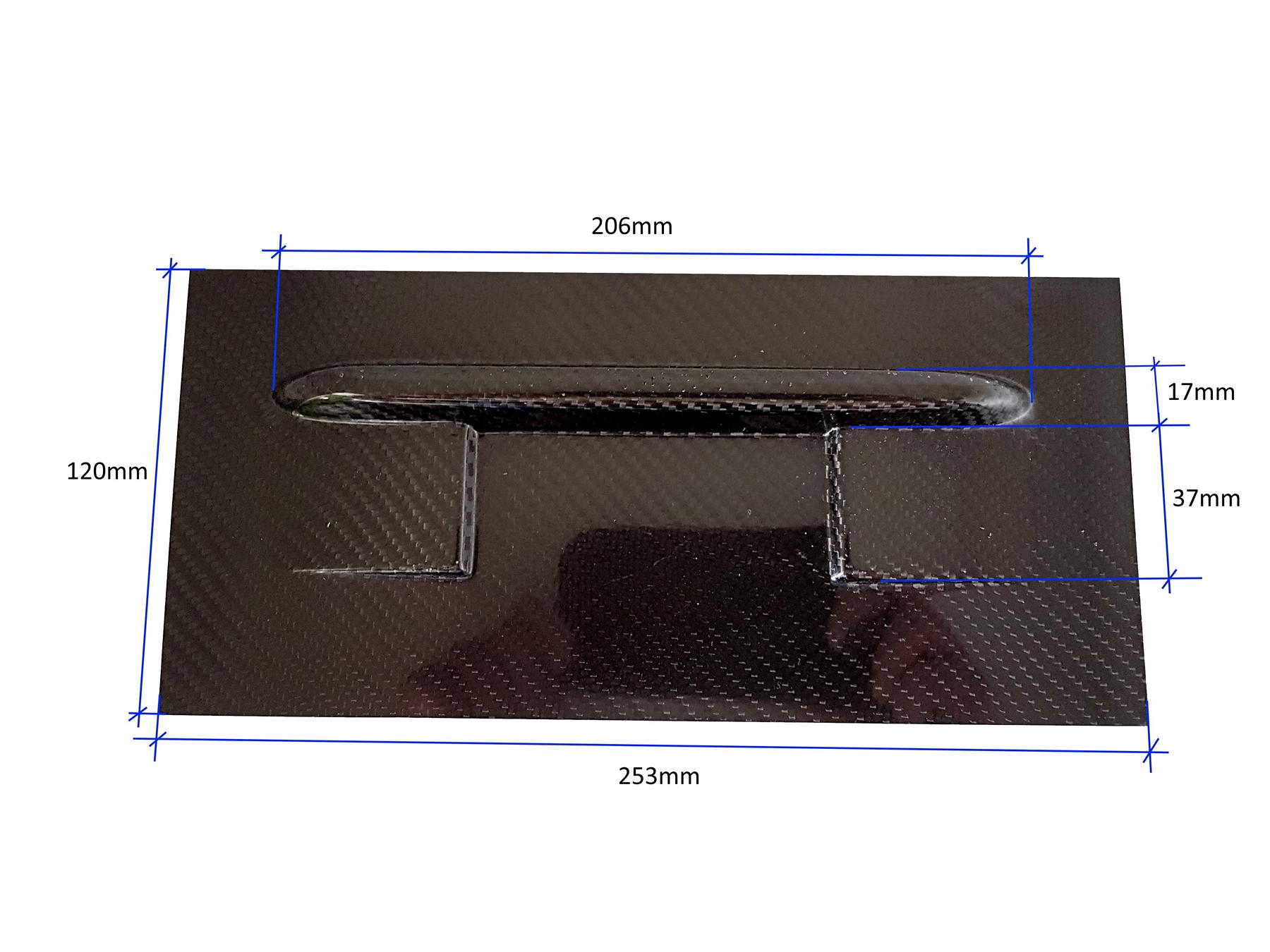

| Largw Shrouded Carbon Servo Covers (with bulge) Specification | |
|---|---|
| Thickness of carbon sheet | 0.30 mm |
| Chordwise length | 125 mm |
| Spanwise length | 120 mm |

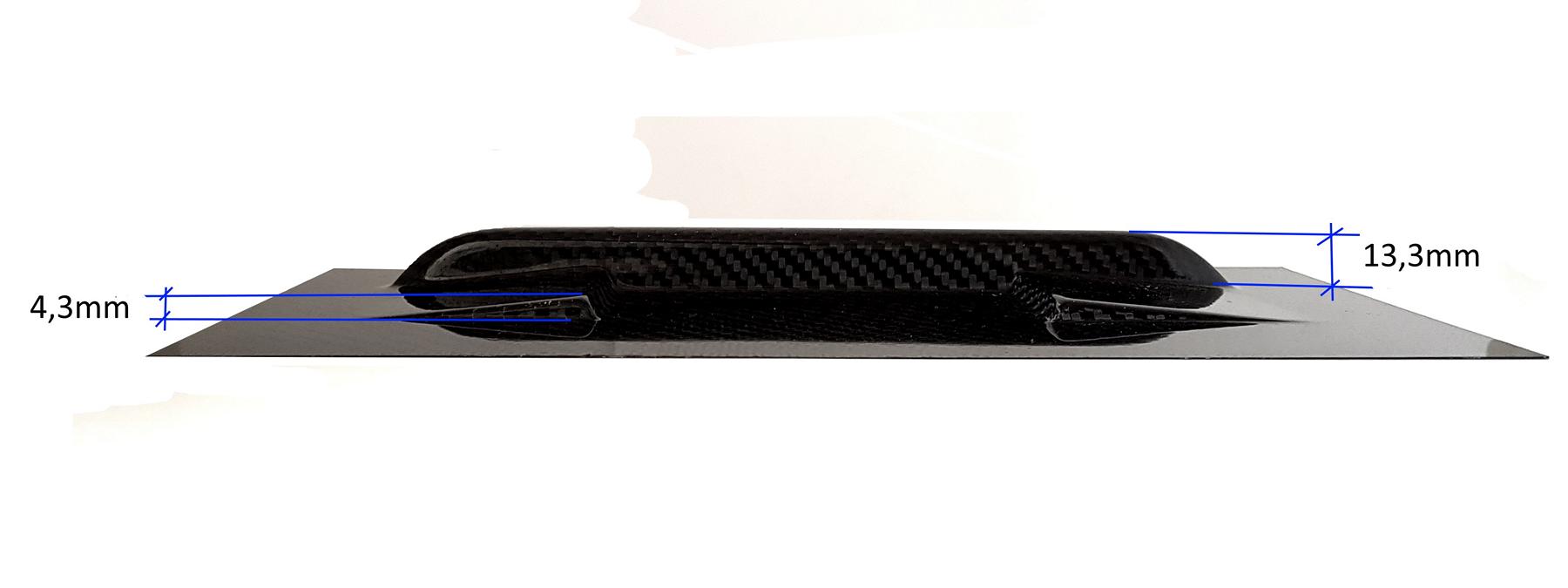

| Depth of servo bulge | 4 mm |
| Distance of shroud from edge | 30 mm |
| Thickness of shroud | 15 mm |
| Height of shroud | 13 mm |
| Weight | 7.7 g |
Trim to size to suit your application and attach with clear tape.
