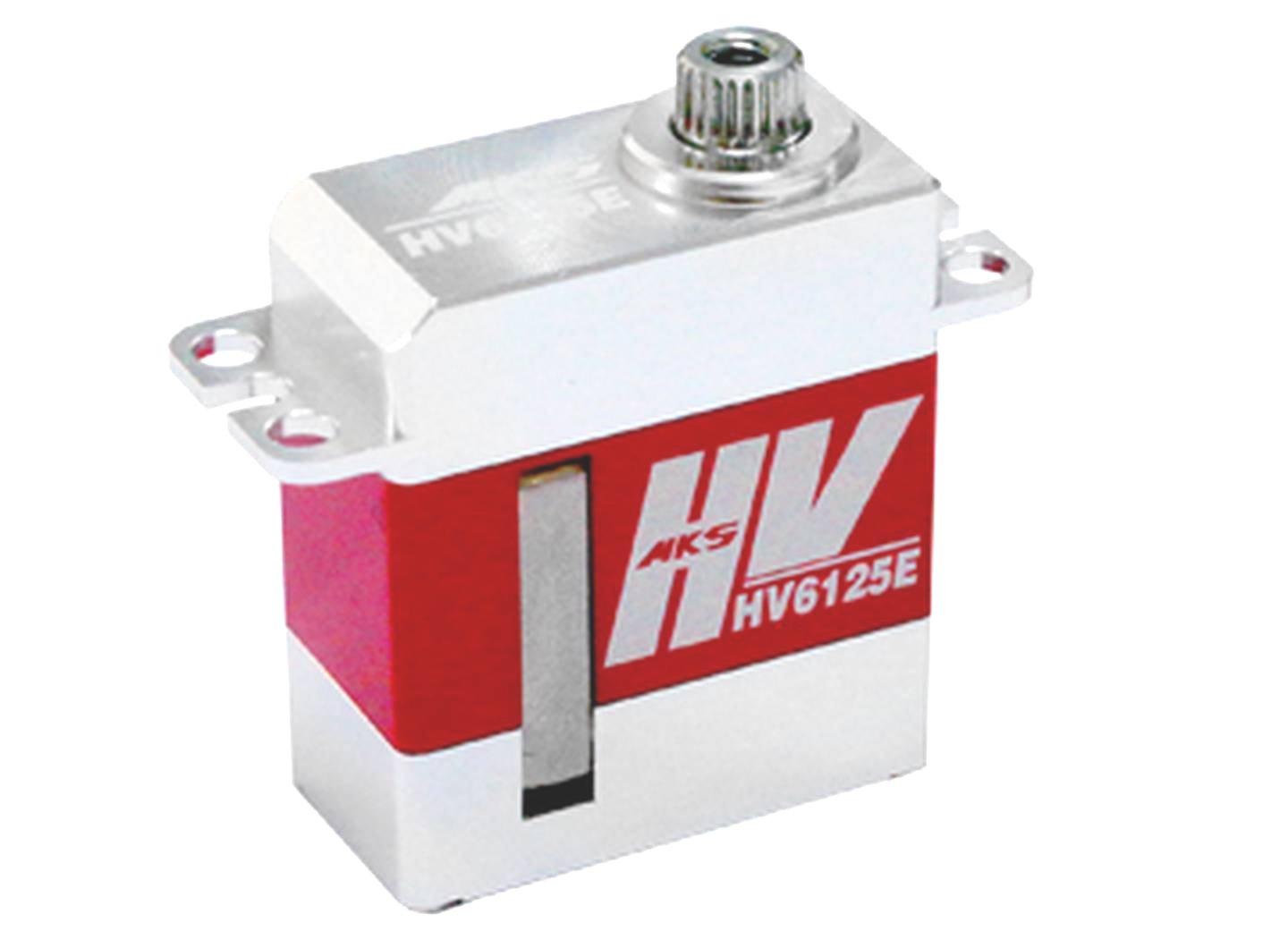

MKS HV6125E Servo - 3.5Kg.cm 0.05s 19.9g 12mm

Description

The new MKS-HV6125E is primarily designed as a glider tail servo, with excellent speed, brilliant resolution, and NO free play. It perfectly complements the HBL6625 HV wing servo - but the HV6125e can also be useful for wings, where the fantastic speed will be appreciated. Also great for heli cyclic and tail rotor use.

High Voltage: 6.0 - 8.4V
Ultra-High Resolution
All Aluminium Alloy CNC Case
Coreless Motor
Fast
Negligible Backlash

The MKS hallmark CNC aluminium alloy case adds rigidity and crash resistance to the servo. The gears are pre-loaded to remove all slop or backlash from the geartrain, allowing a level of precision unequalled by other manufacturers.

MKS HV6125E Servo Specifications

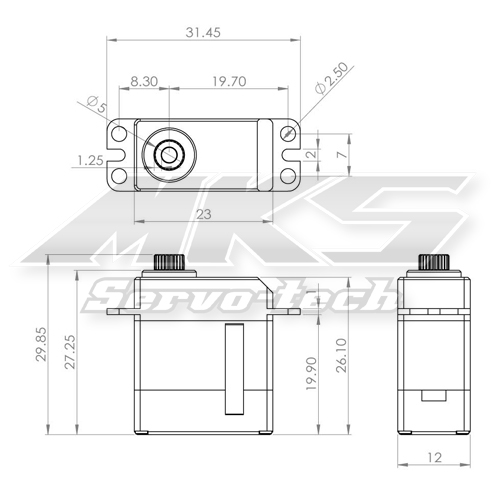

Body dimensions	23.0 mm wide x 12.0 mm thick x 27.3 mm high	0.91" wide x 0.47" thick x 1.07" high
Max dimensions	31.5 mm wide x 12.0 mm thick x 29.9 mm high	1.24" wide x 0.47" thick x 1.18" high
Stall torque (6V)	2.3 Kg.cm	32 oz.in
Stall torque (7.4V)	3 Kg.cm	42 oz.in
Stall torque (8.2V)	3.5 Kg.cm	49 oz.in
Weight	19.86 g	0.70 oz
Lead length	22 cm	8.7 in
Operating speed (6V)	0.07 sec/60°
Operating speed (7.4V)	0.06 sec/60°
Operating speed (8.2V)	0.05 sec/60°
Operating voltage	6V to 8.2V
Operating temperature	-10 to 50 °C
Bearings	2 ball bearings
Gear material	Chrome-titanium alloy
Case material	Aluminium alloy
Motor type	Coreless motor
Working frequency	333 Hz
Dead band/resolution	0.8 µs
Pulse width for ± 60º	µs
Digital	Yes
Programmable	No
Position feedback	Direct drive potentiometer
Supplied accessories	2 plastic output arms, 2 arm retaining screws, 2 mounting screws
Optional accessories	MKS Short Metal Servo Output Arms, MKS Long Metal Servo Output Arms
