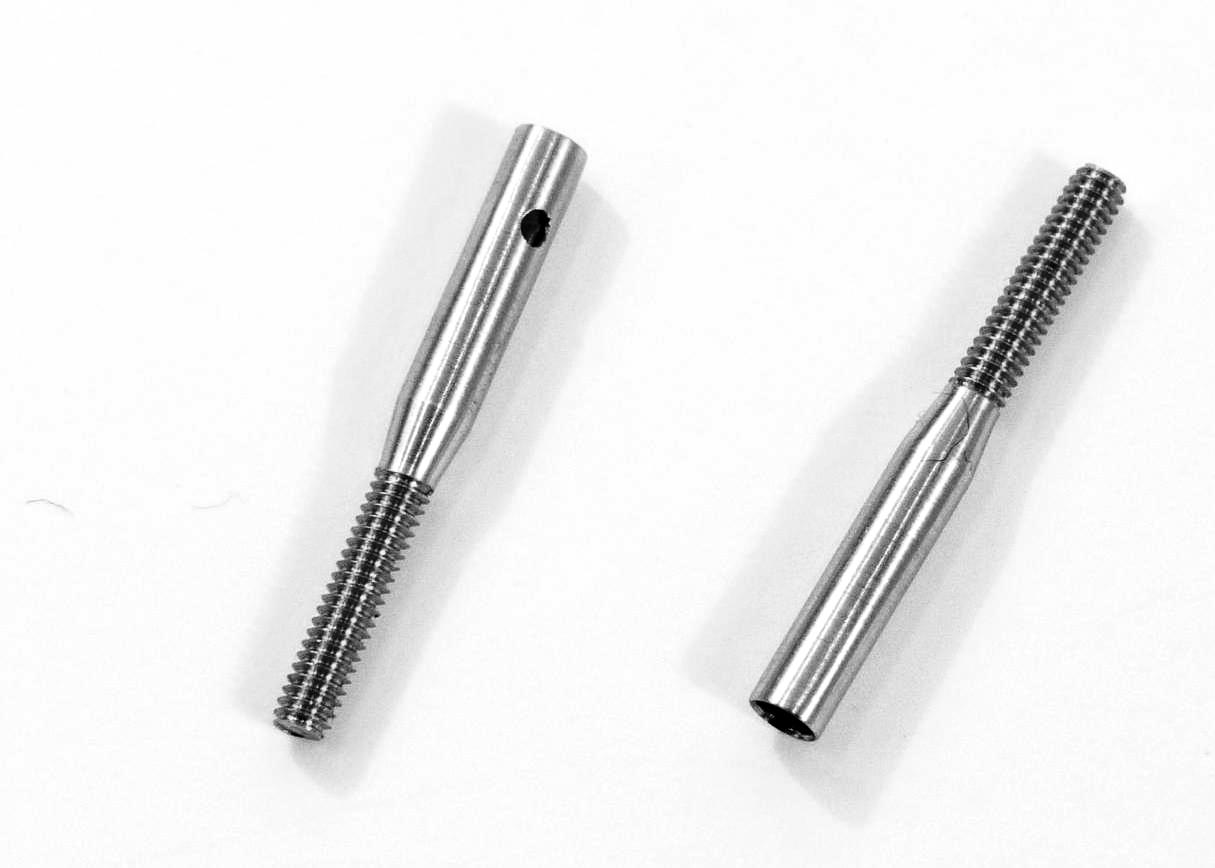

M2 Stainless Steel Pushrod Ends for 1.8mm Rods (2)
Description
Note two SS pushrod ends only are supplied, rods and clevises must be purchased separately. Suitable for 1.6 mm to 1.8 mm carbon or steel rods. Attach by coating the pushrod in epoxy or thick CA. The hole is to allow the air and excess glue to escape. Degrease before gluing.
| Stainless Steel 1.8mm Long Pushrod End Specification | |
|---|---|
| Pushrod hole size | 1.8 mm |
| Pushrod tube length | 10 mm |
| Threaded portion length | 11.5 mm |
| Overall length | 26 mm |
| Thread size | M2 |
| Weight (each) | 0.70 g |
Reviews 10
These rod ends work perfectly with MP Jet Clevises.and the 1.8mm carbon rod Neil sells here. Perfect upgrade for any sailplane 2M-4M. Use 30 min epoxy to secure and clean excess w rubbing alcholo and good to go.
Further to my previous reveiw, i received an immediate offer of replacements from Neil. So, definitely 5 stars for service! If only all online retailers offered this level of customer satisfaction....
Usual quick service from Hyperflight. It would have been 5 stars but for the minor irritation of being sent the wrong size. my order, and the invoice were both for 1.8mm rods, but what I received were for 1.5mm rods. As the other end of the rods were already made up, and fitted to the very lightweight model, I was happy enough to file the rods down to fit.
very nicely machined- smaller and lighter than I pictured (good)
Con la varilla de carbono de 1,8mm va perfecto, los gujeros lteralea dejan salir el aire y el epoxi, queda perfecto
Bought the carbon push rods, M2 push rod ends & etched silicone tubing to make up a Bowden cable for my moulded glider. Great installation tips & service from Hyperflight. Everything a perfect fit.
Bought to replace plastic versions. Very happy with these carbon versions. Will buy to replace on my other models.
