M2 Aluminium Pushrod Ends for 3mm Rods (2)
Description

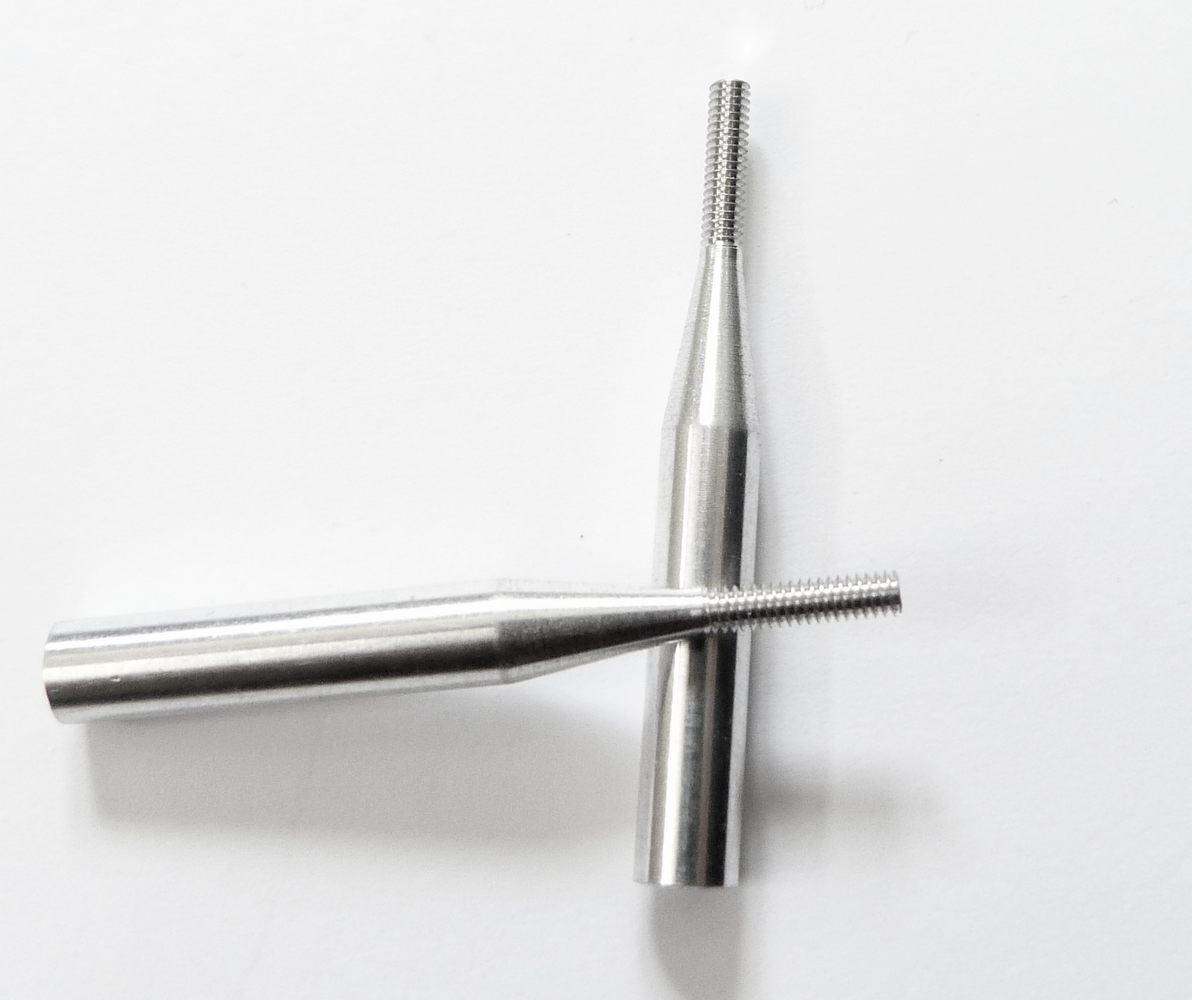

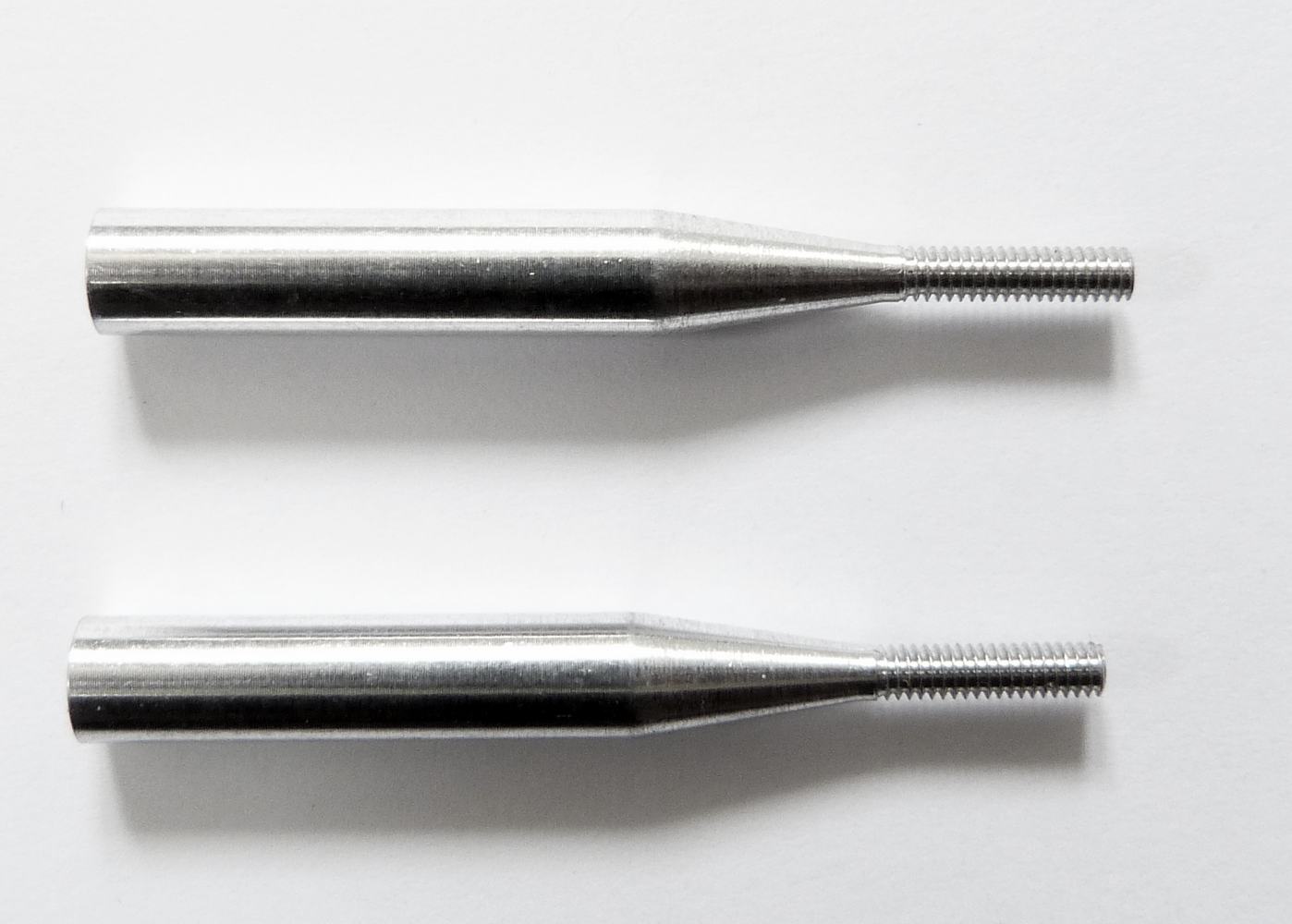

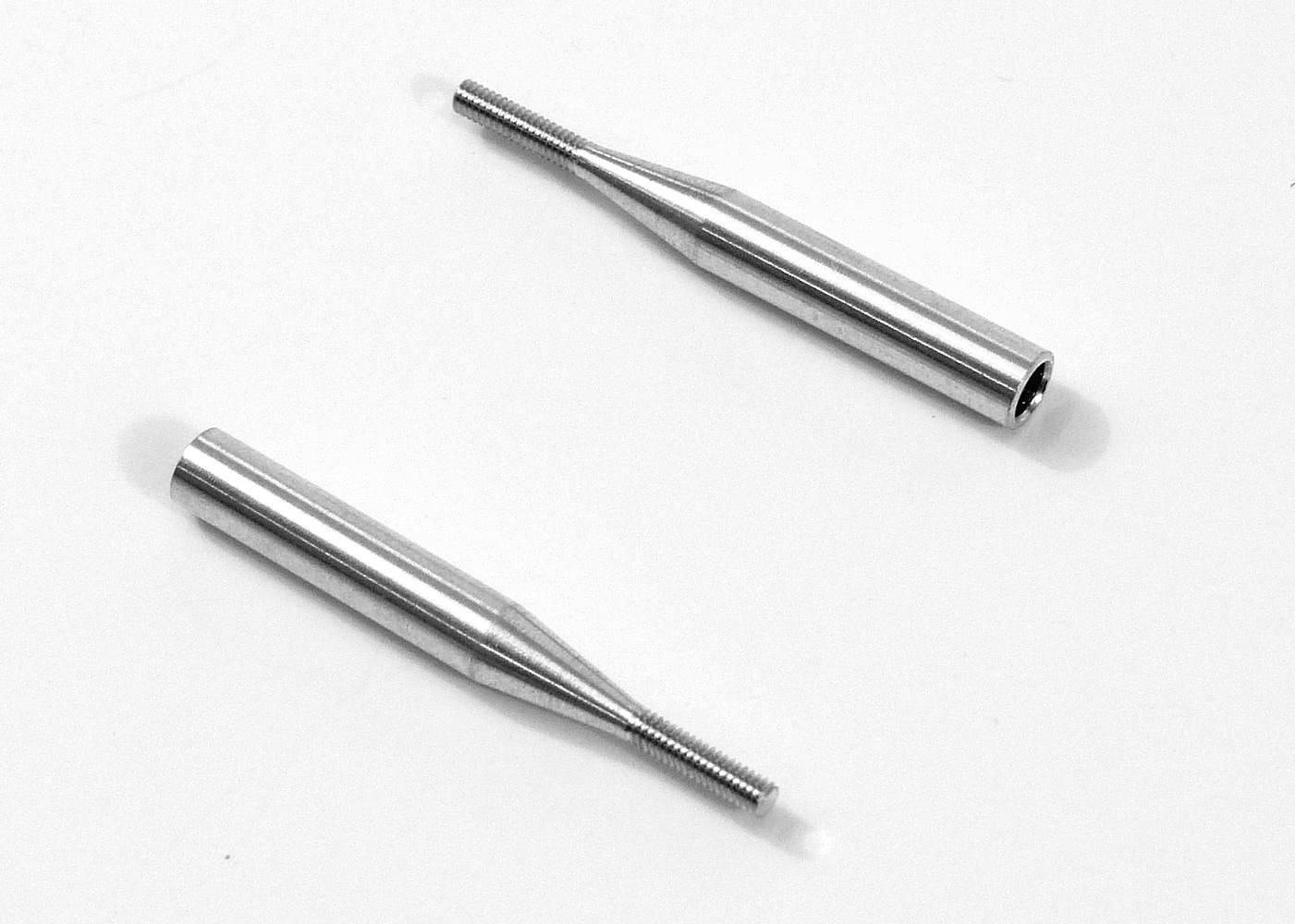

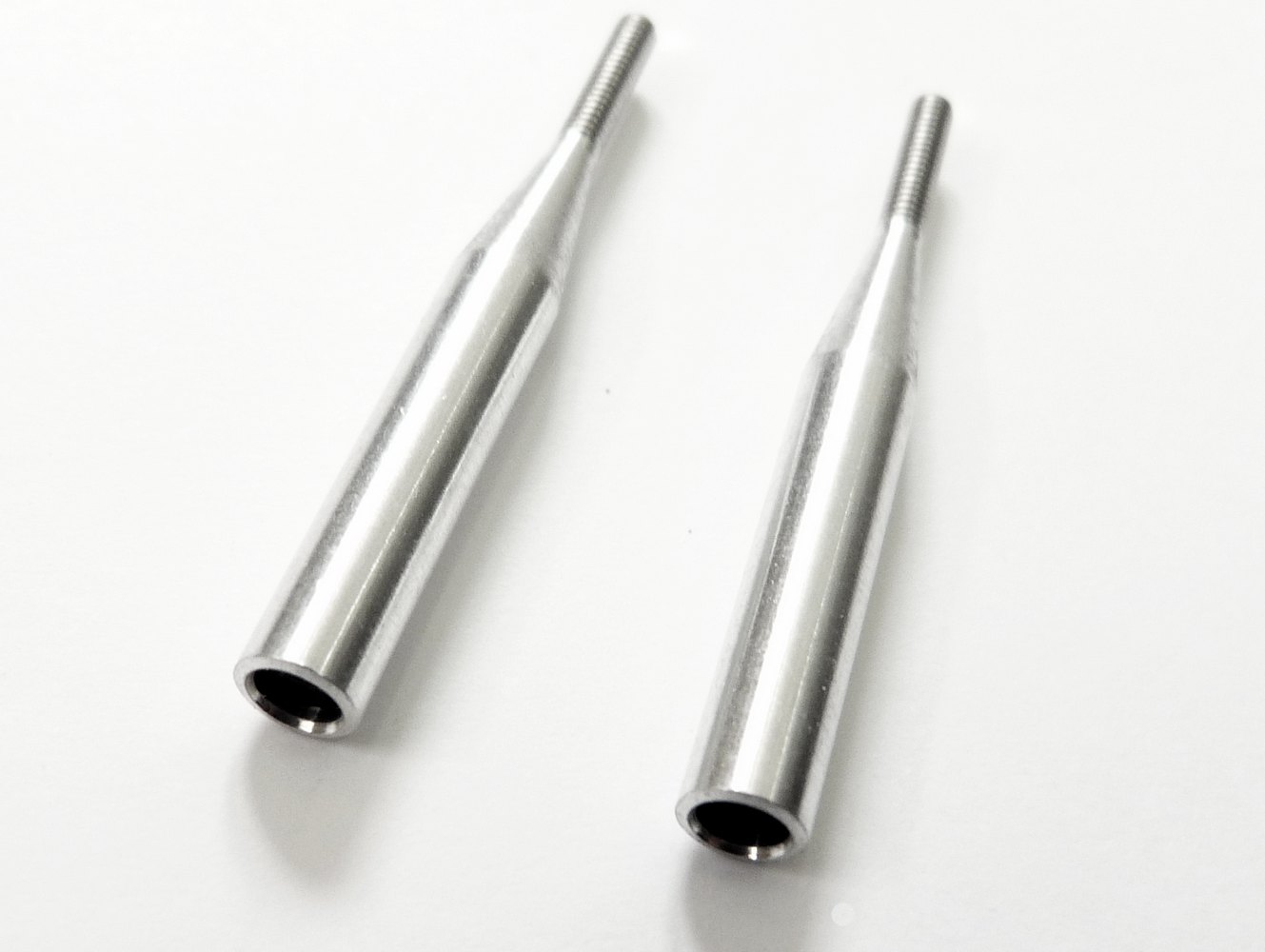

A pair of high quality aluminium pushrod ends with M2 threads cut at one end and a tube to take a 3mm carbon rod (or other material).
Note two aluminium pushrod ends only are supplied, carbon rods and clevises must be purchased separately. Suitable for 3 mm carbon tubes or rods. Glue using epoxy or thick CA. Degrease before gluing.
Note two aluminium pushrod ends only are supplied, carbon rods and clevises must be purchased separately. Suitable for 3 mm carbon tubes or rods. Glue using epoxy or thick CA. Degrease before gluing.
| 3mm Long Pushrod End Specification | |
|---|---|
| Pushrod hole size | 3.05 mm |
| Pushrod tube length | 19 mm |
| Threaded portion length | 9.0 mm |
| Overall length | 36.4 mm |
| Thread size | M2 |
| Weight (each) | 0.72 g |
Reviews 1
Pete W
UK
Great Quality & Service

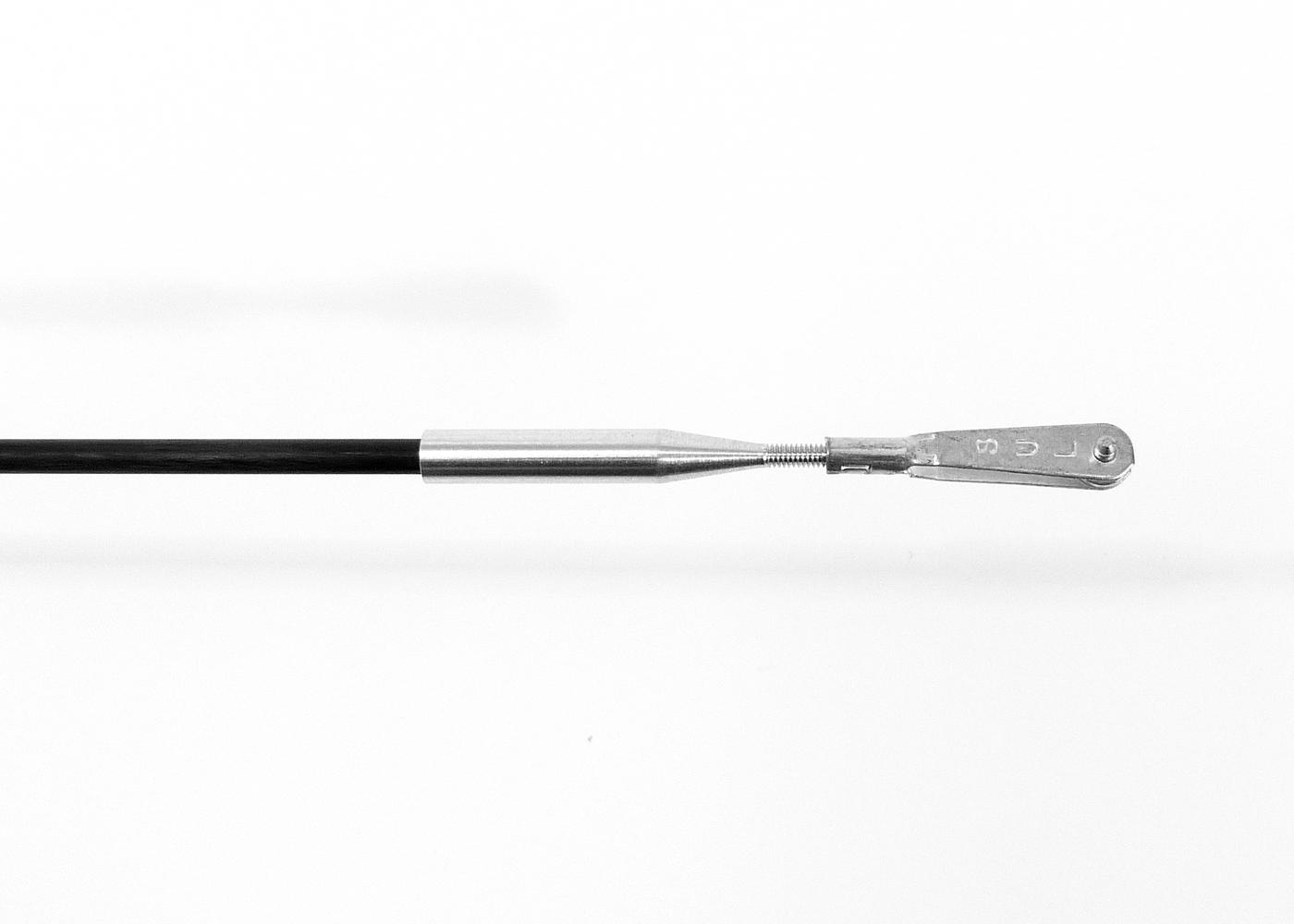

Great solution for making carbon push rods. I epoxy these to the end of a carbon rod. Finally coating the carbon rod and aluminium end with epoxy and heat shrink the assembly before the epoxy sets. This makes a strong end set up that will stand most if not all stresses.
