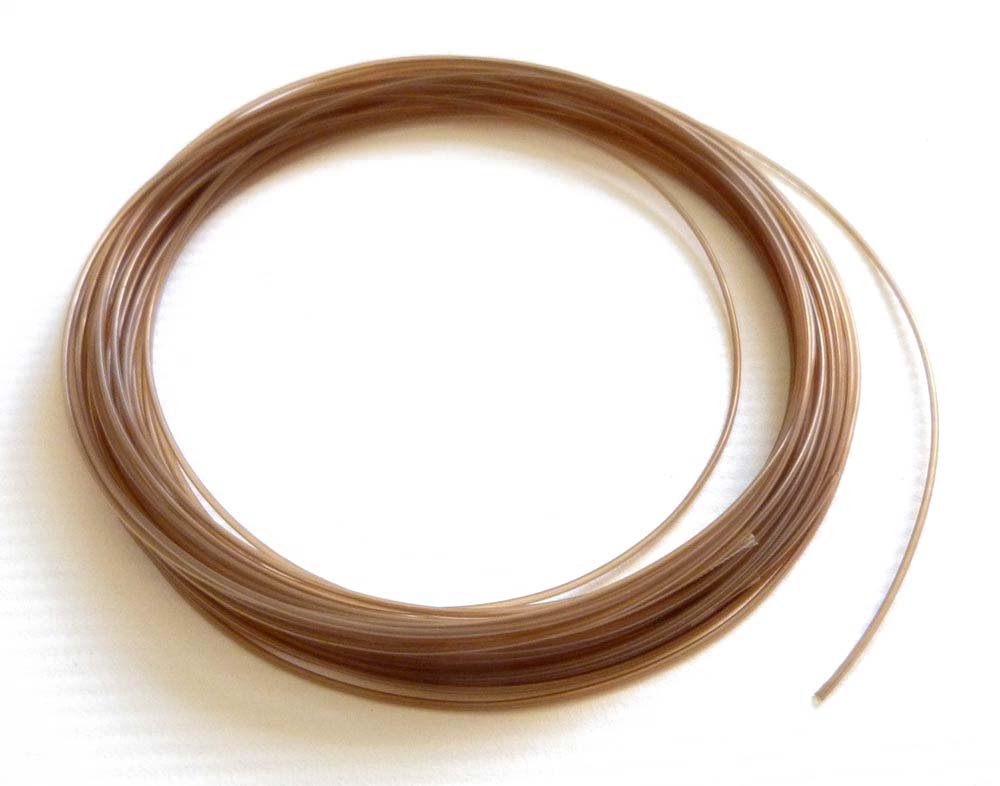

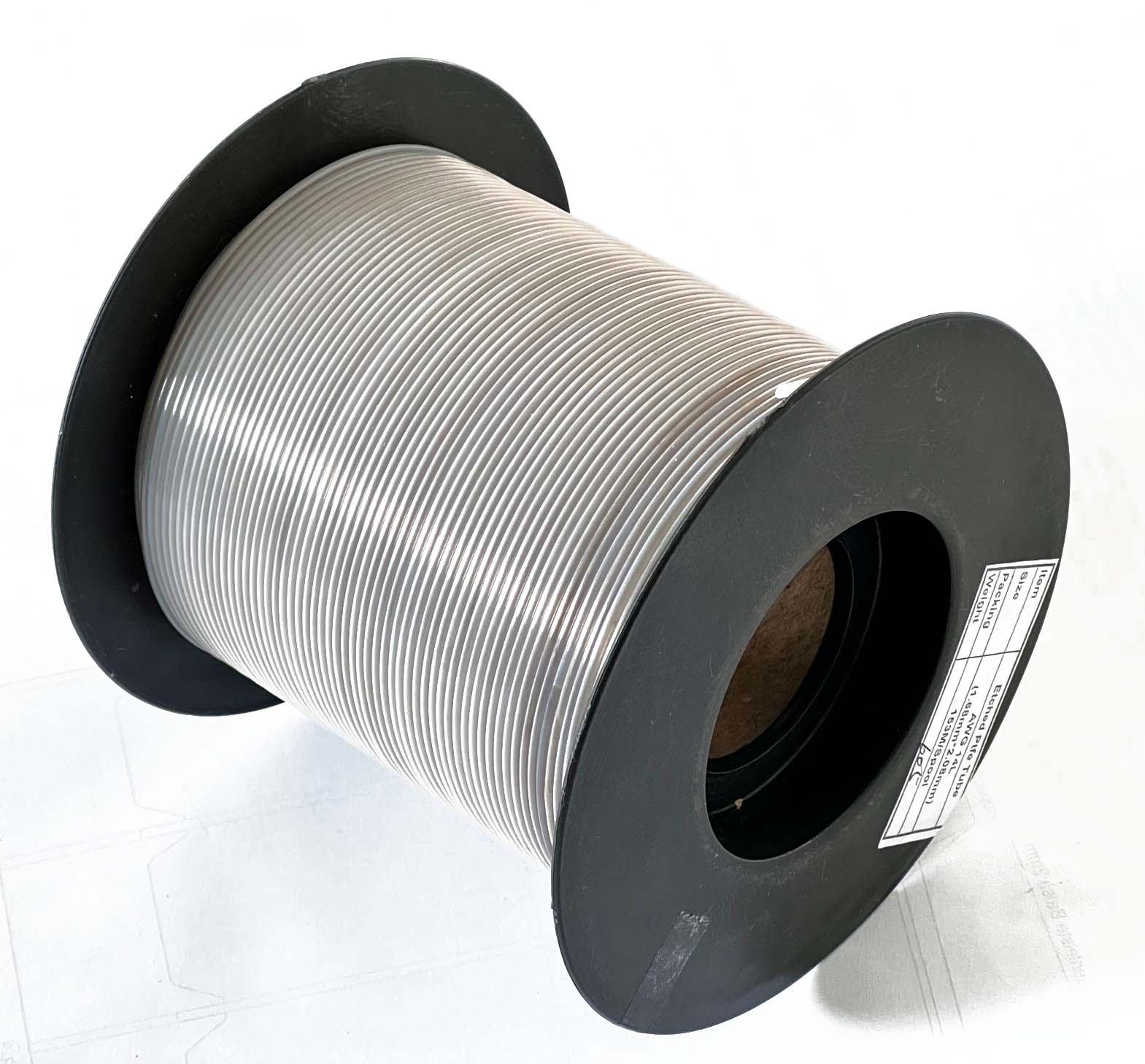

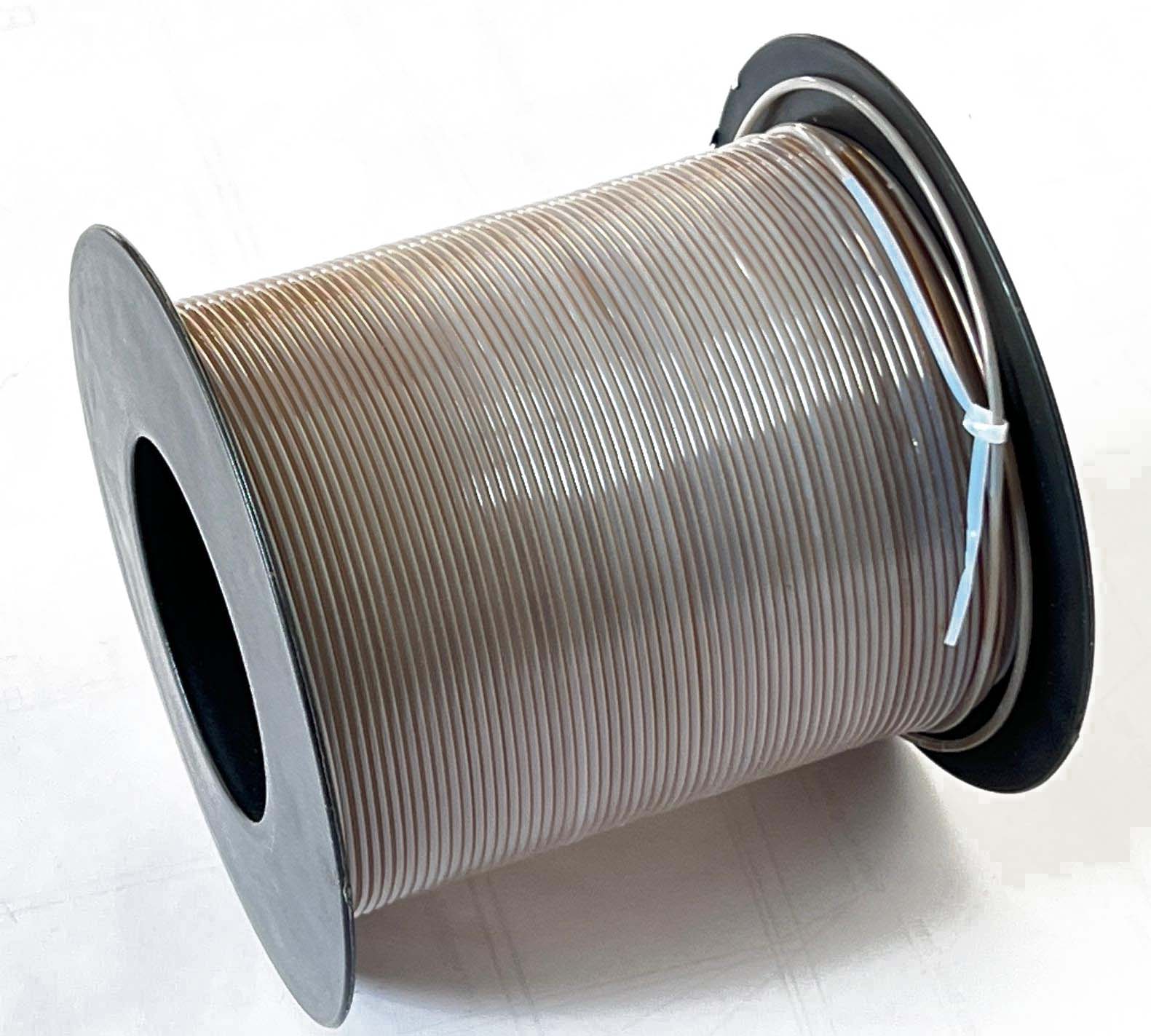

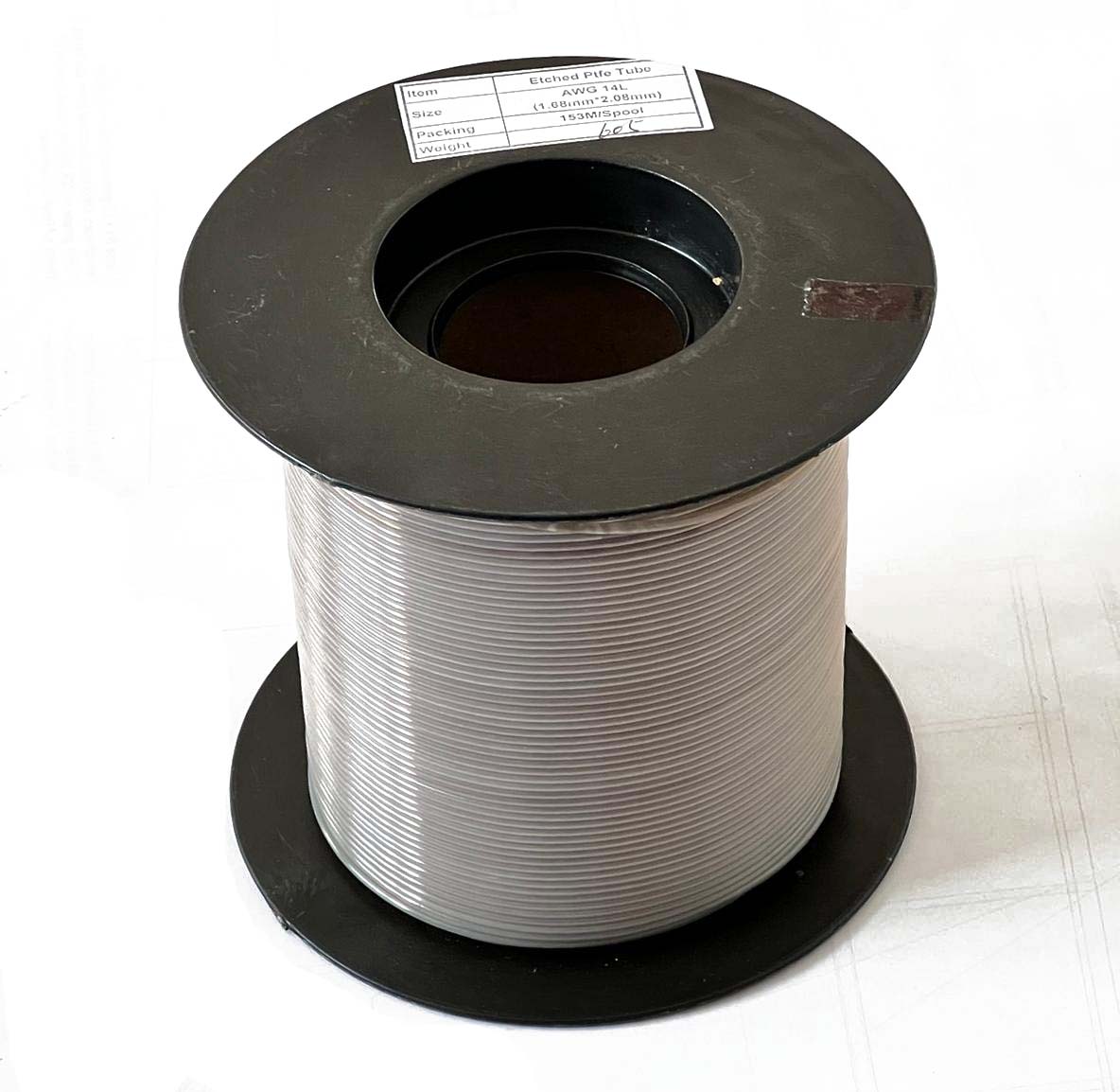

1 Roll (305m) 16L Etched PTFE
Description
305m low friction 1.34 mm ID PTFE tube suitable for pushrod outer tubes on gliders and other models. Also suitable for a large range of engineering and industrial uses.
This tubing is specially etched on the outside, making it easily bondable using many adhesives, thin CA being probably the best. Provides the lightest, easiest, most friction-free pushrod installations possible.
This tubing is specially etched on the outside, making it easily bondable using many adhesives, thin CA being probably the best. Provides the lightest, easiest, most friction-free pushrod installations possible.
| 16L Etched PTFE Tube Specification | ||
|---|---|---|
| Inside diameter | 1.34 mm | 0.053 in |
| Wall thickness | 0.16 mm | 0.006 in |
| Outside diameter | 1.7 mm | 0.067 in |
| Suggested inner | 1mm Carbon Rod | 18 SWG or thinner Piano or SS wire |
| US size | 16 AWG L type (Lightweight) | |
| Weight per m | 1.7 g per meter | |
| Length of tube | 305 m | |
| Number of joins | 5 max | |
