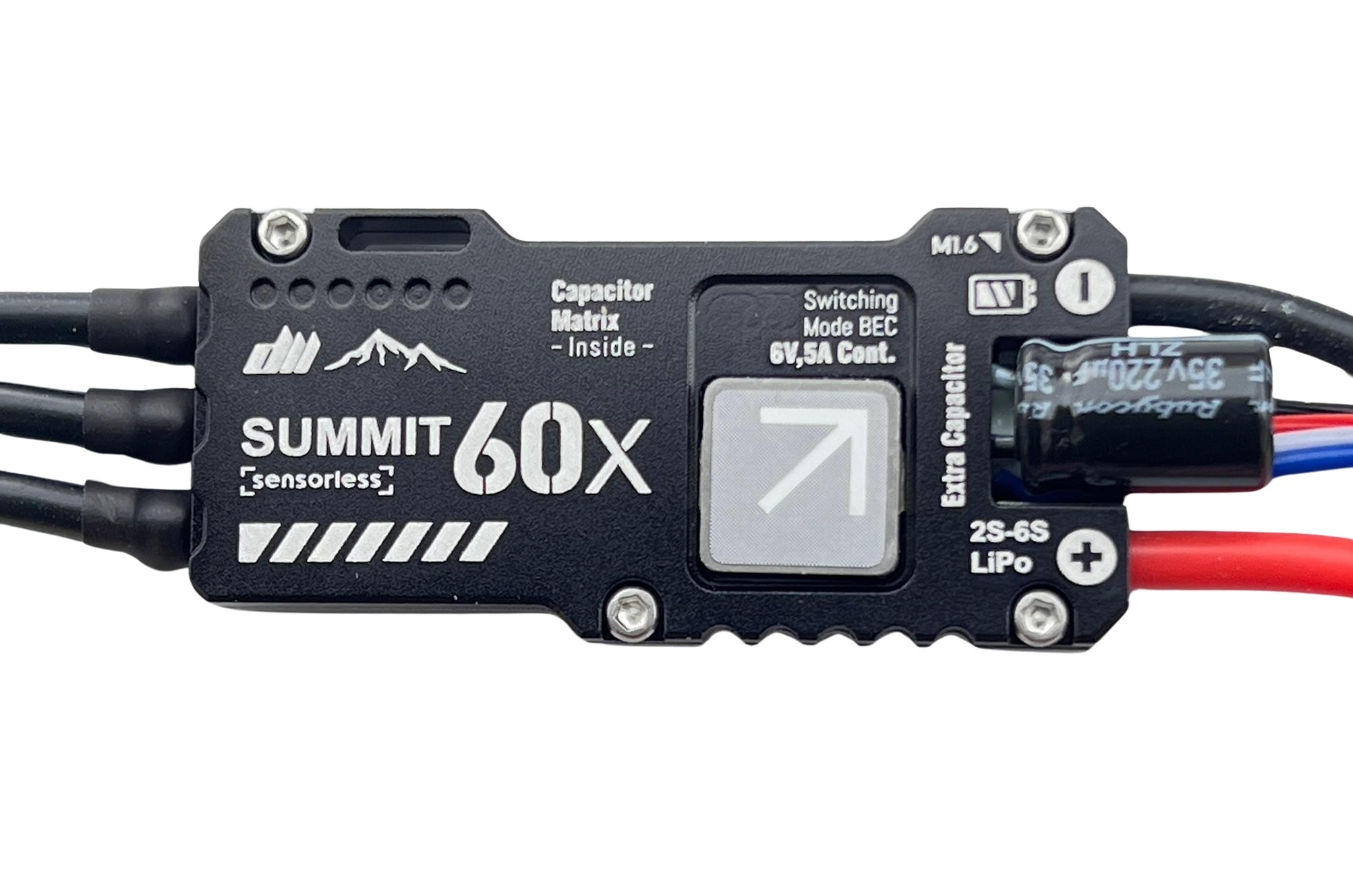

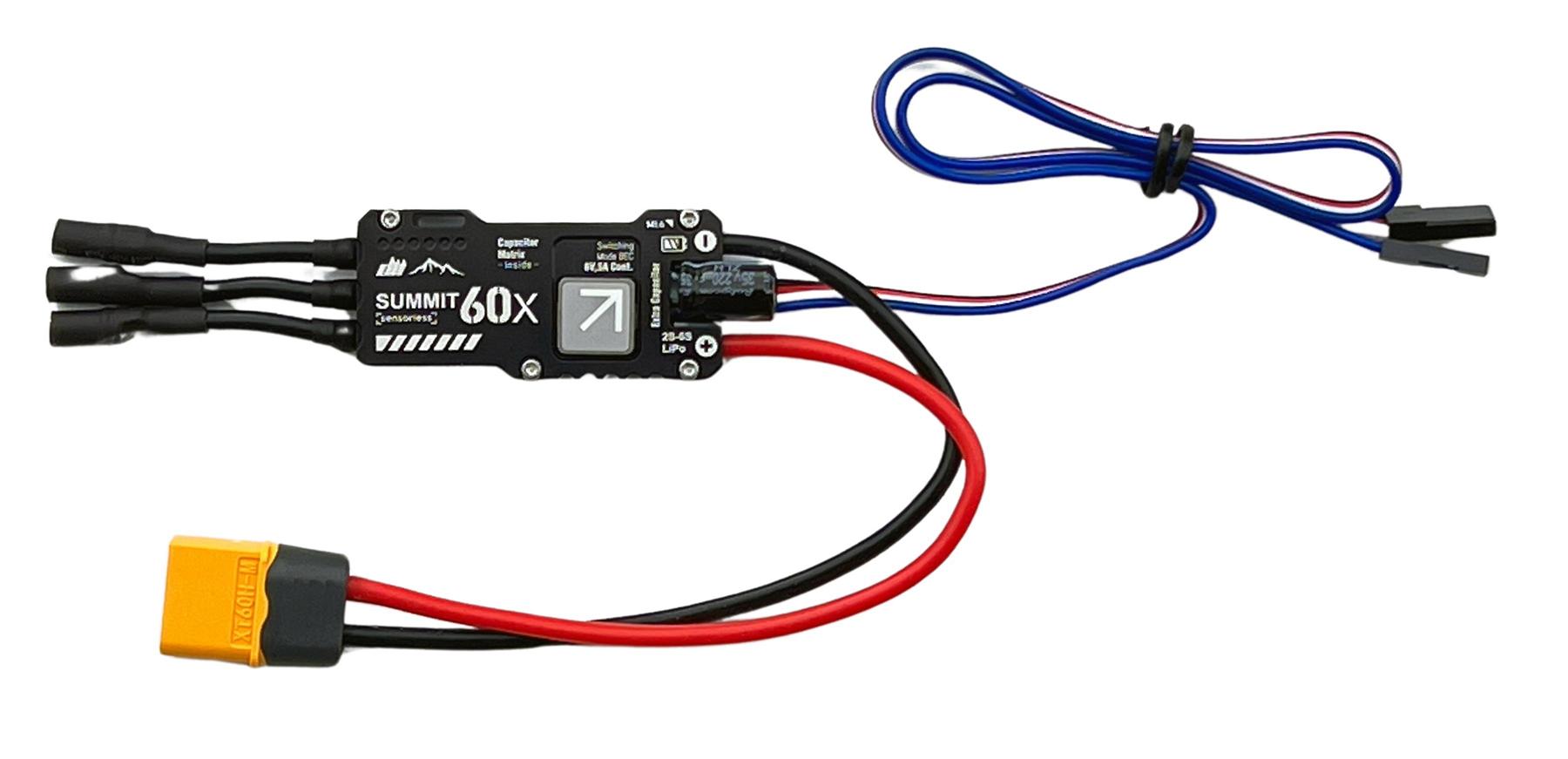

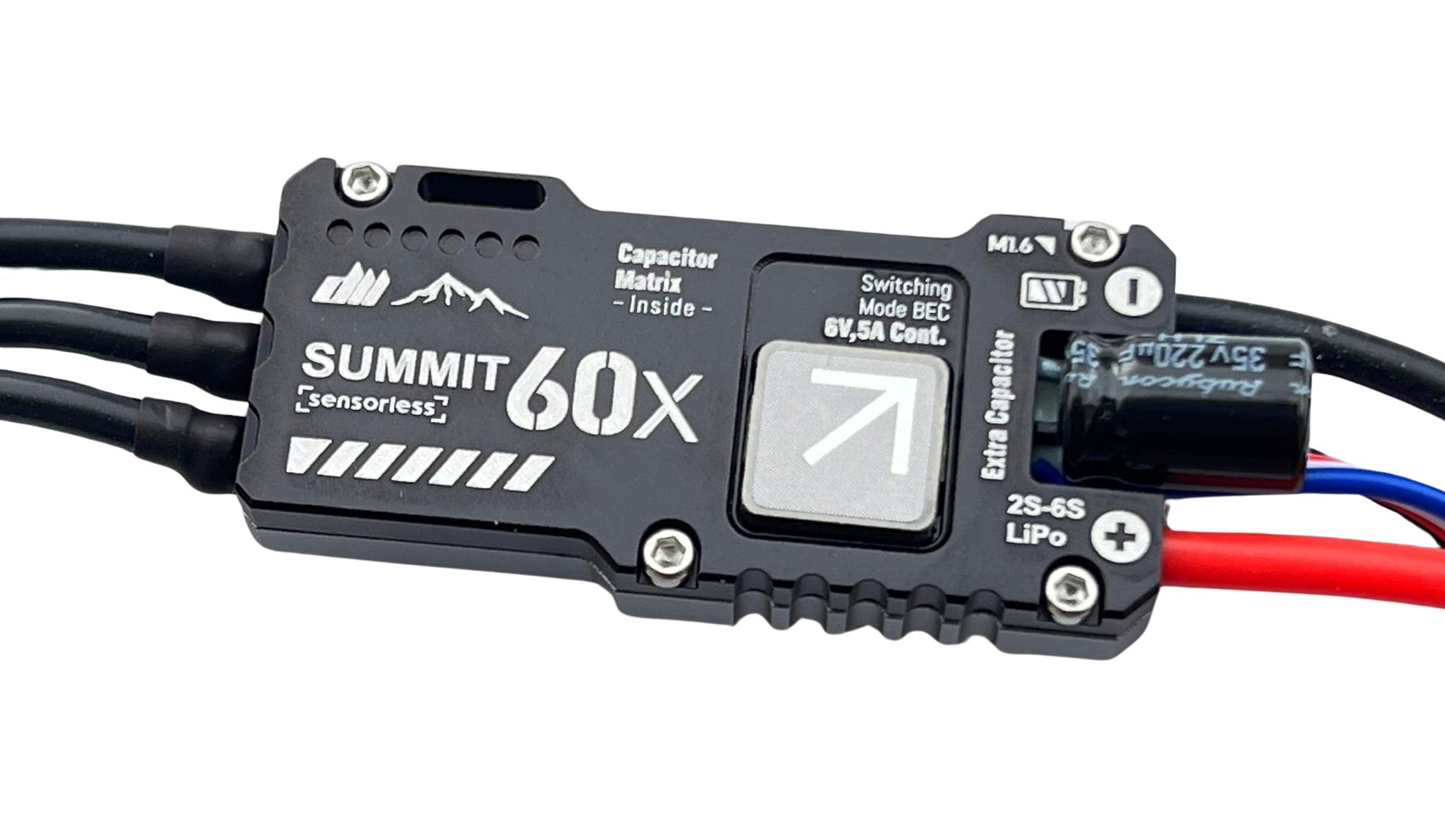

Dualsky SUMMIT 60X 6V SBEC ESC

The Dualsky SUMMIT 60XU6 is a high quality 60A ESC with an 6V 5A (10A peak) SBEC circuit. It can be used with most 5V and HV servos and is suitable for use with 2S-6S LiPo batteries.

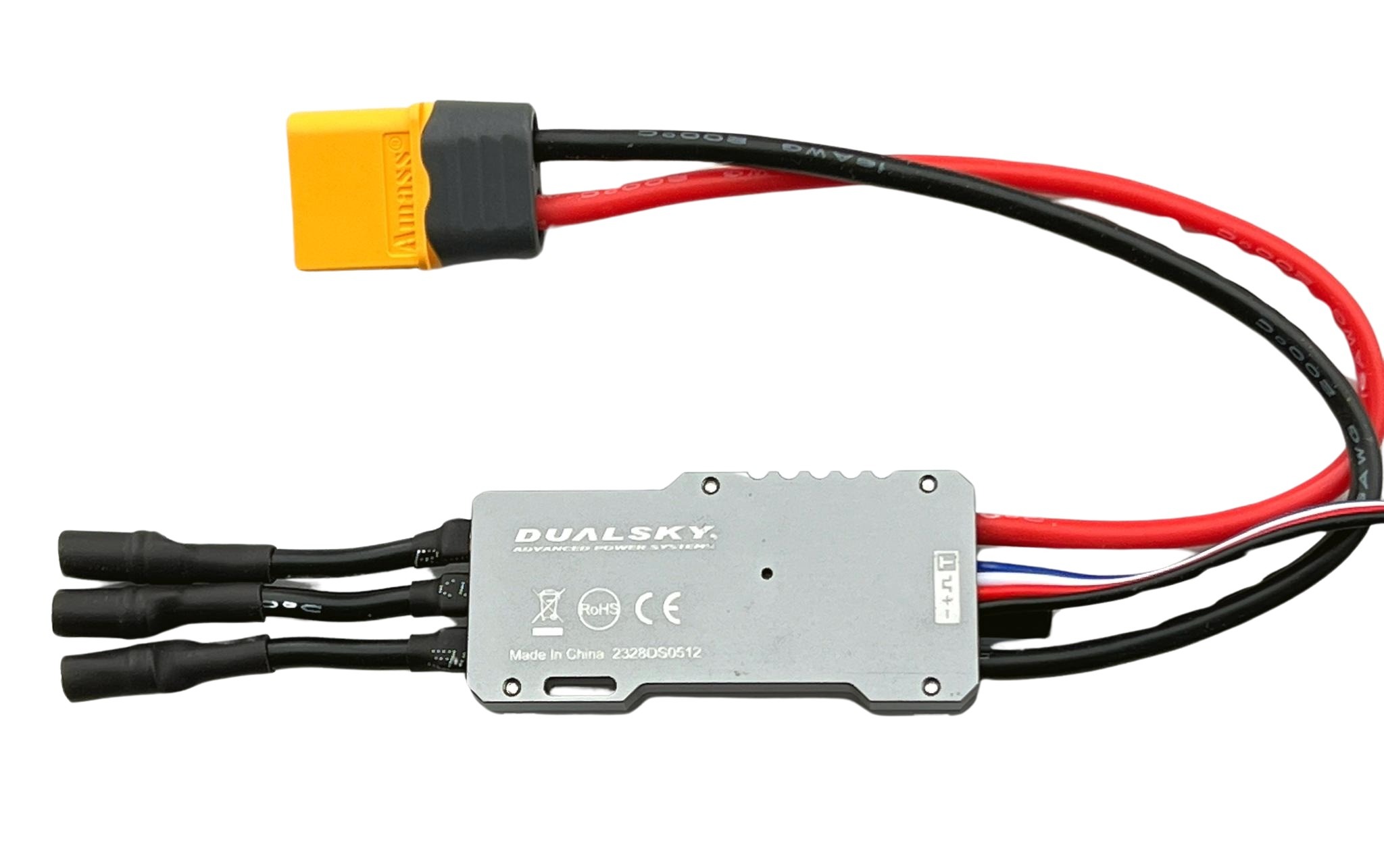

The Dualsky SUMMIT 60XU6 has a metal case for excellent heat dissipation but still only weighs 40g including wires. It is supplied with the brake ON, so no programming is required for glider use.

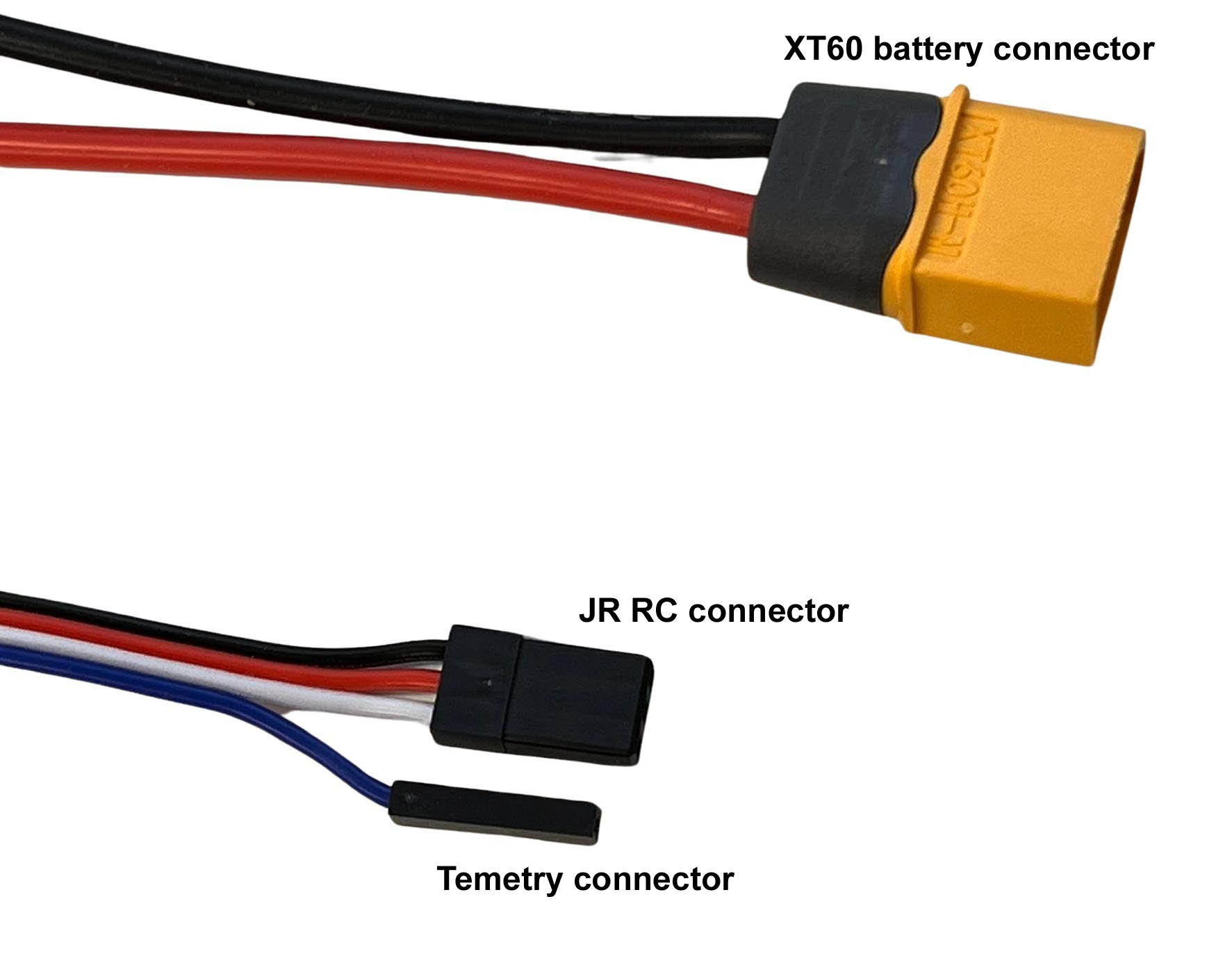

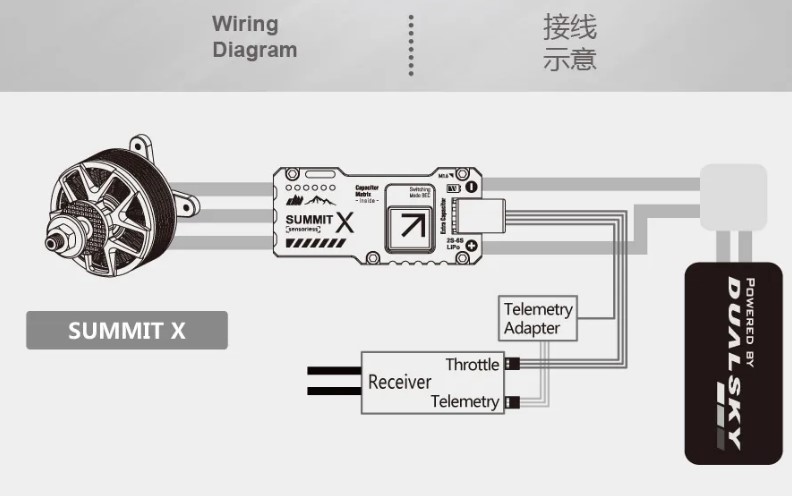

Telemetry is supported using the KIS 24A protocol and is output to a blue wire next to the RC plug. The data output includes:
Temperature - degrees C
Volatage - V
Current - A
Rotation speed - electrical RPM - divide by motor poles/2 to convert to mechanical RPM.

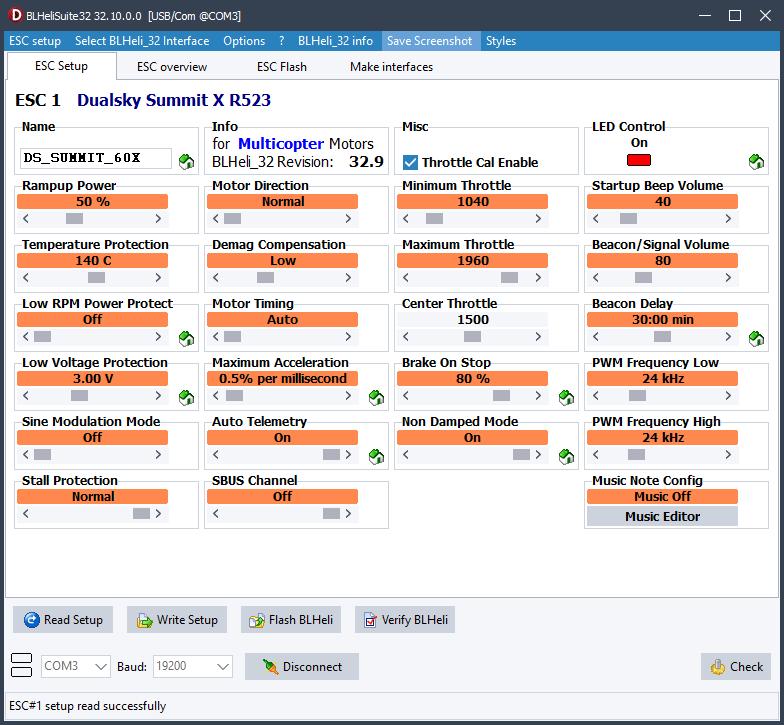

Like our acclaimed HyperFlight ESCs this Dualsky ESC uses BLHeli-32 firmare. This makes it very efficient and thus small. However it also means that a PC and an Aurdino Nano or a BL Heli USB Programming Interface is reqired to program it, if required.

Due to current supply issues newer versions of these speed controls may have been loaded with a developement version of the firmware and needs a special version of the the programmer called BLHeliSuite32Test. Please download the .zip file from here, unzip it and run BLHeliSuite32Test.exe to configure the speed control, if required.

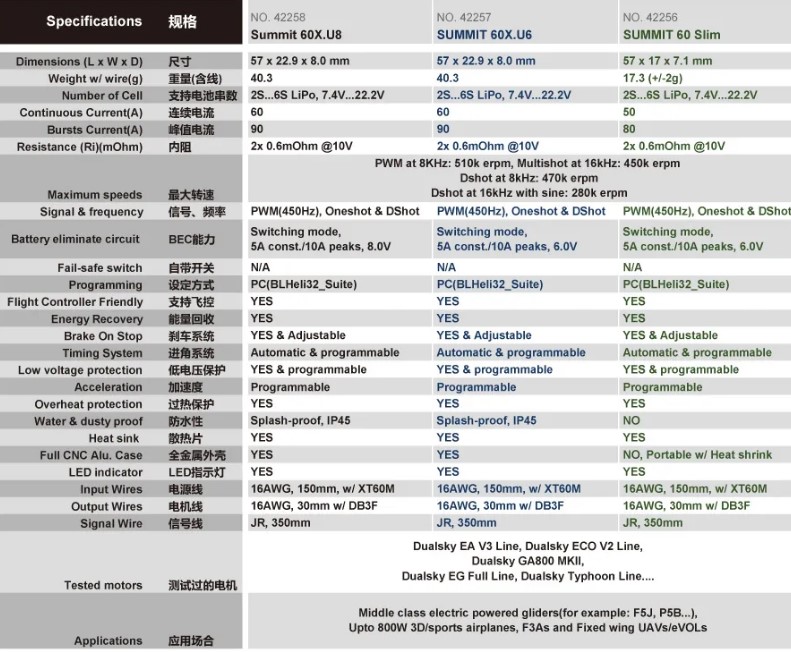

Dualsky Summit 60XU6 ESC Specification
Continuous current	60A
Burst current	90A
Battery	2S - 6S LiPo
SBEC	6V @ 5A, 10A peak
Weight inc leads and XT60 plug	40g
Firmware	BLHeli-32
Programmable	Yes, with an Arduino or our BLHELI-USBprog interface
PCB Size	50mm * 22mm
Battery connector	15 cm wires, XT60 plug/socket fitted
Motor connector	4 cm wires to 3.5mm sockets
RC wire length	35 cm
