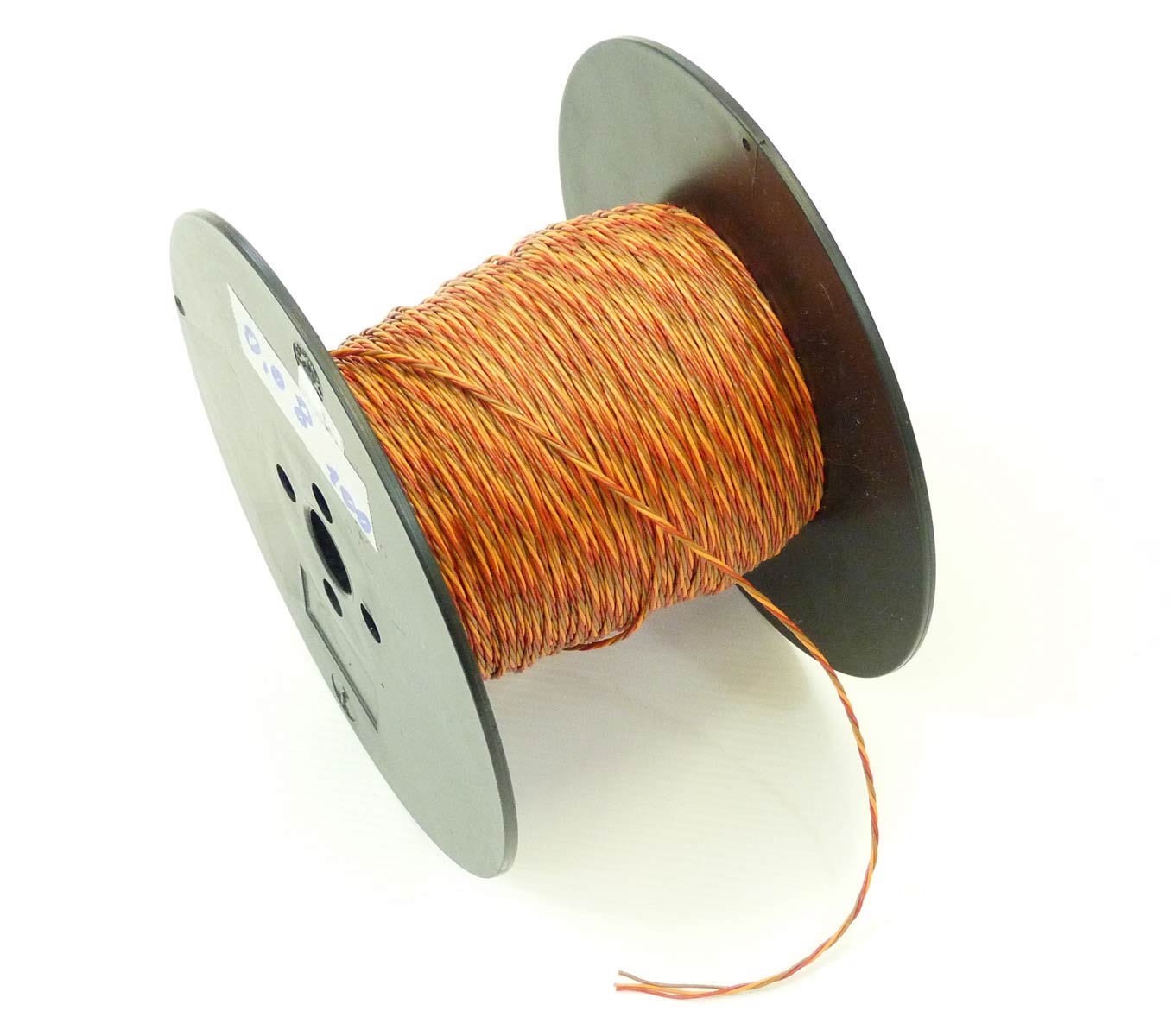

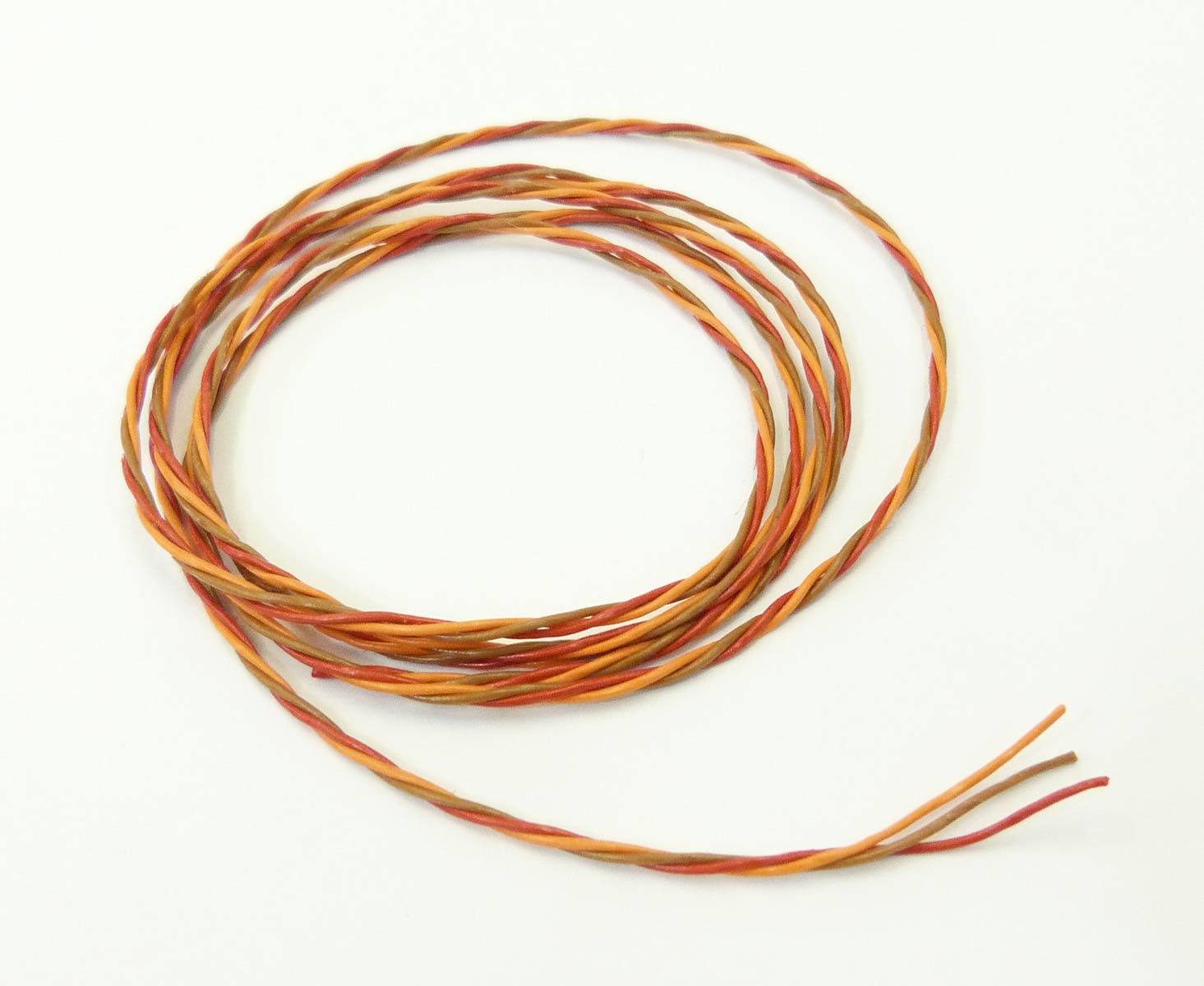

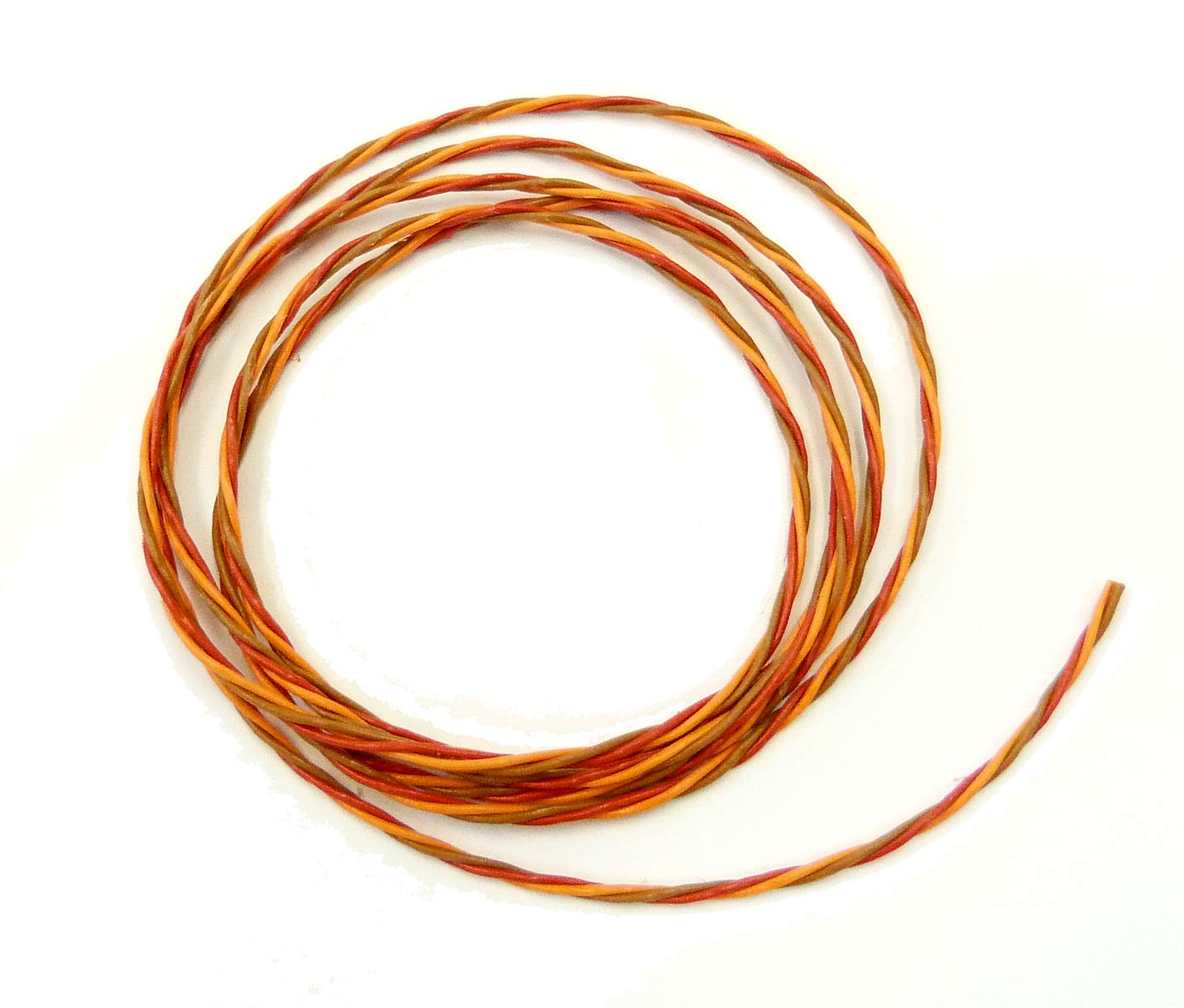

Ultra Light Servo Twisted Extension Cable 3.7 g/m
Description
Twisted extension leads suffer less from interference from other RF sources, reducing servo chatter and other RC problems. They also radiate less electromagnetic noise, reducing the likelihood of the extension leads causing interference.
Only weighs 3.7 g per meter for the servo cable (1.2 g per meter per wire). Sold by the meter. Enter a quantity of 5 for a 5 m length of servo wire.
| Ultra Lightweight Twisted Servo Extension Cable Specifications | |
|---|---|
| Number of conductors in cable | 3 |
| Area of each conductor | 0.08 mm2 |
| Conductor material | Copper |
| Number of wires in each conductor | 19 |
| Diameter of each wire | 0.07 mm |
| Weight per meter | 3.7 g |
| Resistance of each conductor | 0.43 Ohms/meter |
| Sheath material | PVC |
| Colours of wires | Red, brown, orange |
| Format | Three wire twisted cable |
| Servo Cable Colour Code | |||
|---|---|---|---|
| Usage | JR | Futaba | |
| Battery positive | + | Red | Red |
| Battery negative | - | Brown | Black |
| Servo signal | S | Orange | White |
Reviews 43
This wire is perfect for elevator/rudder servos mounted in the fin.Reduced weight aft of the cg equals less nose weight is required. Great stuff and super fast delivery as usual from Neil!
Do like this wire worth the fiddle regarding size but will use again great service
Great wire delighted with it, but it took 4 weeks to show up in Ireland
Used in my F5J Inside wiring. this was my second order for servo wire. Easy to work with and very light. Easy to strip/solder and easily carries the current for my Bluebird servos. Quick deliver as always with Hyperflight.
I bought this wire for DLG wiring harness - wing servos to Rx in nose. Etc.
Excellent for this purpose as it is Very flexible and lightweight.
I also like that it is twisted as helps to avoid any RF noise for extended servo wiring in a compact fuselage (DLG)
Came well packed and arrived in 8 days to Australia! Amazing.
I will be buying more products from Hyperflight.
Very flexible due to the high number of strands (18?), super light, and easy to route through a wing. Not sure if it’s necessary, but I doubled it over before crimping on the plugs. A good product which arrived the day after I’d ordered it! Brilliant!
Very flexible due to the high number of strands (18?), super light, and easy to route through a wing. Not sure if it’s necessary, but I doubled it over before crimping on the plugs. A good product which arrived the day after I’d ordered it! Brilliant!
Got this to run through the wings of a Pulsar 2.5m sailplane...Flexible and light weight!!
Just as described and a good product, but I made the mistake of tacking the cable down with cyano (super glue) and this dissolves the insulation which caused a massive own goal!
La spedizione in Italia è arrivata nei tempi dichiarati ,il prodotto vale e superiore ad altri della stessa categoria ad un prezzo ottimo.
Top notch wire for running through wings and fuselages to the tail!!!...Got here in Southern California in 6 days!!...Yayyyy!!!!!!!!!!!!
Arrived promptly and well packed. Good quality fine multi stranded wire tins easily
Arrived promptly and well packed. Good quality fine multi stranded wire tins easily
Service was prompt and product is exactly what I was after. And high quality. I highly recommend Hyperflight.
I am in the USA and ordered few feet of this to extend some small 4 gram servo leads and it works perfectely. Great wire: thin and lots of strands so very flexable.
Easy to crimp and solder without the insulation creapoing as on some cheaper wire I have had in the past as well. Also the shipping was great from my order date to me in less than 8 days! Shipping cost was very resonable and they used Airmail so delivery tine was fantanstic. I have had items ordered from suppliers in the USA take far longer than that! Will not hesitate to order from them again. Quality product and fantanstic service.
0.71mm ID Etched PTFEE
I ordered 10 meters of Ultra Light Servo Twisted Extension Cable to be shipped to my home in USA. I expected high postage and a long wait time. To my surprise postage was minimal and it arrived in about 10 days even though the US postal service seems to be going through a meltdown. The quality of the cable is excellent and will help reduce weight in my sailplane.
Quite fast delivery to the Netherlands. Great product.
It arrived the next day. Perfect for My sunbird wiring harness as well as my latest F5j.
Very flexible and good quality.
It is a very good wire, ultra light and flexible.
A1 service and shipping, goods arrived well packaged in a sturdy cardboard container. High quality product, the essence of "ultra light". Thank you, Neil.
Good product. Ideal for extending servo leads for multi-servo wings at minimum weight penalty.
Excellent, right choice to have good performance and save weight.
Good wire to save some weight! Use it in all my gliders! (to power my ds 6100 servo's)
Exactly as described. Ideal for long cable runs and very lightweight too. Soldered easily rather than crimping.
Service and delivery was spot on so was able to build my indoor 3D in time for our indoor session.
Excellent quality lightweight cable of sufficient gauge to ensure successful terminal crimping. Ideal for lighter models where longer wing or tail servo extensions are being required.
Ultra light and very strong. Excellent for ultra lights dlg.
This product is exactly as described -- a very light, flexible, and small. It is perfect for servo leads in small aircraft. Just keep in mind that it has limited current capability so should not be used for larger, high-power servos. But for its intended purpose, it is superb.
Best ultralight servo wire, very light and easy to crimp and solder.
Ultra light servo extension cable being used on a 2mtr carbon glider. The product is ideal. Fast and easy service from Hyperflight.
Muy bueno para el cableado de las alas, ligero y flexible.
Y el servicio por parte de Hyperflight, excelente.
First time iv'e used this .Nice & light especially on long runs inside body & wing panels
Lightweight and very flexible. Very nice wire for sailplane wire harnesses.
Had used this before for wiring up some models and found it easier to use than standard wiring, as being smaller gauge, is easier to solder to 9 pin plugs as it gives more room around the pins.
Only problem I had was when I wanted some more, it was out of stock, but having filled in the piece to notify me when it was in stock again, did not get any contact to say it was in. Had to find out from the site when it was in again, when ordered it turned up promptly as ever.
Top quality light weight cable, just the job for my 2m glider. Easy payment and fast service.
What a great quality product! When you're after those extra grams it all counts and for the AVA Pro it proved to be a huge benefit.
And I must say what a wonderful Company to deal with. Being way down the end of the world in Sydney Australia how refreshing to find a service that is World Class. I wish that some of our local Modelling Shops would take note. Neil drives the business like a Man possessed!
They have my business.
Woodie
Excellent servo cable, very light, to be used in my F3J glider.
Very good service and quick delivery from hyperflight.
Greetz.
Very light weight, too thin for my crimping tool to grip on so needed a drop of solder.
