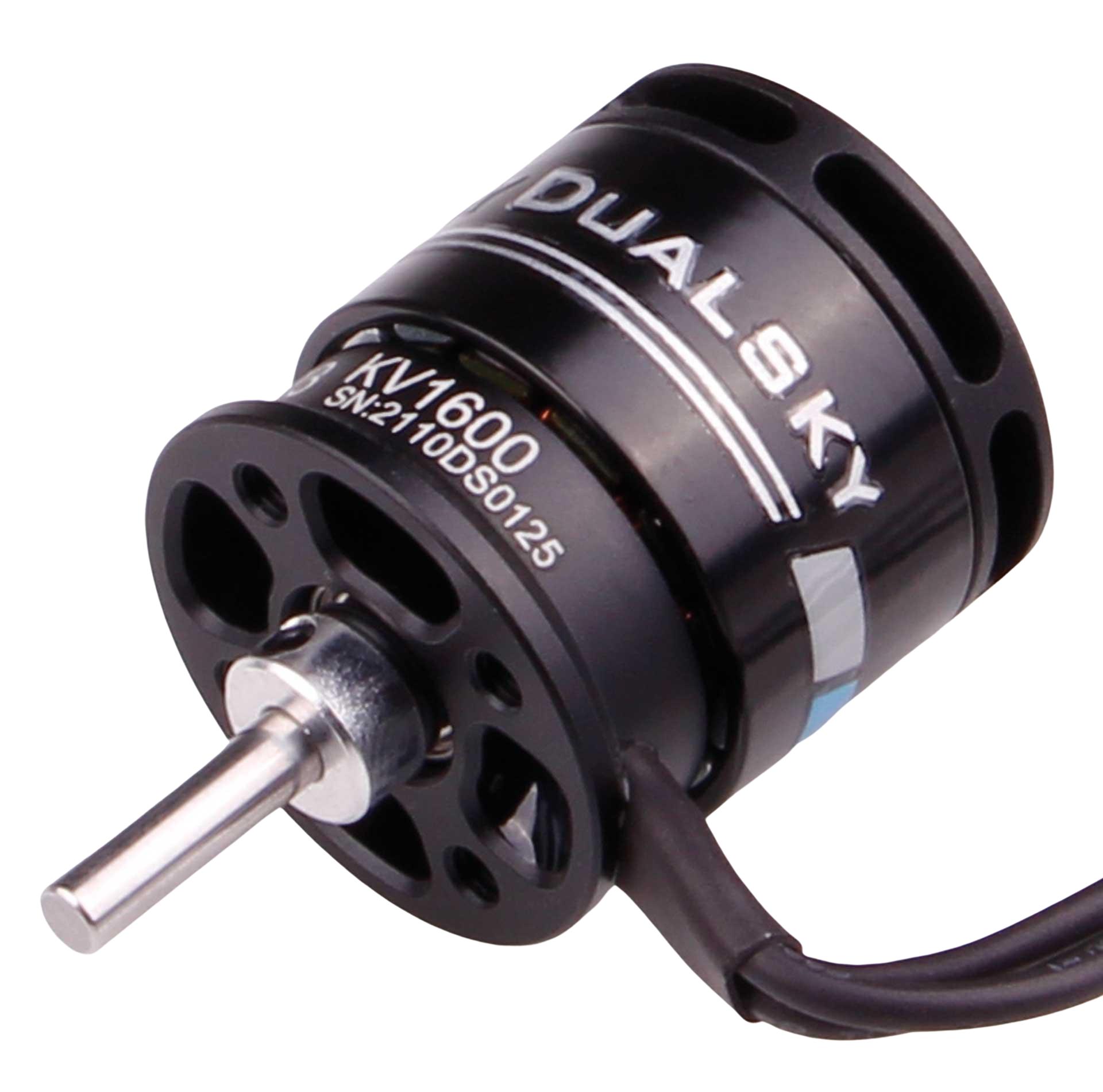

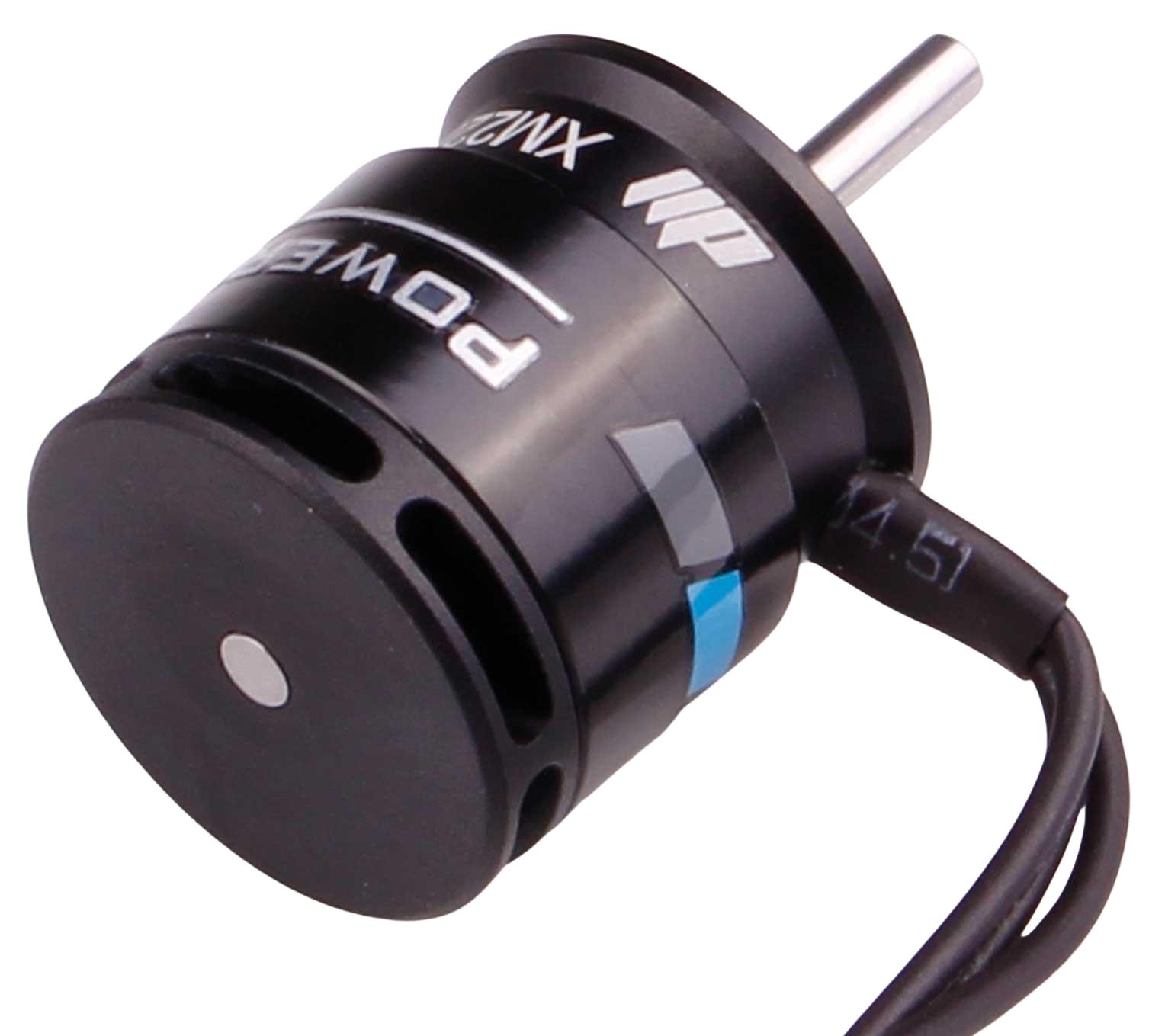

Dualsky XM2225EG-23 1600 RPM/V 32g Outrunner
Description
The Dualsky XM2225EG-23 is a high quality outrunner for models weighing 200 - 600g.

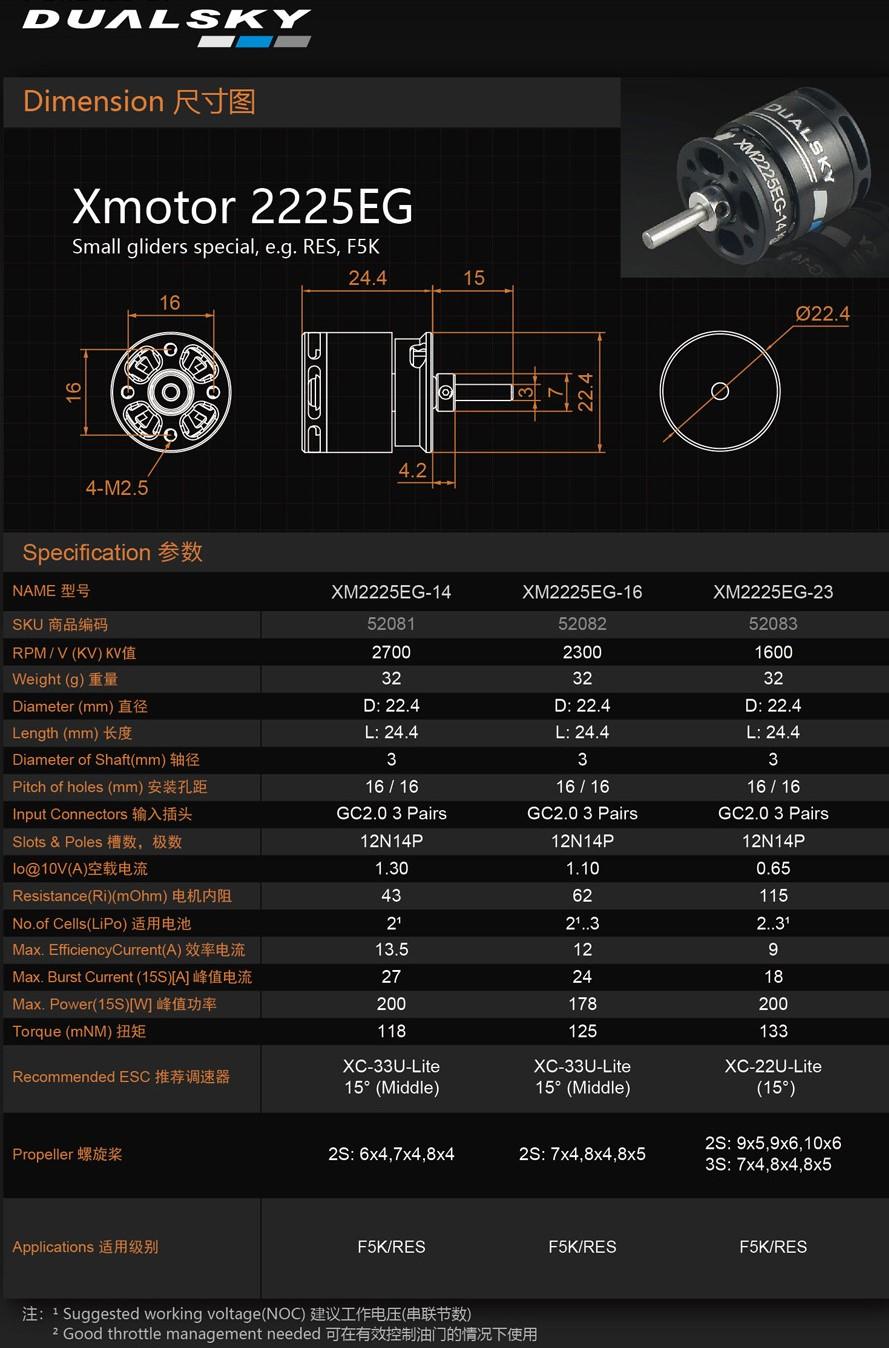

3mm shaft. See images for full specifications.
Recommended props:
2S LiPo: 9x5, 10x5, 10x6
3S LiPo: 7x4, 8x4, 8x5
This is a popular set up for 2m RES models:
Motor: DualSky XM2225EG-23 1600KV
Prop: GM 9x6 or CN 9x7 on a GM 30mm spinner with 3mm collet
Battery: 3 cell 600mAh - 800 mAh LiPo
ESC: HyperFlight 30A BLHeli32.
3mm shaft. See images for full specifications.
Recommended props:
2S LiPo: 9x5, 10x5, 10x6
3S LiPo: 7x4, 8x4, 8x5
This is a popular set up for 2m RES models:
Motor: DualSky XM2225EG-23 1600KV
Prop: GM 9x6 or CN 9x7 on a GM 30mm spinner with 3mm collet
Battery: 3 cell 600mAh - 800 mAh LiPo
ESC: HyperFlight 30A BLHeli32.
Reviews 3
Sheepish
UK
Compact direct drive motor
Bought for an F5L RES build.
Fits perfectly in an electric Slite fuselage which is not the largest!
Not flight tested yet but all looks great so far with the usual great service from Hyperflight when I managed to order the wrong KV version which Neil put right with no fuss.
U2builder
UK
Great motor for 2m RES gliders
The Dualsky XM2225EG-23 1600 RPM is a great motor many 2m RES gliders that are designed for 30mm spinners and one of the few that can be made to fit. It is quite a bit more powerful and more efficient than DYS 2225-19 alternative and lighter than the geared Hacker options.
