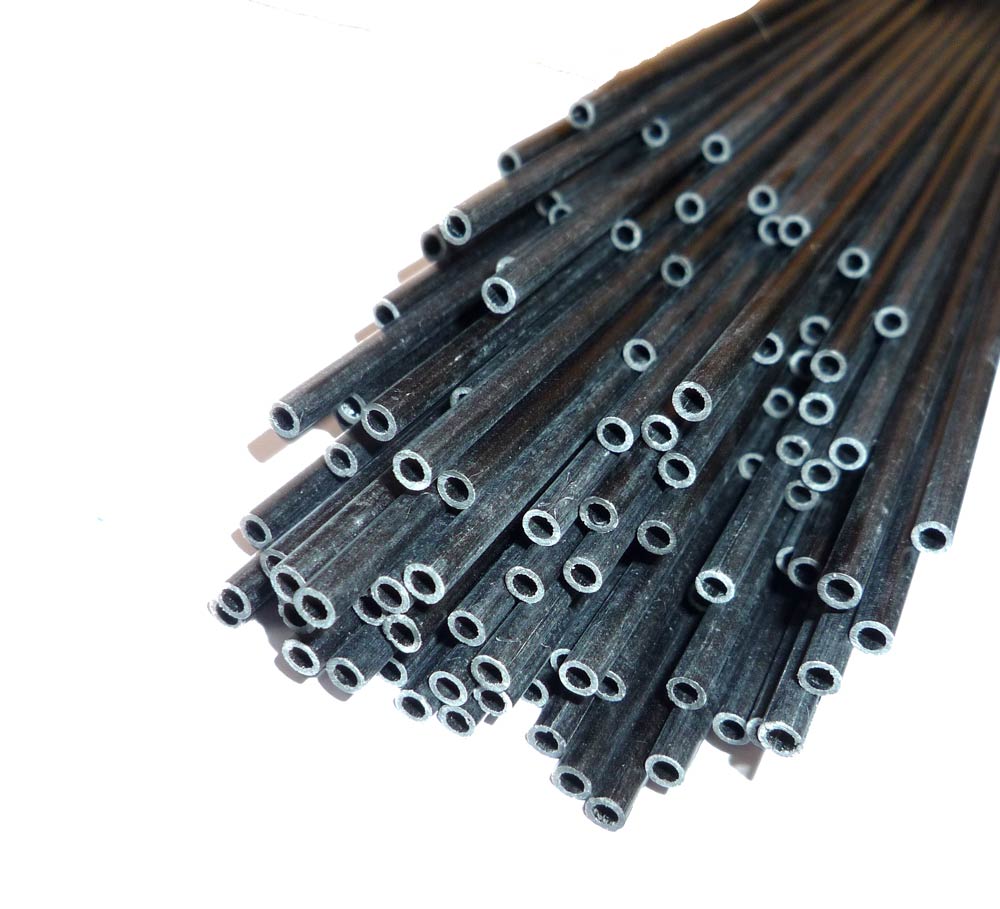

10mm Carbon Tube (9mm ID)

10.0 mm diameter high modulus carbon fiber tube available in various lengths. These pultruded tubes have a high fibre content of high modulus carbon fiber in an epoxy matrix, making them extremely rigid and strong.

Select the required length using the radio buttons below the price.

10.0 mm Carbon Fiber Tube Specification
Outside diameter	10.0 mm
Inside diameter	9.0 mm
Weight per m	24.0 g per meter
Length	See the options below the price
Structural material	T300 carbon fibers
Matrix	Epoxy resin
Carbon content	Approx. 60%
Youngs Modulus	230 GPa
Ultimate tensile strength	1600-2300 mPa
Fibre density	1.4 - 1.8 g/cm3
Resin glass transition Tg	170º C
Packing type	Rigid-usually sent in a postal tube

Due to dimensional variability our 9.0 mm carbon rods and 9.0 mm OD carbon tubes will probably not fit in these tubes without material being removed.

Postal Charges

England, Wales & Scottish Lowlands
75 cm items will be sent in a postal tube by Royal Mail. 150 cm items will be sent in a long postal tube by courier - this increases the postal cost.

UK Islands, NI & Scottish Highlands
All items will be cut down to 75 cm length and sent by Royal Mail unless this postal charge is added to the basket.

Europe and Rest of the World
75 cm long items will be sent by Airmail post at low cost. Longer items will be sent by courier - this will increase the shipping charge considerably.

If even numbers of 75 cm long items are ordered we reserve the right to send half the number of 150 cm items to simplify packing.
