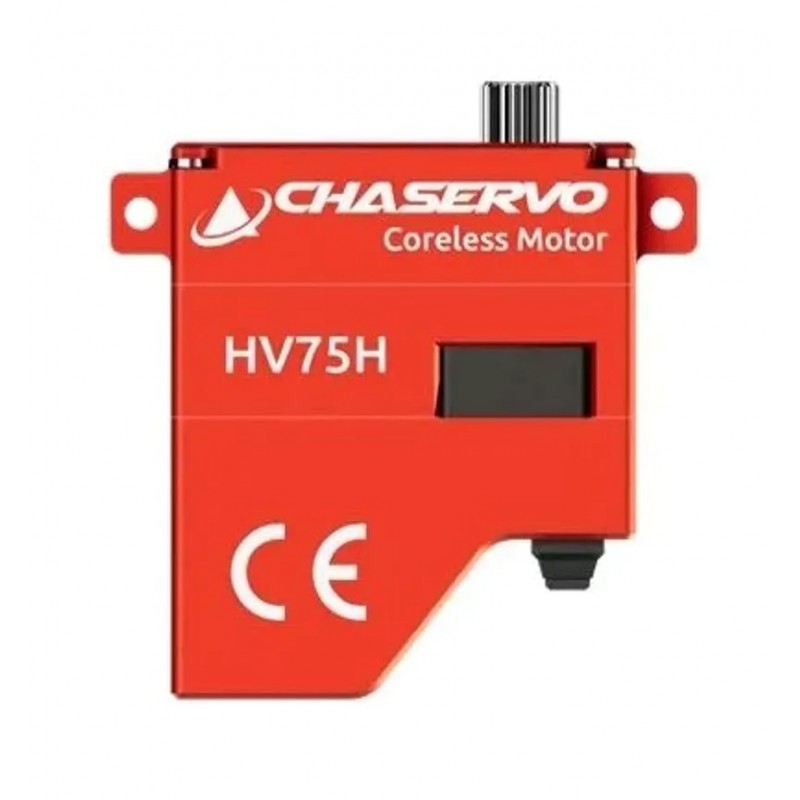

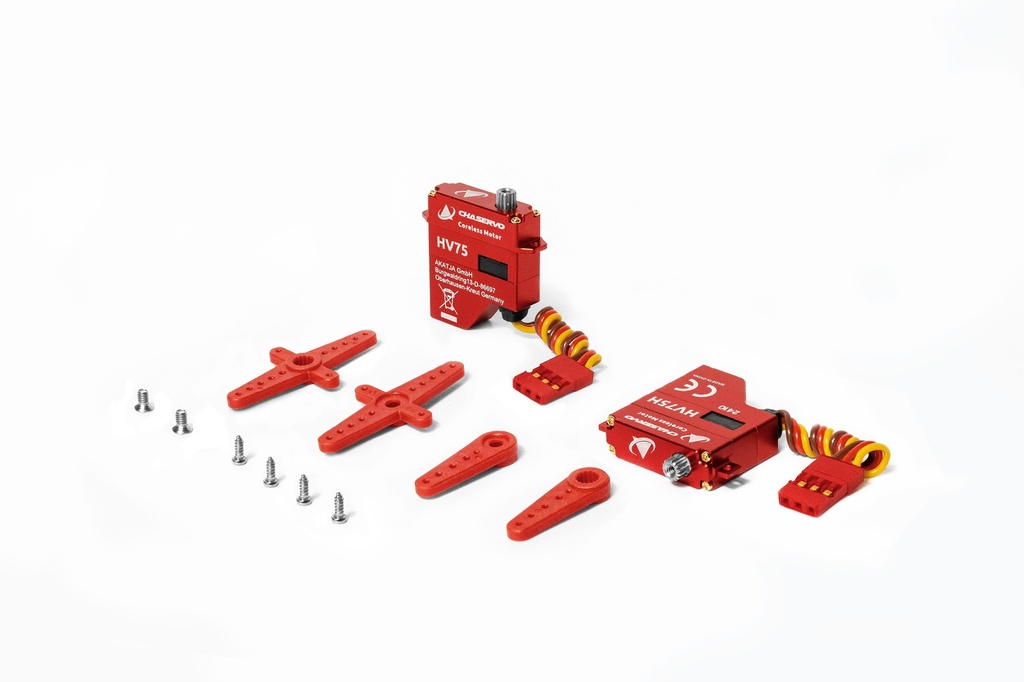

CHA HV75H Wing Servo
Description
The CHA HV75H is a wonderful new wing servo, only 7.5mm thick and with a torque of 7.5Kg.cm.
This version has horizontal lugs for wing mounting.
Specifications
Dimensions: 23 x 7.5 x 27.5 mm
Weight: 0.42 oz (12 g)
Rated Voltage: DC 7.4V
Voltage Range: DC 4.8 – 8.4V
Output Shaft Spline: 15T, 4mm
Position sensor: Potentiometer
Motor: Coreless DC
Working Frequency: 1520µs/333KHz
Pulse Range: 900µs-2100µs
Programmable: Yes
Case Material: Aluminium
Gear Set Material: metal gears
Holding Torque
Holding Torque @ 6.0V: 4.5 kg·cm
Holding Torque @ 7.4V: 6.0 kg·cm
Holding Torque @ 8.4V: 6.5 kg·cm
No-load Speed
No-load Speed @ 6.0V: 0.13sec/60°
No-load Speed @ 7.4V: 0.10sec/60°
No-load Speed @ 8.4V: 0.09sec/60°
This version has horizontal lugs for wing mounting.
Specifications
Dimensions: 23 x 7.5 x 27.5 mm
Weight: 0.42 oz (12 g)
Rated Voltage: DC 7.4V
Voltage Range: DC 4.8 – 8.4V
Output Shaft Spline: 15T, 4mm
Position sensor: Potentiometer
Motor: Coreless DC
Working Frequency: 1520µs/333KHz
Pulse Range: 900µs-2100µs
Programmable: Yes
Case Material: Aluminium
Gear Set Material: metal gears
Holding Torque
Holding Torque @ 6.0V: 4.5 kg·cm
Holding Torque @ 7.4V: 6.0 kg·cm
Holding Torque @ 8.4V: 6.5 kg·cm
No-load Speed
No-load Speed @ 6.0V: 0.13sec/60°
No-load Speed @ 7.4V: 0.10sec/60°
No-load Speed @ 8.4V: 0.09sec/60°
