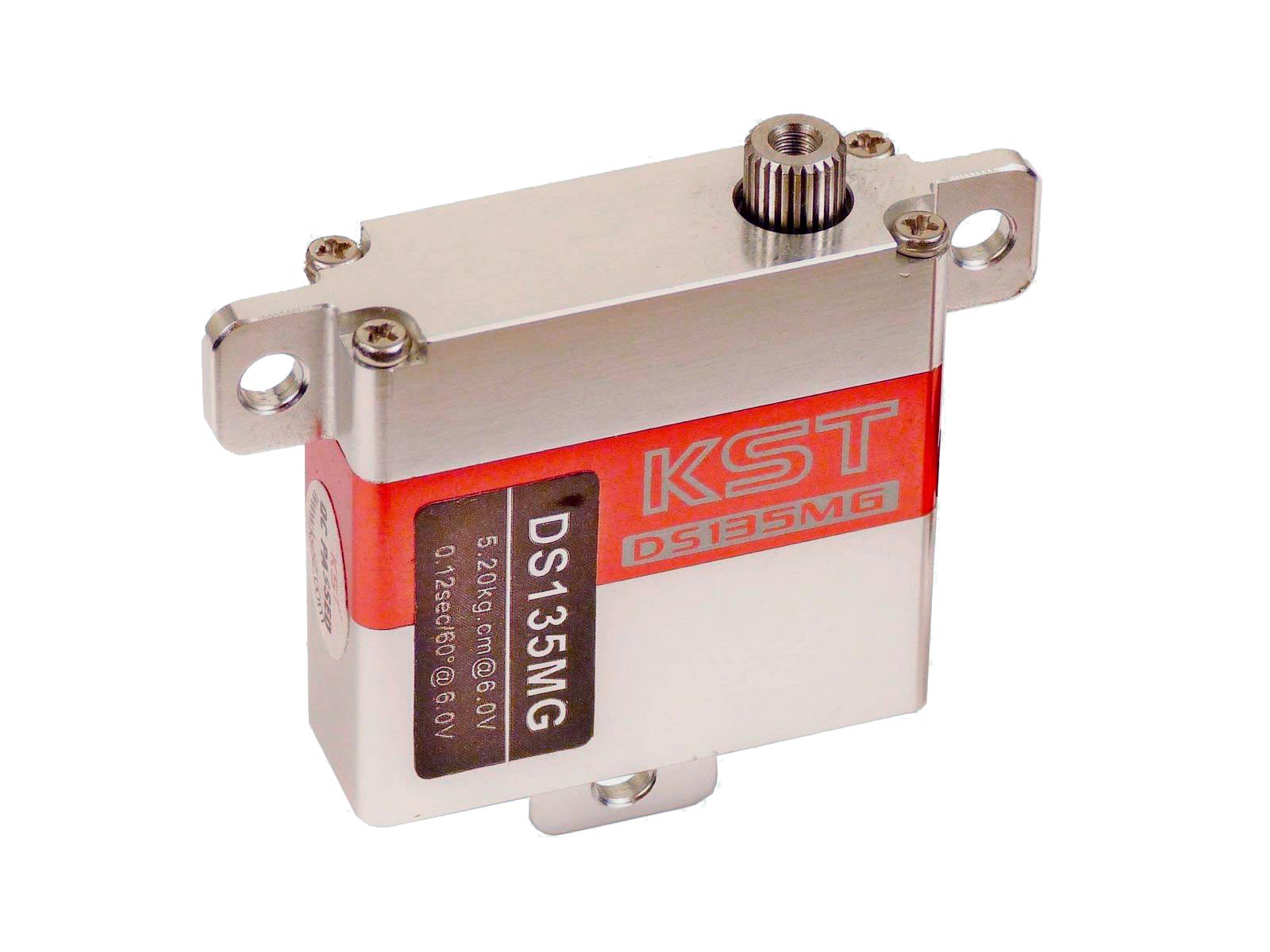

KST DS135MG MINI WING Servo - 5.2Kg.cm 0.12s 23.0g 10mm
Description
At only 10mm thick this great wing-servo can easily fit in thin glider and jet wings. With a massive 5.2kg.cm torque the KST DS135 is appropriate for F3F, F3B, F3J, F5J, all fast gliders, and jets.
No longer supplied with metal output arms.
| KST DS135MG MINI WING Servo Specifications | ||
|---|---|---|
| Body dimensions | 30.0 mm wide x 10.0 mm thick x 29.5 mm high | 1.18" wide x 0.39" thick x 1.16" high |
| Max dimensions | 42.0 mm wide x 10.0 mm thick x 40.0 mm high | 1.65" wide x 0.39" thick x 1.57" high |
| Stall torque (4.8V) | 4.3 Kg.cm | 60 oz.in |
| Stall torque (6V) | 5.2 Kg.cm | 72 oz.in |
| Stall torque (6V) | 5.2 Kg.cm | 72 oz.in |
| Weight | 23 g | 0.81 oz |
| Lead length | 16 cm | 6.3 in |
| Operating speed (4.8V) | 0.15 sec/60° | |
| Operating speed (6V) | 0.12 sec/60° | |
| Operating speed (6V) | 0.12 sec/60° | |
| Operating voltage | 4.8V to 6V | |
| Operating temperature | -10 to 60 °C | |
| Bearings | 2 Ball bearings | |
| Gear material | Bronze | |
| Case material | Aluminium | |
| Motor type | DC motor | |
| Working frequency | 333 Hz | |
| Dead band/resolution | µs | |
| Pulse width for ± 60º | 800-2200 µs | |
| Digital | Yes | |
| Programmable | No | |
| Position feedback | Potentiometer | |

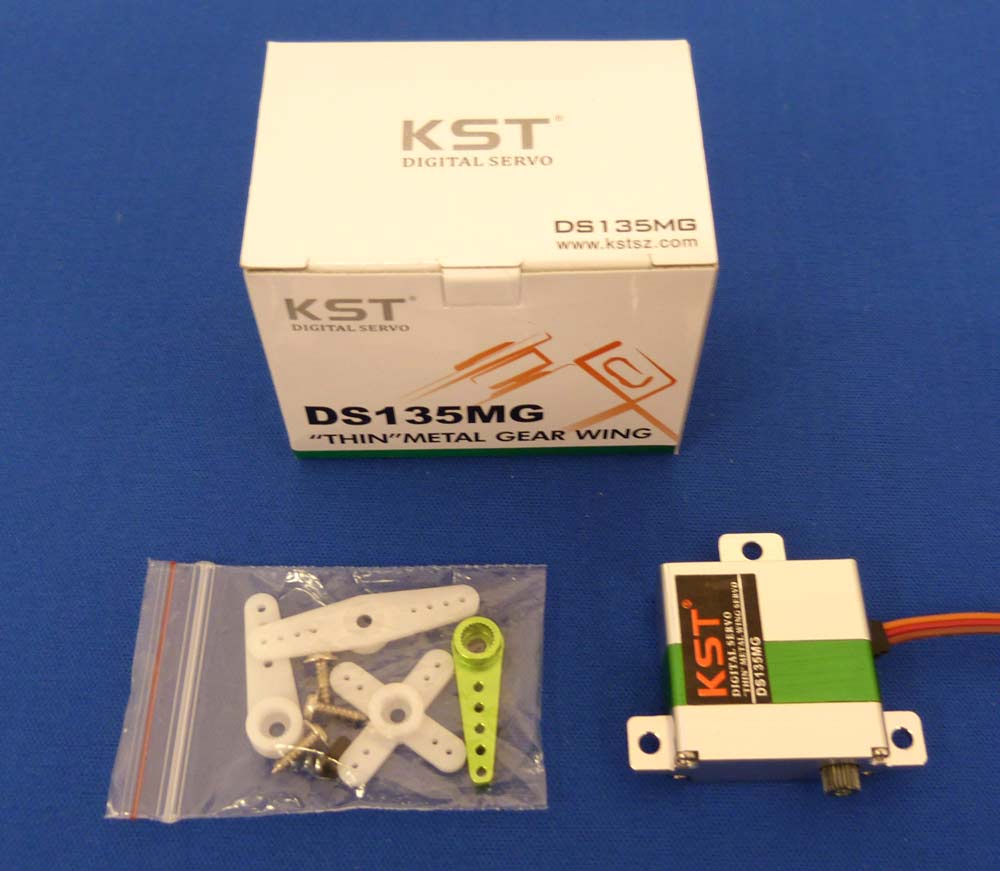

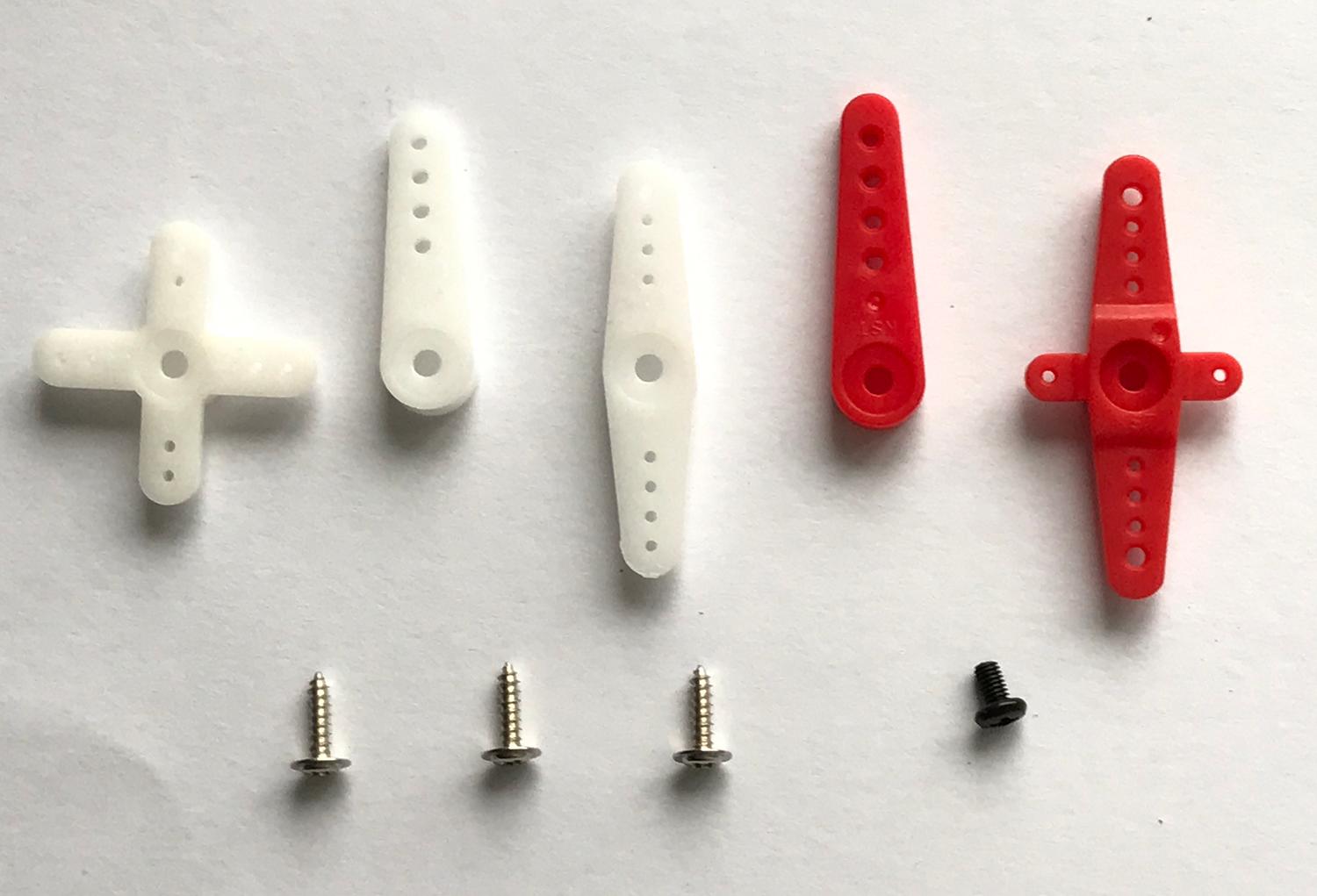

| Supplied accessories | 3 white plastic output arms, 2 red extra strong plastic output arms, 2 output arm retaining screws, 3 mounting screws | |
| Optional accessories | Frame with bearing for the KST X10, Ply Frame for KST X10 Mini, KST Plastic Servo Arm Set, KST 25T-5 Metal Servo Output Arm, Gear Set for KST X10 | |
Tags: High performance metal case 10mm thick mini wing servo. MKS DS6125 Mini, HS-125MG, HS-5125MG wing servo copy clone.
Reviews 77
First class well packed, quick shipment.
have bought these as they were a little cheaper than others but have always operated well for me. good value and reliable servo. can be a little noisey bit other than that would buy again. as ever service by hyperflight is second to none
have bought these as they were a little cheaper than others but have always operated well for me. good value and reliable servo. can be a little noisey bit other than that would buy again. as ever service by hyperflight is second to none
I have purchased these servos many times for my 3m F3F gliders. Thay have never let me down.
Service from Hyperflight is first class.
Good service, all received in time, quick shipment.
Definitely recomend this shop, and will comeback with order once needed.
Thanks Neil!
Reliable quality servo from my favourite model shop. Not a lot more to say really :)
Another nice servo from KST , ideal for what I have intended but do remember this model is only quoted as having a 4.8v & 6.0v user voltage ! Only time will tell what their long term performance is like.
Great service from Hyperflight as Always. Thank You.
as always this servo does the job asked of it!!
Been using KST servos for quite a while now.
Very reliable and the DS135MG is no exception.
Match that with the great service from Hyperflight and you can't go wrong
Great Servo's very reliable and solid at speeds approaching 200mph with my 2m DS gliders.
I've got 4 or these in the wings of an old Valenta Thermik. The wings had been re-surfaced with vinyl and the control surfaces were a bit stiff leading to some stalling on the (20 year old?) original servos.
The KST DS135MG were an ideal replacement: 5Kg+ in a 10mm housing. No stalling now! I also updated the wing with the frame and bearing housing for a slop free fitment.
Quality servos with top performance and reliability at a great price. Why wouldn't you want to use them.
The JST servo is high performance servo at a reasonable price point and with Hyperflights excellent and immeduate zttention on orders, what is not to love.
Well made servos for the price which so far have not let me down.
Very good servos regarding the price.
Short delivery time
Noisy little buggers but smooth and thin unlike myself...absolutely fulfilling my needs re aileron servos for my mini blade...no complaints
These servos buzz a fair amount as they seem to hunt for neutral point.
The servo's, like the service from Hyperflight were as usual first rate.
KST DS135MG wing servos work great in my Zefiros glider. Shipment from Hyperflight is fast even though I live in the United States.
I bought 6 servos and one turned out to be defective, the seller gave me a discount on the servo and delivery of about 40 %, but I still lost some money about 30 $
Good servos great service as always
Great little servo. I needed them to be accurate for LDS on ailerons and they are.
Delivered the next day. Excellent.
Very nicely made servo's, prompt reliable delivery.
Service from Hyperflight is excellent . All the way to NZ
For a "side mount" servo these are the best I have found.
Bought two of these to replace MKS 6125s, one of which had a potentiometer failure. I changed over to KSTs years ago, and have never had problems with them ( unlike the vastly overrated MKSs). Delivery was the following day.
Neil
I still haven’t received the two servo try’s, I know there was no tracking, they were shipped the day after the servos
Ray
Neil
I still haven’t received the two servo try’s, I know there was no tracking, they were shipped the day after the servos
Ray
Great service as usual very quick turn around on shipping
I get all my smaller servos here.
Great service as usual very quick turn around on shipping
I get all my smaller servos here.
Great servo's with a great price from a great company.
Quick respons and deliver,very nice surprier.
Very good! The best value for money!
Tough times, Neil keeps this fantastic hobby going, items arrived on time. The KST DS135 are great servos, purchased over 30. Recommended.
Professional service, great communication, fast shipping, highly recommended hobby store.
Very good product and exceptional service considering these difficult times
Compact neat servo used for ailerons in my old Pike. Liked the inclusion of a metal servo horn.
Having ordered these items they came in the post the next day. Very good service.
I have yet to use them, as the glider is still being built!
Have these in most of my gliders, and have never failed. Delivered within 24 hours, great value too.
Fast delevery, correct price.
Very good servos for the price
I will buy anothers!
Very good little servos and good value.
One out of four servos was dead on arrival - zero resistance across the power leads. I'd soldered direct into a tight wing installation when I found this, so out it came. Apparently removing the plug counts as "modifying the servo" so I'm only due 50% cashback, which I still await. I'd have some sympathy to this - if there's a credible way in which removing the plug could cause an internal short circuit, I'd accept zero. But apparently I should be "grateful" for this level of service. So much for supporting the independent toy shop owner like we used to do with Addlestone Models 35 years back - next time I'll show my gratitude to Hobbyking.
HyperFlight Comment
The customer modified the servo and then wanted it replaced when he found it wasn't working. I gave him a voucher for 50% of the cost so he could prurchase a replacement at half price but he was not happy with this.
These are for my 3.15 Tango good servo's
Super fast despatch.
Keep up the good work.
Very ... very fast delivery.
Price interesting
Very good service, I recommend.
Great servo for the price,&Great service as always
Great servo for the price,&Great service as always
I purchased 1 of these too use as a spoiler servo in a Circle Dancer 3000 kit, very smooth & good centering , finish on these servos is excellent,
I ordered these over the Christmas/New Year period and delivery was very quick.
These were purchased to replace the aging (worn) wing servos in an X Models 2.5m Swift glider. The visual quality is on a par with Servos that cost twice as much. Having fitted them the control surfaces are now totally slop free. I flew the glider yesterday and the control response felt very precise and locked in, even though conditions were on the marginal side for this glider. Still to give them a real test at ballistic speeds but I feel confident these won't dissapoint. KST servos will be my go to servo from now on as will Hyperflight. Great service from Niel.
Fitted these to a Tangent Alpina great servo, good price and as usual exellent service from Neil at Hyperflighf
I was in a rush after burning out my Flap servos on my Typhoon on a late Thursday night, Ordered them then and there and they arrived for me 9am Saturday morning. Was back out on the slopes again that afternoon!.
Really impressed with these little things, extremely quick with very high holding power for its size!.
Definitely will be ordering more for my ailerons!.
Nice thin wing servos which centre well.
I bought 4 of these following recommendations from other RC flyers. They centre perfectly with no slop and movement transition is very smooth. I would highly recommend these servos to others and next time I need slim wing servos I will buy more of these without hesitation. Delivery from Hyperflight was very quick i.e they arrived next day from ordering. I'm a very happy customer.
I did some improvements on my Eli 2 putting 4 MKS 6125mini in the wing
Before def fixing in frames,I did some testing with a fresh loaded 4,8 nihm!
Results 2 sudden death!!
Ordered 4 Kst 135,got them within a week,now I dont Need worrying no slop
Plenty power and a super flying Eli oldtimer👏👏👏👏👏
Brilliant servos that I use in all my planes. Unbelievable value for money.
I am very familiar with the servo but I could not find it anywhere as they where all sold out. I am very happy that I found this website. Price was compatible and the shipping time was acceptable. Thank you so much. I am very satisfied with this purchase. I will definitely use your services again.
I was looking for a dependable, high-speed and precise thin-wing servo for my competition F5J/ALES gliders. These fit the bill perfectly. I've been using them for 5 years and have not had a single one fail me. I've currently have 16 of them in service and they are absolutely fantastic!
You are getting a very very nice 5,2kg torque servo for about 30% less than that other brand and in my opinion, they are just as good.
Buy with confidence!
Jay D
These servos I will recommended to everyone who build a model saleplane
Great little servo for dlg & small gliders ,where room is @ a premium!
Excellent quality servo which I have used to replace a pair of old HS125 on the ailerons. The complete lack of 'play' at the servo horn makes quite a contrast to what modellers used to put up with on the old analog servos. Very good value for money.
Buenos servos, funcionan muy bien.
Excelente relacion calidad precio.
Ordered this product, great quality servos.
Great service from hyperflight, my only issue is that the metal control arm was missing form one of the servos.
These servos are lovely quality, fast and powerful. Servo mounts complete the package
I have tested these and they seem to have substantially more torque than the competing product I had tried before.
Also seem very precise with excellent centering and very little slop if any.
Very nice little servos with good torque and little slop in the gear train im using 2 of these in my LET Ventuscx 6 meter glider for the air brakes and work extremley well .And also resonably priced plus once again rang on one day got them the next from hyperflight, thats very good service.
Nice powerful servo at a good price, prompt delivery
To be fair i've not tested the servos in anger yet but the advice I got was friendly and helpful and the delivery almost quicker than I thought possible. With service like that you start to realise why local hobby shops are disappearing!
