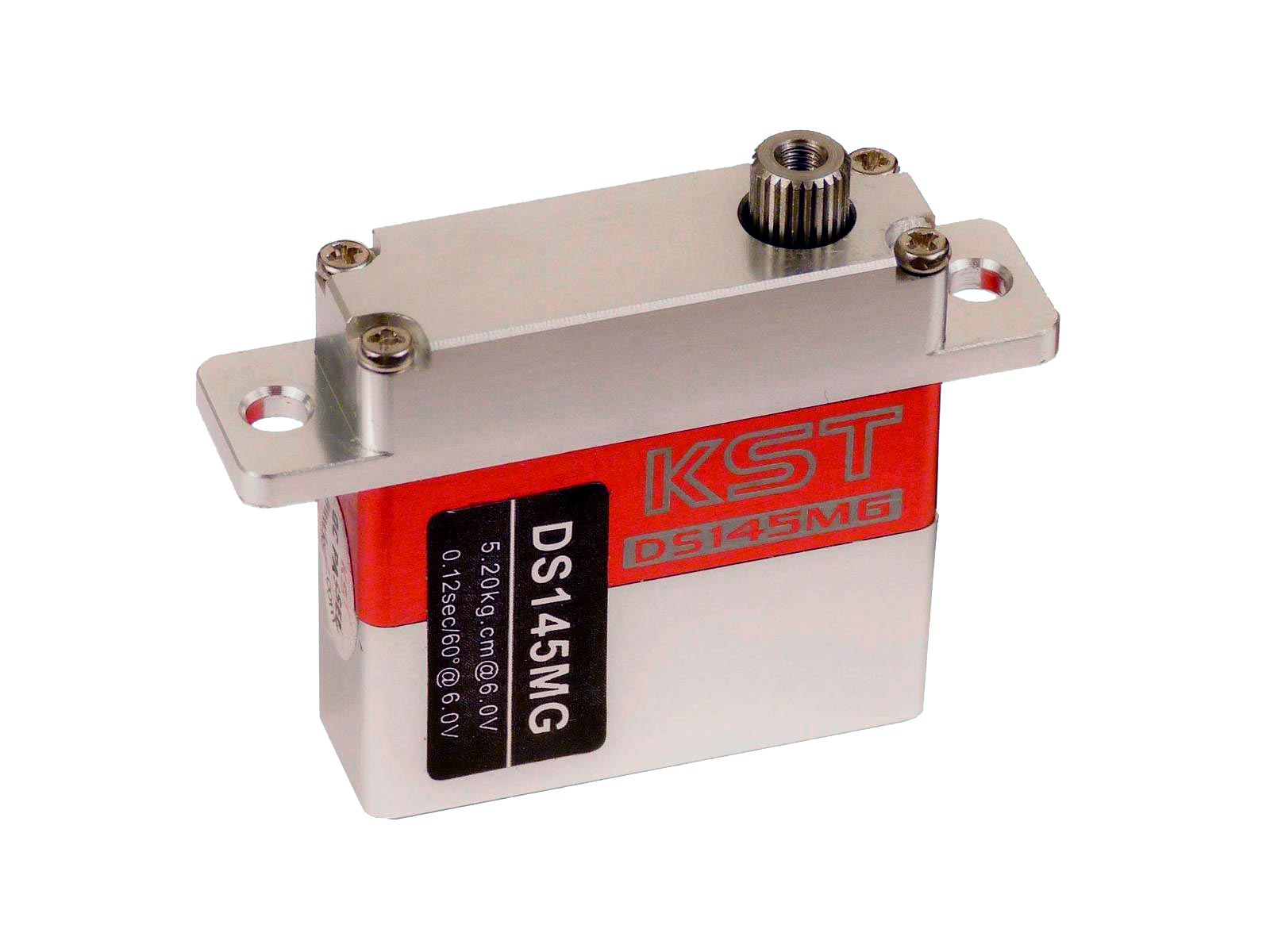

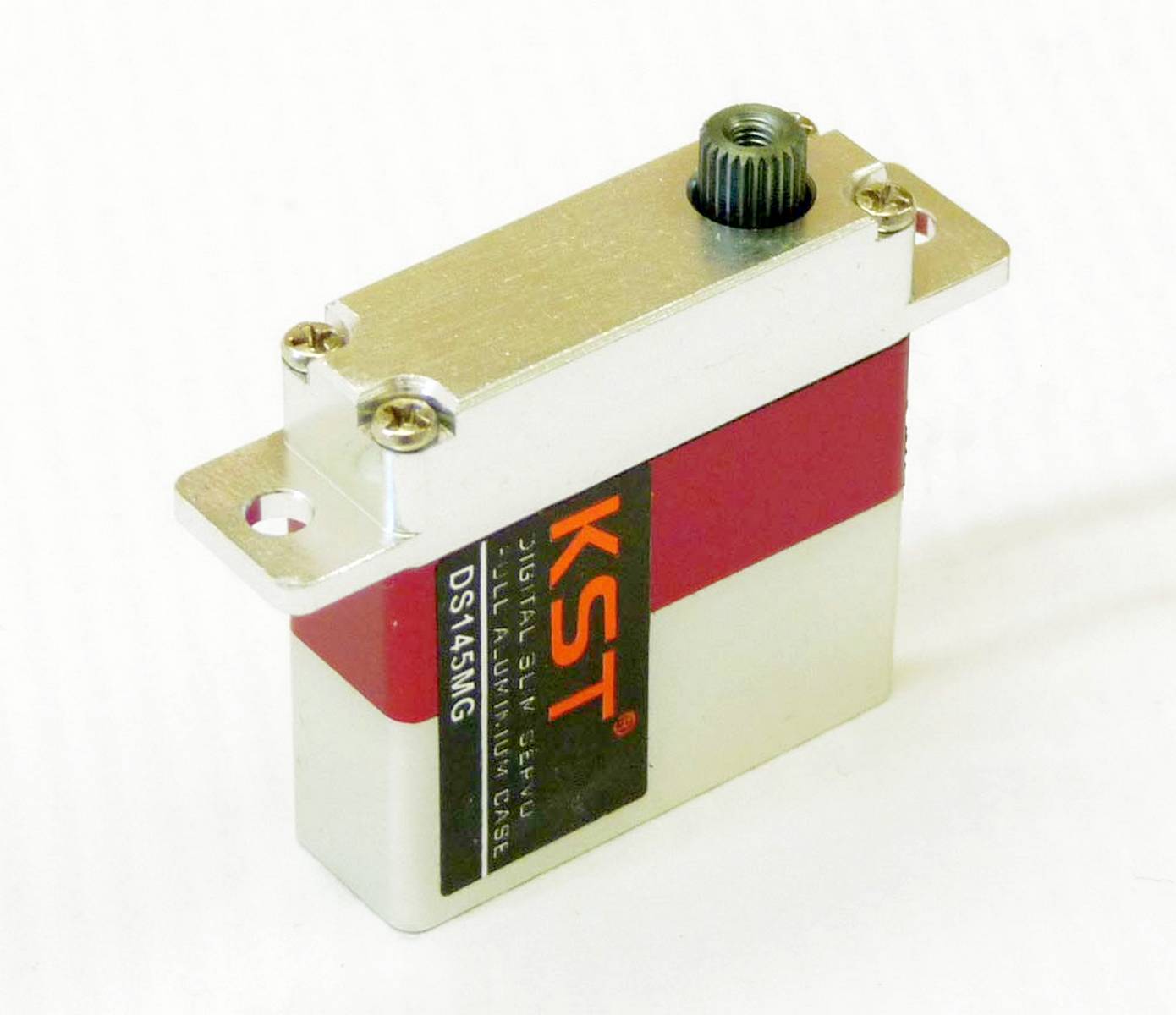

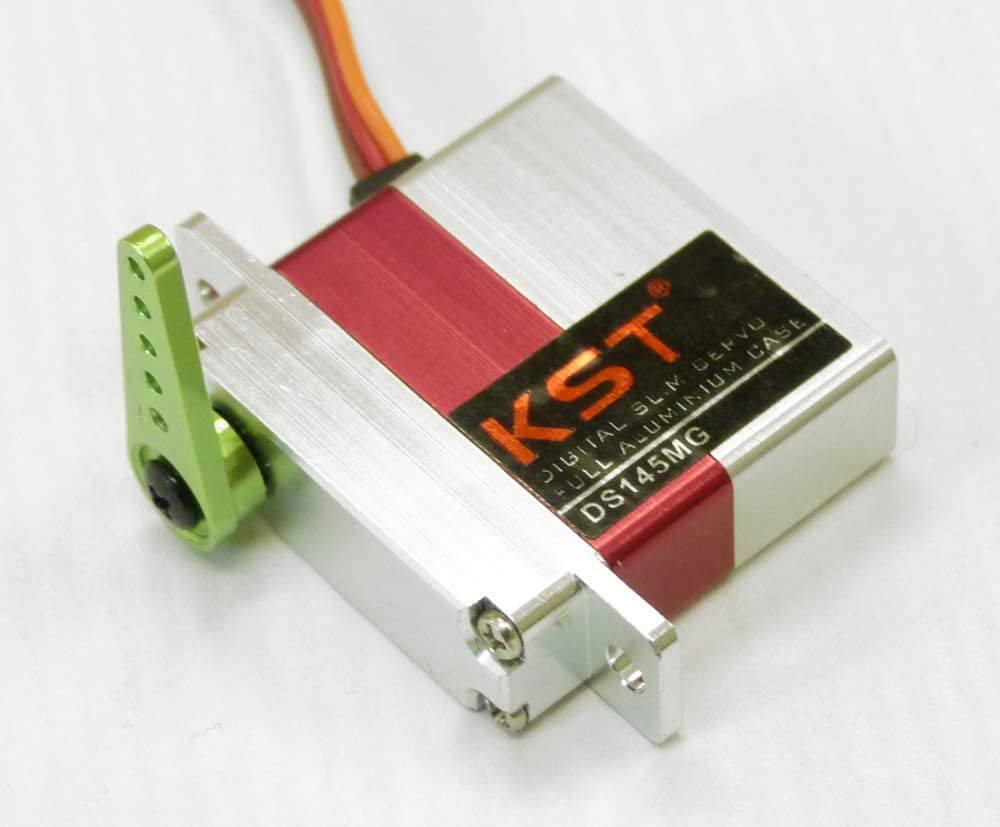

| KST DS145MG Servo Specifications | ||
|---|---|---|
| Body dimensions | 30.0 mm wide x 10.0 mm thick x 30.0 mm high | 1.18" wide x 0.39" thick x 1.18" high |
| Max dimensions | 42.0 mm wide x 10.0 mm thick x 35.0 mm high | 1.65" wide x 0.39" thick x 1.38" high |
| Stall torque (4.8V) | 4.3 Kg.cm | 60 oz.in |
| Stall torque (6V) | 5.2 Kg.cm | 72 oz.in |
| Stall torque (6V) | 5.2 Kg.cm | 72 oz.in |
| Weight | 23 g | 0.81 oz |
| Lead length | 16 cm | 6.3 in |
| Operating speed (4.8V) | 0.15 sec/60° | |
| Operating speed (6V) | 0.12 sec/60° | |
| Operating speed (6V) | 0.12 sec/60° | |
| Operating voltage | 4.8V to 6V | |
| Operating temperature | -10 to 55 °C | |
| Bearings | 2 Ball bearings | |
| Gear material | Bronze | |
| Case material | Aluminium | |
| Motor type | DC motor | |
| Working frequency | 333 Hz | |
| Dead band/resolution | µs | |
| Pulse width for ± 60º | 800-2200 µs | |
| Digital | Yes | |
| Programmable | No | |
| Position feedback | Potentiometer | |

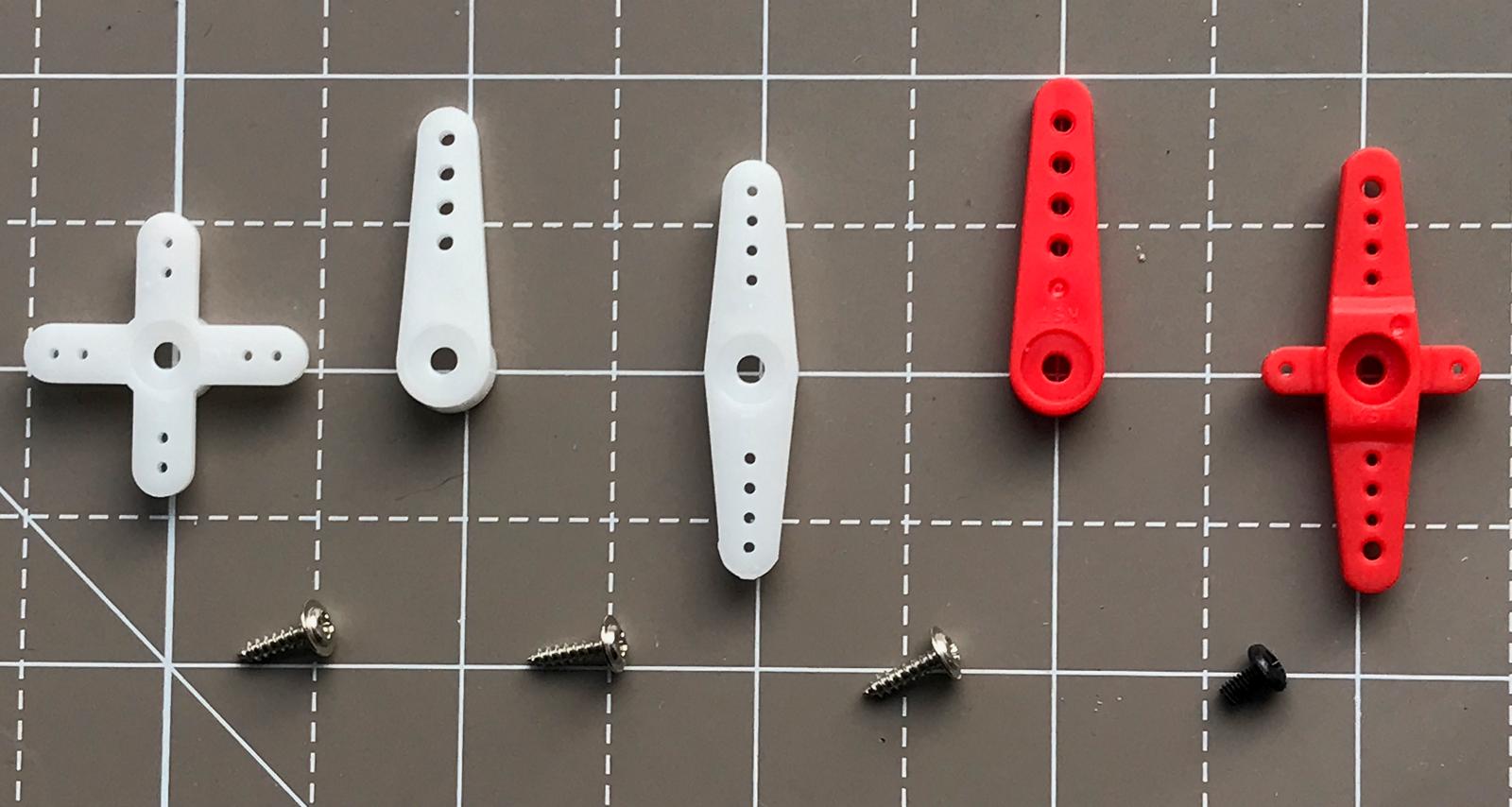

| Supplied accessories | 3 white plastic output arms, 2 red extra strong plastic output arms, 2 output arm retaining screws, 3 mounting screws | |
| Optional accessories | KST Plastic Servo Arm Set, KST 25T-5 Metal Servo Output Arm, Gear Set for KST X10 | |
I have purchased these servos many times for my 3m F3F gliders. Thay have never let me down.
Service from Hyperflight is first class.
Very good service with accurate description and prompt communication
Quality servo great service as always thank you Hyperflight team
Great Servo's very reliable and solid at speeds approaching 200mph with my 2m DS gliders.
Absolutely excellent great service! Super fast delivery. Quality through and through. Both the products and the service. Many thanks
Refurbing an old vikos F3F model two hitec 5085mg’s were fitted in the fuz. Never had a lot of luck with hitec so I changed them out for kst ds145mg’s.
Smoothest gear train ever! Ran these for 30 minutes each on my old servo tester then dropped them into the vikos. At rest they buzz a little but very very smooth in operation. I’m impressed. High pressure and low winds for two weeks now..but when the weather breaks I’ll confidently fly the vikos with these. Quick delivery and good packaging from hyperflight. Thanks Neil.
Refurbing an old vikos F3F model two hitec 5085mg’s were fitted in the fuz. Never had a lot of luck with hitec so I changed them out for kst ds145mg’s.
Smoothest gear train ever! Ran these for 30 minutes each on my old servo tester then dropped them into the vikos. At rest they buzz a little but very very smooth in operation. I’m impressed. High pressure and low winds for two weeks now..but when the weather breaks I’ll confidently fly the vikos with these. Quick delivery and good packaging from hyperflight. Thanks Neil.
High quality servos.
Nicely packed and delivered very quickly.
Many thanks Hyperflight for your fine service!
I really like kst servos. I am sure you pay. For what you get.
Nice servos that pack some torque for their size. Speedy delivery from order.
I bought KST wing servos. Excellent servos.
Service and response from hyper flight was exceptionally good !!!
Very good servo, holds good center, is thin and strong.
Amazing little servos, very small, strong and centre beautifully... why pay more!!
I ordered 2 of these servos ,too use in a Circle Dancer 3000 kit that I had ordered at the same time from Hyperflight, excellent finish ,super smooth , & perfect centering, very good value ,
Nice smooth servos with good centering.
Great performing servo at a competitive price. Ideal for narrow fuselage
Great product , very fast delivery , smoothly process , thank you very much !
Good quality reliable servo with flawless performance. Great value servo back up with a quality service.
I bought 2 of these off Neil for my Nan models Orion and wow, value for money, amazing!
Brilliant servos, powerful, no slop and very efficient.
They fly my machine around like nothing else I have had before.
Fast delivery, much appreciated. I really like the solid engineered feel of these servos. In my "wing" glider, 2 servos use up very little battery power - my experience over many outings is that 2 typically consume 155mA per hour in total, which is great for those wishing to use smaller capacity batteries for space/lightness reasons, or just enjoy plenty of hours flying between charges.
Ideal for very tight places and reasonable grunt at 5.2Kg
very nicely made.
Good servo, very precise, powerful and light. Costs half of other servos much lauded with the same characteristics.
This servo is perfect for use with the JR Axis Gyro. It is powerful enough for all but the heaviest use. It's low profile allows it to fit within a wing or deep narrow fuselage.
Service from Hyperflight was exemplary and could not have been bettered.
Great price, fast service. Very smooth and positive servo. I have great confidence in these and have not had any problems with them in any shape or form
i bought these to use in a 3D model (using a 4S power system) that had large surfaces that moved to extreme positions - hence i needed servos that would provide power , speed and high resolution . I was dubious that a £25 servo could meet my reqts however reviews from other pilots advised they were worth a look. Having now fitted these servos to the model i can advise that they meet all my reqts and even with extended arms on servos there centering is spot on . There is no servo hum at neutral , speed is superb and they provide a really tight link to all control surfaces . i have used the metal servo arms supplied , these ensuring a solid link to all control surfaces . torque more than adequate for my model , in future i will use these on larger model (6s ) - highly recommended
bought two of these recently for a novice glider,
not much room in fuselage but these will be perfect, smoth operating servo,
will be using more kst servos in the future,
just simply very well made
I have been a modeller for the past 45years and have tried lots of well known brand servos over this time. I wanted some quality servos for my new camera gimbal for my aeropic quad.I looked rather deeply into the subject to the point of thinking of building my own.
I could not find any servo with zero backlash on the gear train. However I was so impressed by a video i seen featuring these so i decided to purchase a pair.
Money very well spent!
This servo just speaks quality product from the time you pick it up to connecting it to your radio quiet power with a reasonable response. The mounting lugs are robust and the whole servo speaks quality. It is supplied with a lovely quality alloy servo arm and a collection of nylon arms and screws. The alloy arm is a perfect engineering fit to the knurling on the output shaft and requires a perfectly true pull to remove it. This quality of engineering I like.
I will be purchasing more of these servos in the future for my larger models
.
I only have one negitive thing to say and its so minor i was not going to mention it the mounting lugs are bored for a 3mm threaded screw But there is not enough free space against the casing for the head of a 3mm threaded pin either a allan head or dome head to fit without taking a little from the diameter of the screw head However having said this, I highly recommend this servo if you require precision and like quality engineering and a servo you feel you can trust
