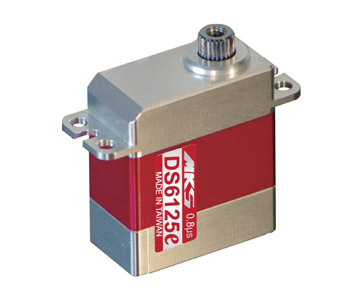

MKS DS6125E Servo - 3.3Kg.cm 0.05s 21.0g 12mm
Description
The MKS DS6125E servo is a high speed, high precision servo especially optimsed for glider V tails, normal tail surfaces, and 3D helicopters. Its robust geartrain, strong alloy case and excellent feedback system, interfaced to brilliant firmware driving the FET output staged amplifier combine to make this the tail servo of choice. Idea for competition modellers, ensuring the very best elevator control enabling very accurate high speed flight.
At 12mm thick this superb servo can easily fit in its intended models, and with its incredible 0.053 second speed and useful 3.3kg.cm torque the DS6125e is appropriate for F3F, F3B, F3J, F5J and other high speed gliders.
The MKS hallmark CNC aluminium alloy case adds rigidity and crash resistance to the servo. The gears are pre-loaded to remove all slop or backlash from the geartrain, allowing a level of precision unequalled by other manufacturers.
At 12mm thick this superb servo can easily fit in its intended models, and with its incredible 0.053 second speed and useful 3.3kg.cm torque the DS6125e is appropriate for F3F, F3B, F3J, F5J and other high speed gliders.
The MKS hallmark CNC aluminium alloy case adds rigidity and crash resistance to the servo. The gears are pre-loaded to remove all slop or backlash from the geartrain, allowing a level of precision unequalled by other manufacturers.
| MKS DS6125E Servo Specifications | ||
|---|---|---|

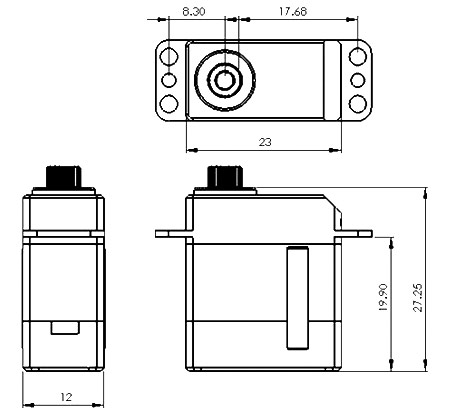

| Body dimensions | 23.0 mm wide x 12.0 mm thick x 27.3 mm high | 0.91" wide x 0.47" thick x 1.07" high |
| Max dimensions | 32.0 mm wide x 12.0 mm thick x 32.5 mm high | 1.26" wide x 0.47" thick x 1.28" high |
| Stall torque (4.8V) | 2.58 Kg.cm | 36 oz.in |
| Stall torque (5V) | 2.7 Kg.cm | 37 oz.in |
| Stall torque (6V) | 3.25 Kg.cm | 45 oz.in |
| Weight | 21 g | 0.74 oz |
| Lead length | 15 cm | 5.9 in |
| Operating speed (4.8V) | 0.066 sec/60° | |
| Operating speed (5V) | 0.063 sec/60° | |
| Operating speed (6V) | 0.053 sec/60° | |
| Operating voltage | 4.8V to 6V | |
| Operating temperature | -10 to 50 °C | |
| Bearings | 2 Ball bearings | |
| Gear material | Metal Alloy Gear | |
| Case material | CNC machined 6061 aluminium | |
| Motor type | High-end Japanese coreless Motor | |
| Working frequency | 333 Hz | |
| Dead band/resolution | 0.8 µs | |
| Pulse width for ± 60º | µs | |
| Digital | Yes | |
| Programmable | No | |
| Position feedback | Direct drive potentiometer | |
| Supplied accessories | 2 substantial plastic output arms, 1 output disc, 2 output arm retaining screws, 6 mounting screws | |
| Optional accessories | MKS Short Metal Servo Output Arms, MKS Long Metal Servo Output Arms | |
Reviews 2
Ferri Iriandi
UK
MKS DS6125e
Servos arrive in good condition without the hassle of custom. This is the replacement servo as the previous one keep oscilating when the power was turn on after one year week end flight in Pike Precision. Hope this one will last longer.
