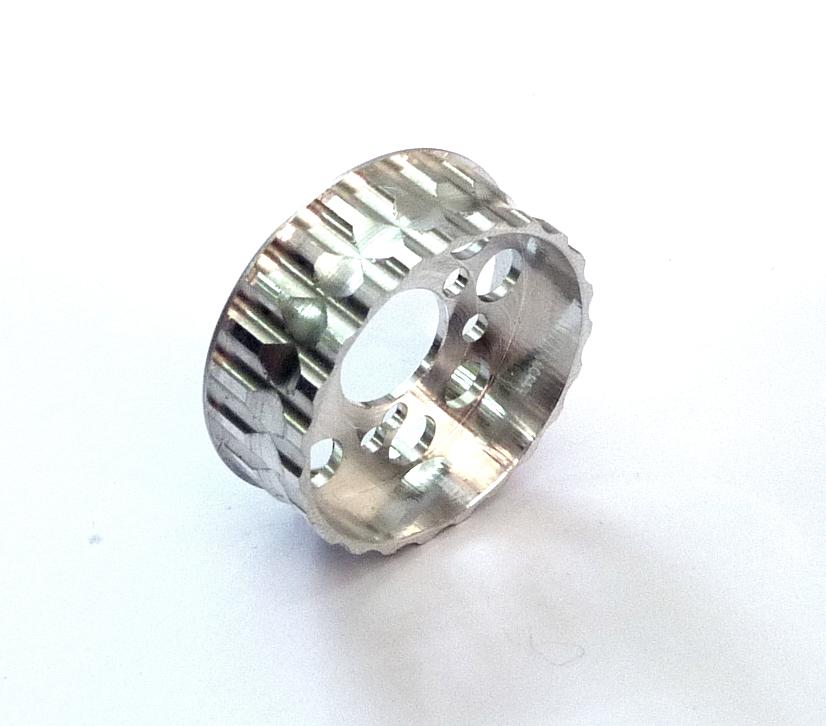

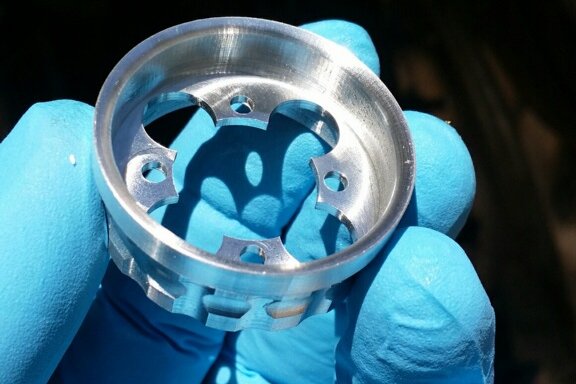

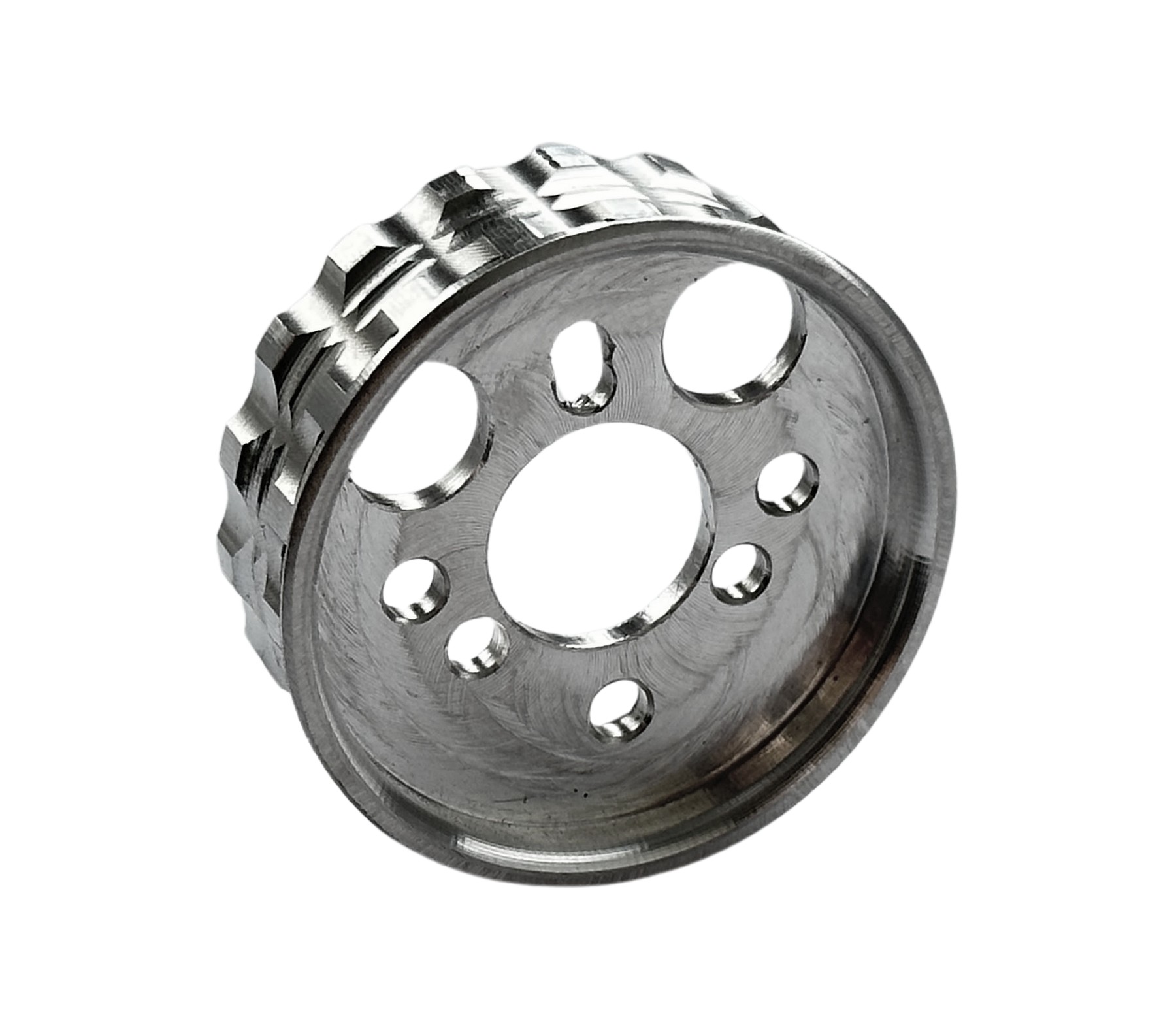

Powerline Turbo 10XX & Reisenauer 5:1 Motor Mount - 30mm

The PNC Innovations 30 mm Powerline 1010, 1015, 1020, 1025 & Reisenauer 5:1 Motor Mount is a beautifully CNC machined motor mount for securely attaching Powerline 1010, Powerline 1015, Powerline 1025 old and new Turbo motors and Reisenauer 5:1 gearbox motors and to the front of 30 mm diameter fuselages, like the Ultima and other smaller F5J fuselages. This firewall also fits some Maxon 4.4:1 gearboxes with 3 holes on a 14 mm diameter.

• Easy to install.
• Very strong.
• Superb machining.
• They look great!

To attach these CNC motor mounts to carbon/kevlar/glass fuselages a strong high temperature glue is required. We recommend this glue or JB Weld. Epoxy can be used but the strength is impaired at high temperatures. To attach these CNC motor mounts to carbon/kevlar/glass fuselages a strong high temperature glue is required. We recommend this glue or JB Weld. Epoxy can be used but the strength is impaired at high temperatures.

Powerline Turbo 10XX & Reisenauer 5:1 Motor Mount
Fuselage outside diameter	30 mm
Fuselage internal diameter	28 mm
Predrilled Powerline holes 1	4 holes on a 17.5 mm circle
Predrilled Reisenauer holes 2	3 holes on a 14 mm circle
Motor mounting hole diameter	2.5 mm
Weight	3.5g
