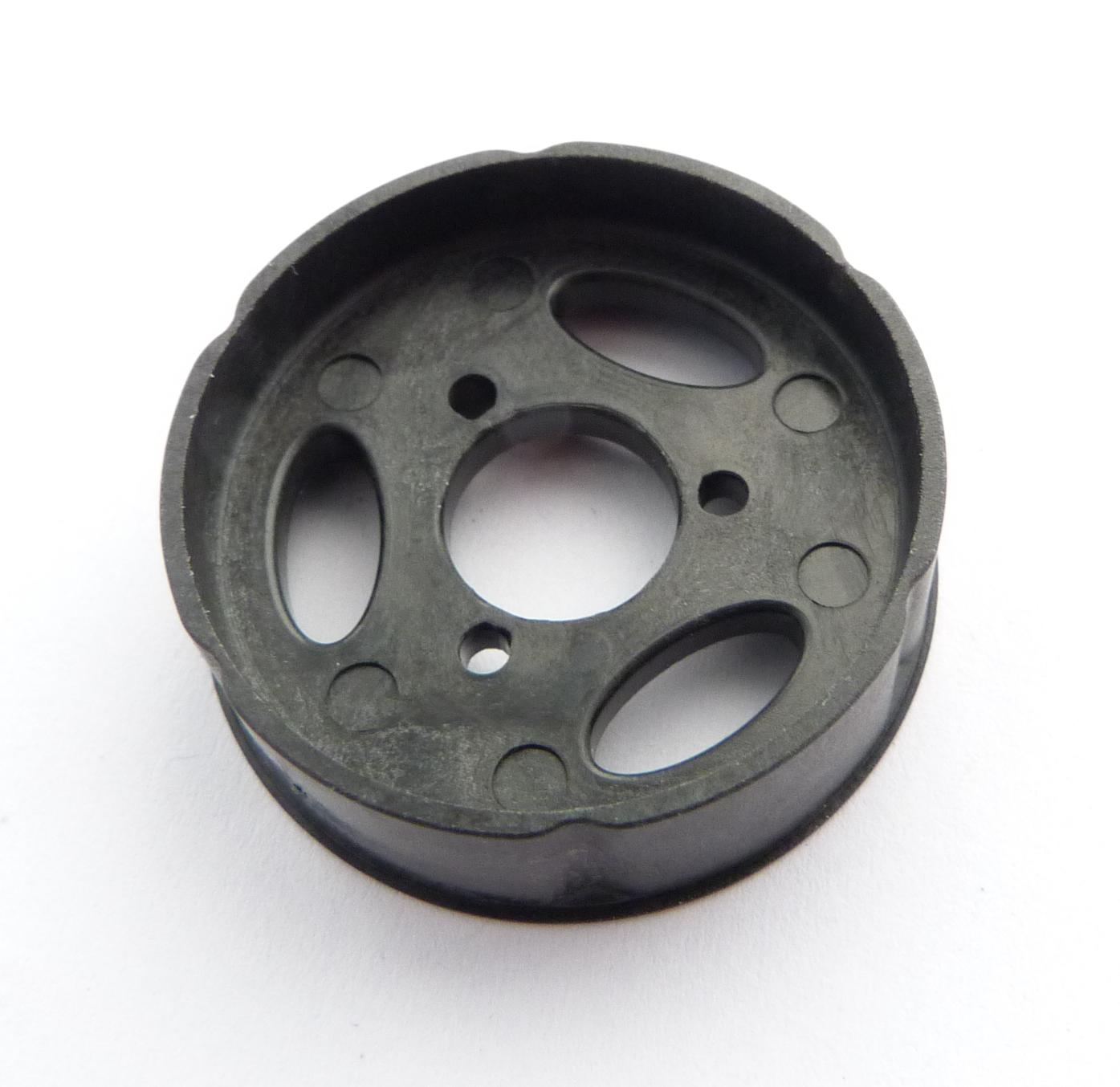

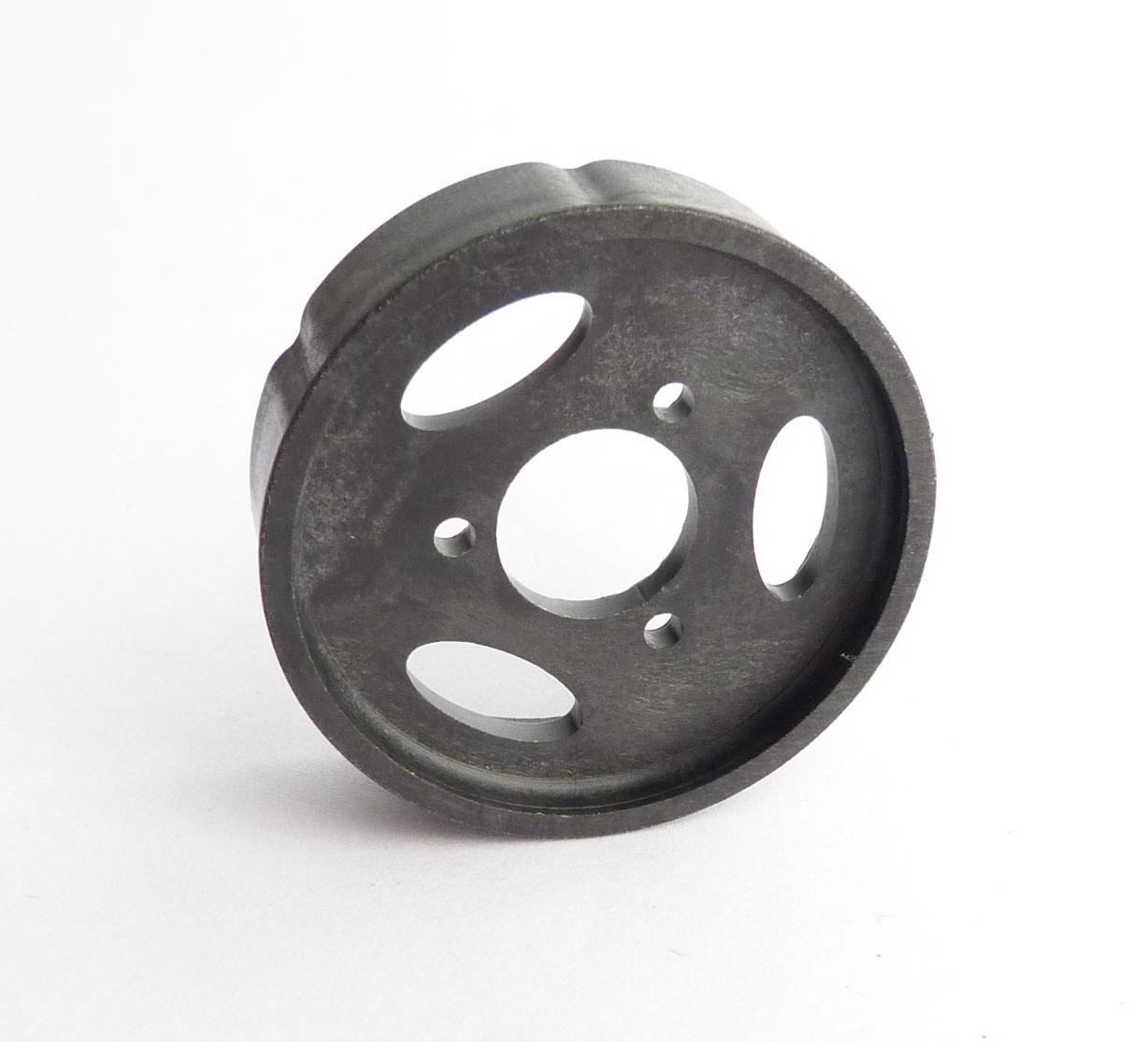

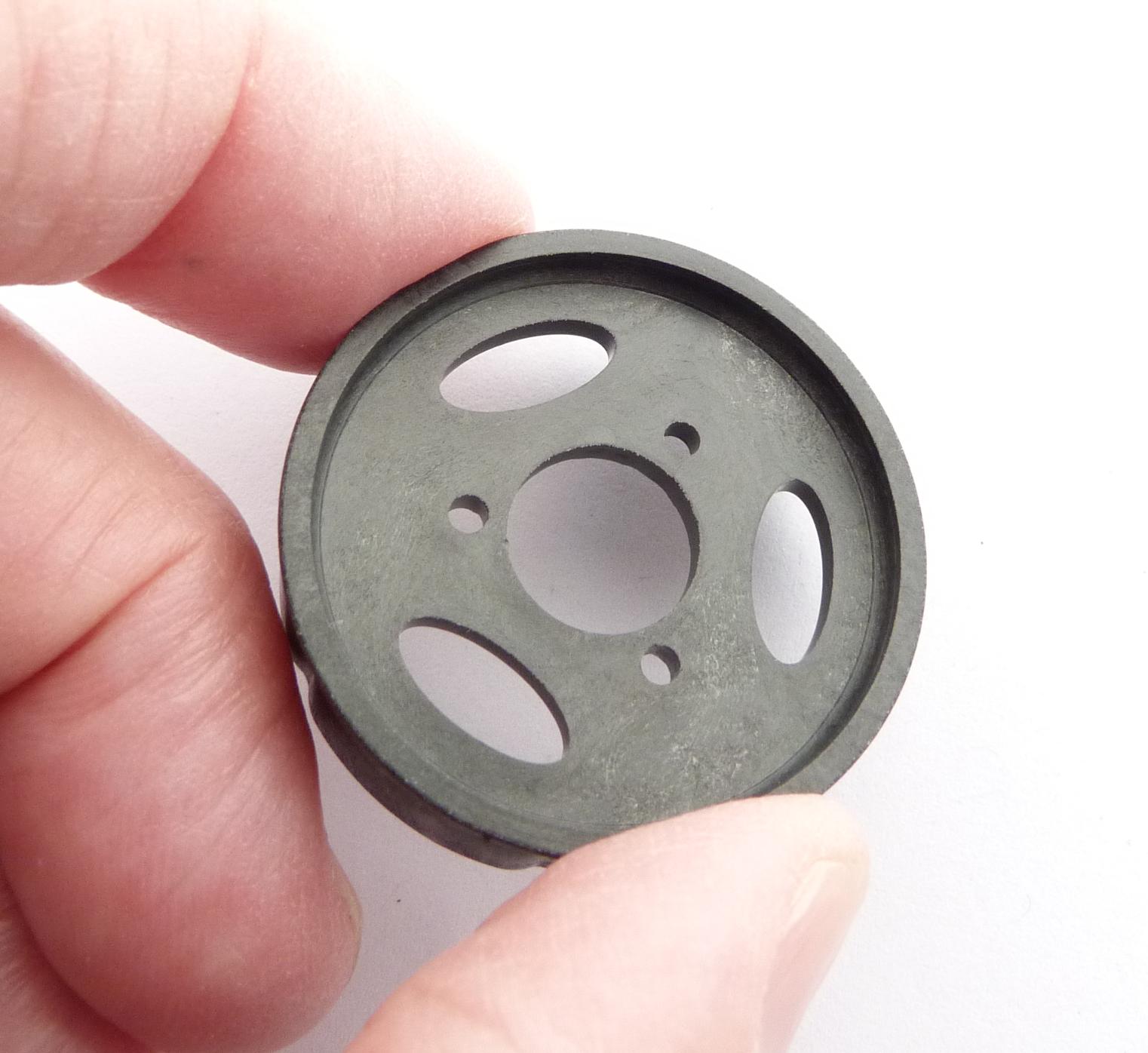

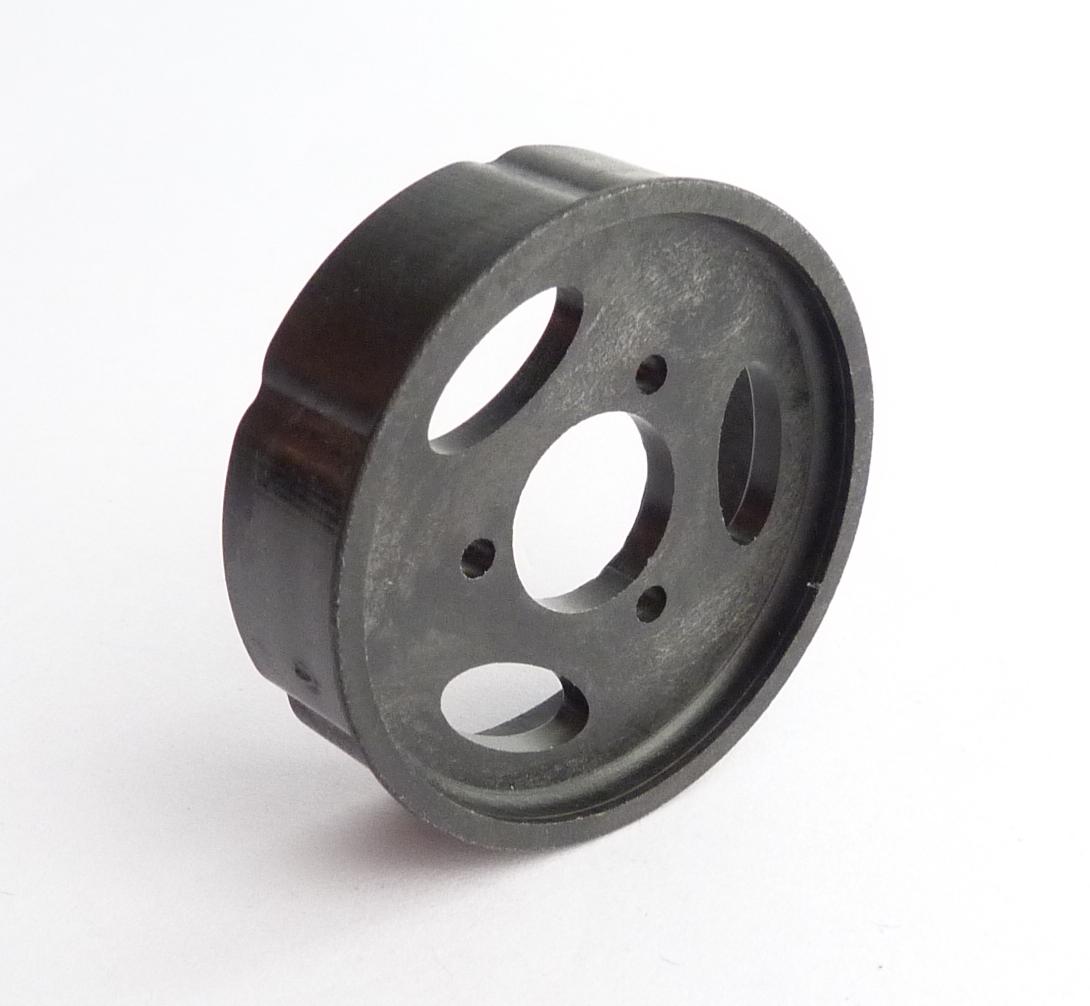

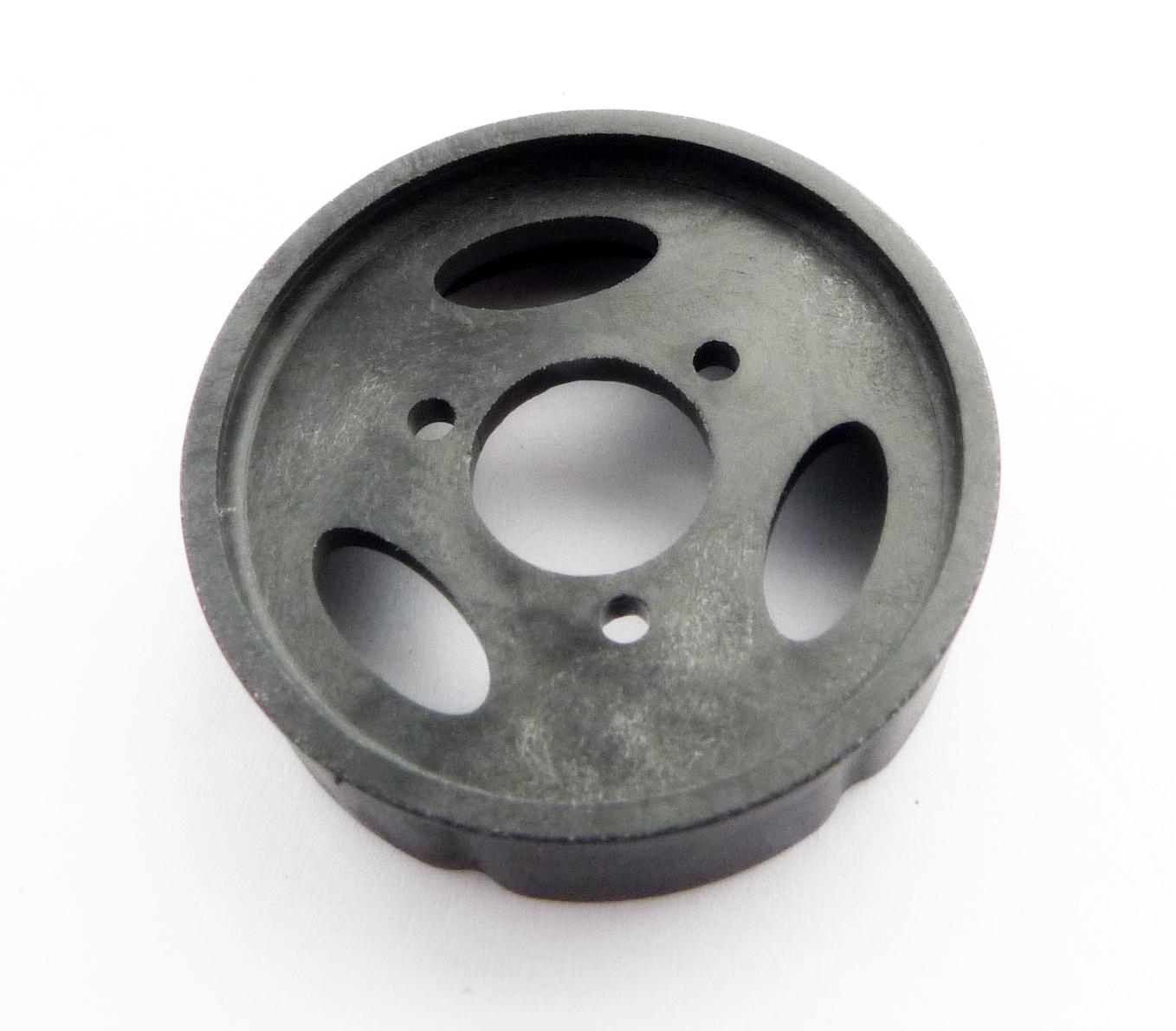

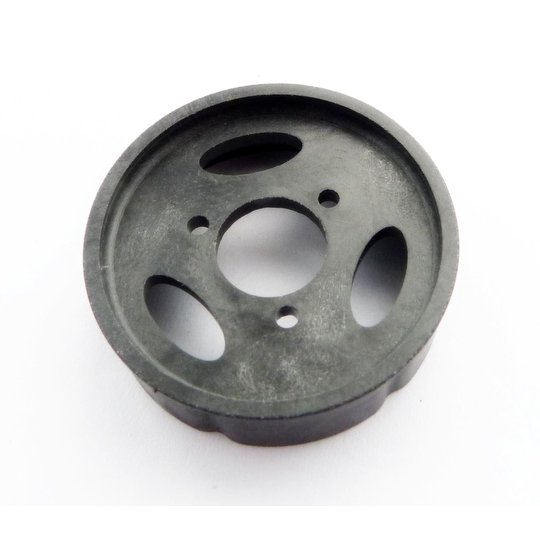

Reisenauer Plastic Firewall - 32mm

A hard plastic firewall to fit 32.1 mm outside diameter F5J electric glider fuselages. This is usually also the spinner diameter. Motor/gearbox mounting holes have been pre-drilled for the Reisenauer Micro-Edition gearbox with 3 holes on a 14 mm circle. This is also suitable for some Maxon 4.4:1 gearboxes.

Note the 31.1 mm dimension on these firewalls is the fuselage front inside diameter i.e. the outside size less 2*fuse wall thickness

Reisenauer 32.1 mm Plastic Firewall Specifications
Fuselage outside/spinner diameter	32.1 mm
Fuselage inside diameter	31.1 mm
Predrilled holes	3 holes on a 14 mm circle
Weight	2.1 g
