Universal Plastic Firewall - 30mm
Description

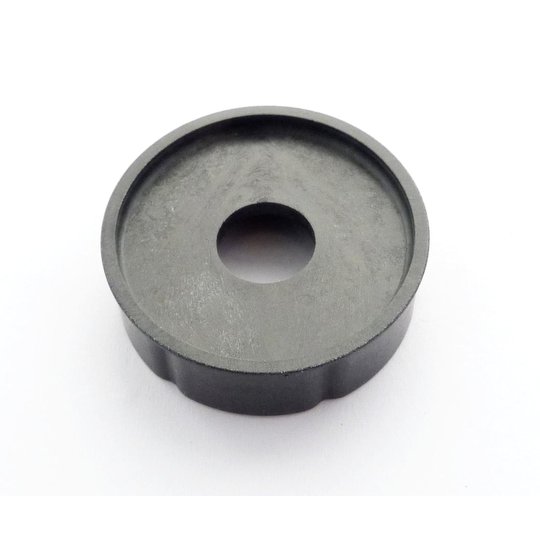

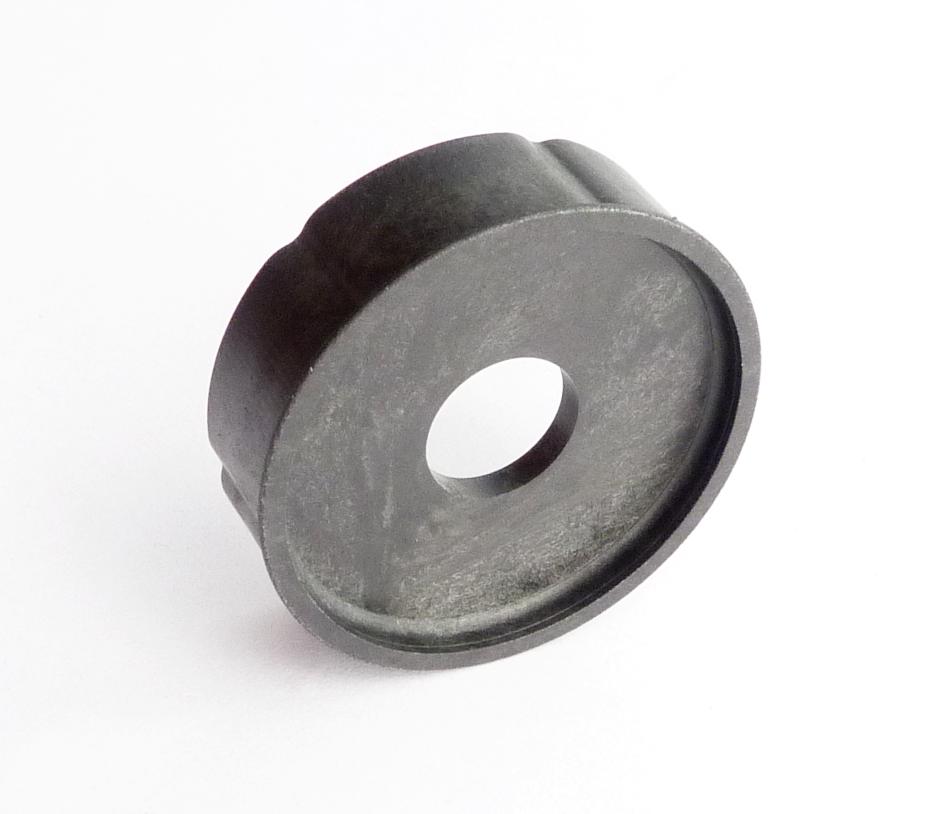

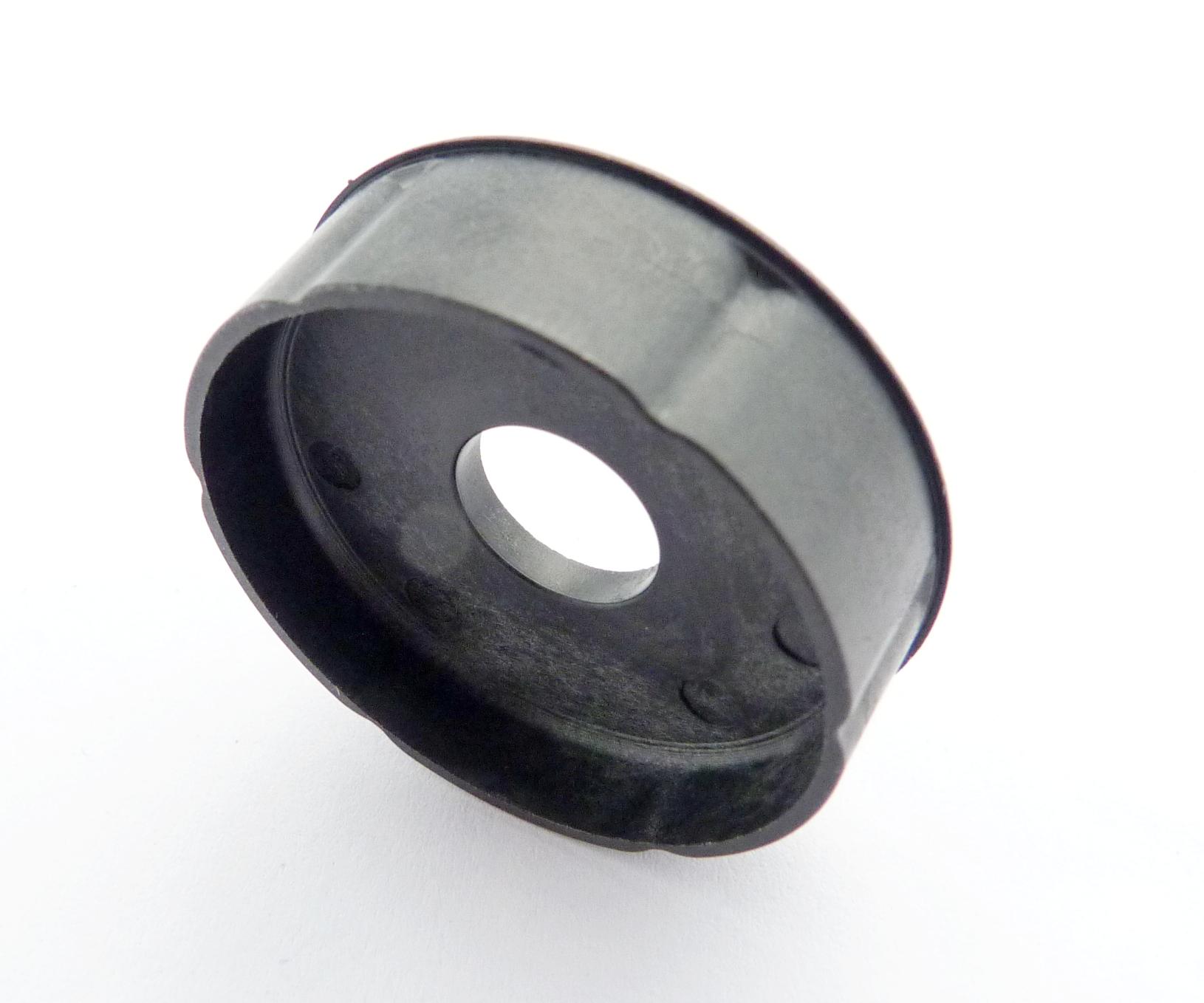

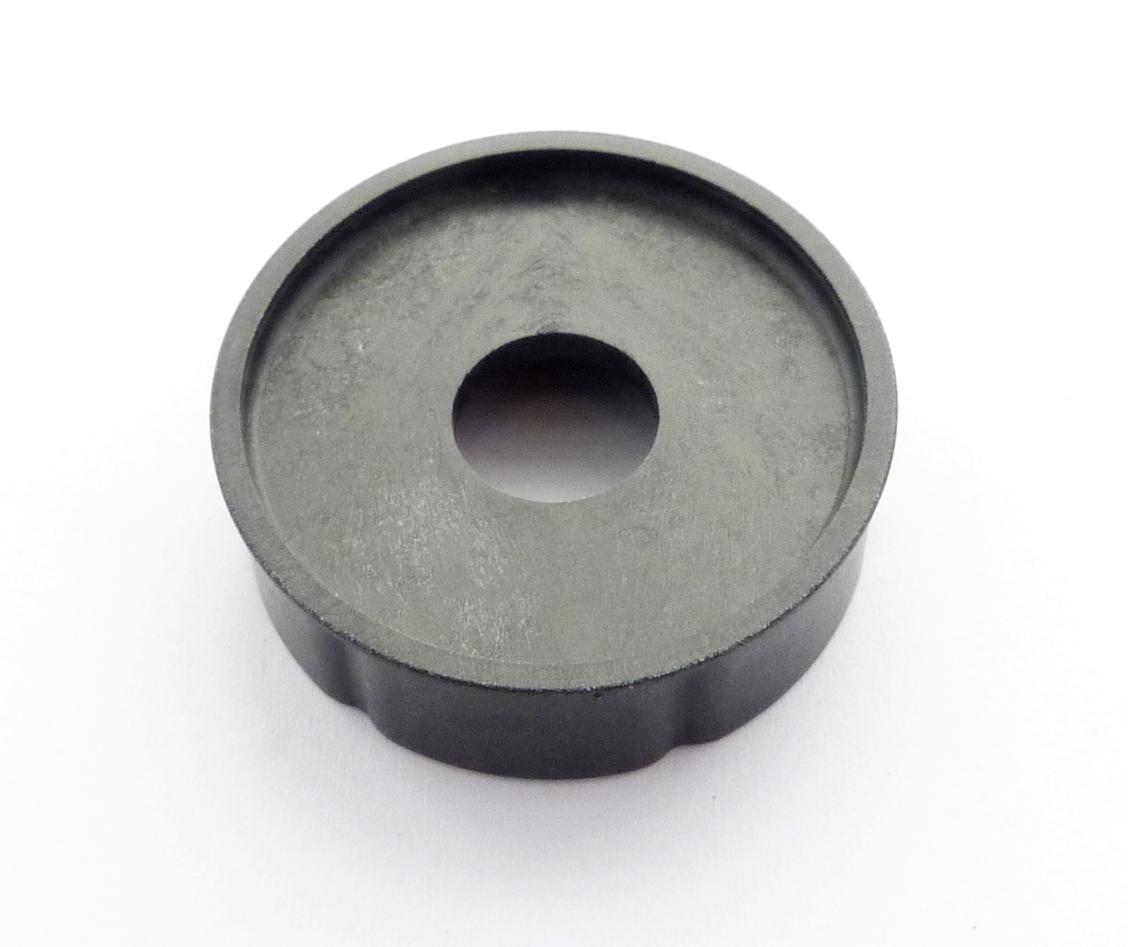

A hard plastic firewall to fit 30.1 mm outside diameter F5J electric glider fuselage. This is usually also the spinner diameter. Motor/gearbox mounting holes have not been pre-drilled so it can be used wih any front mounting motor.
Note the 29.1 mm dimension on these firewalls is the fuselage front inside diameter i.e. the outside size less 2*fuse wall thickness
Note the 29.1 mm dimension on these firewalls is the fuselage front inside diameter i.e. the outside size less 2*fuse wall thickness
| Univeral Plastic Firewall Specifications | |
|---|---|
| Fuselage outside diameter | 30.1 mm |
| Fuselage inside diameter | 29.1 mm |
| Max gearbox/motor diameter | 27.5 mm |
| Central hole diameter | 10 mm |
| Weight | 2.0 g |
