Integrated Drive System/Mono for MKS HV6110
Description
An Integrated Drive System or IDS is a largely or completely internal linkage between the servo and control surface. It is different from a normal wire based linkage in using much stiffer components, resulting in a more rigidly connected control surface, with much less compliance. Also IDS linkages use much shorter servo arm and control surface horn lengths. This allows the linkage to be enclosed in the wing.

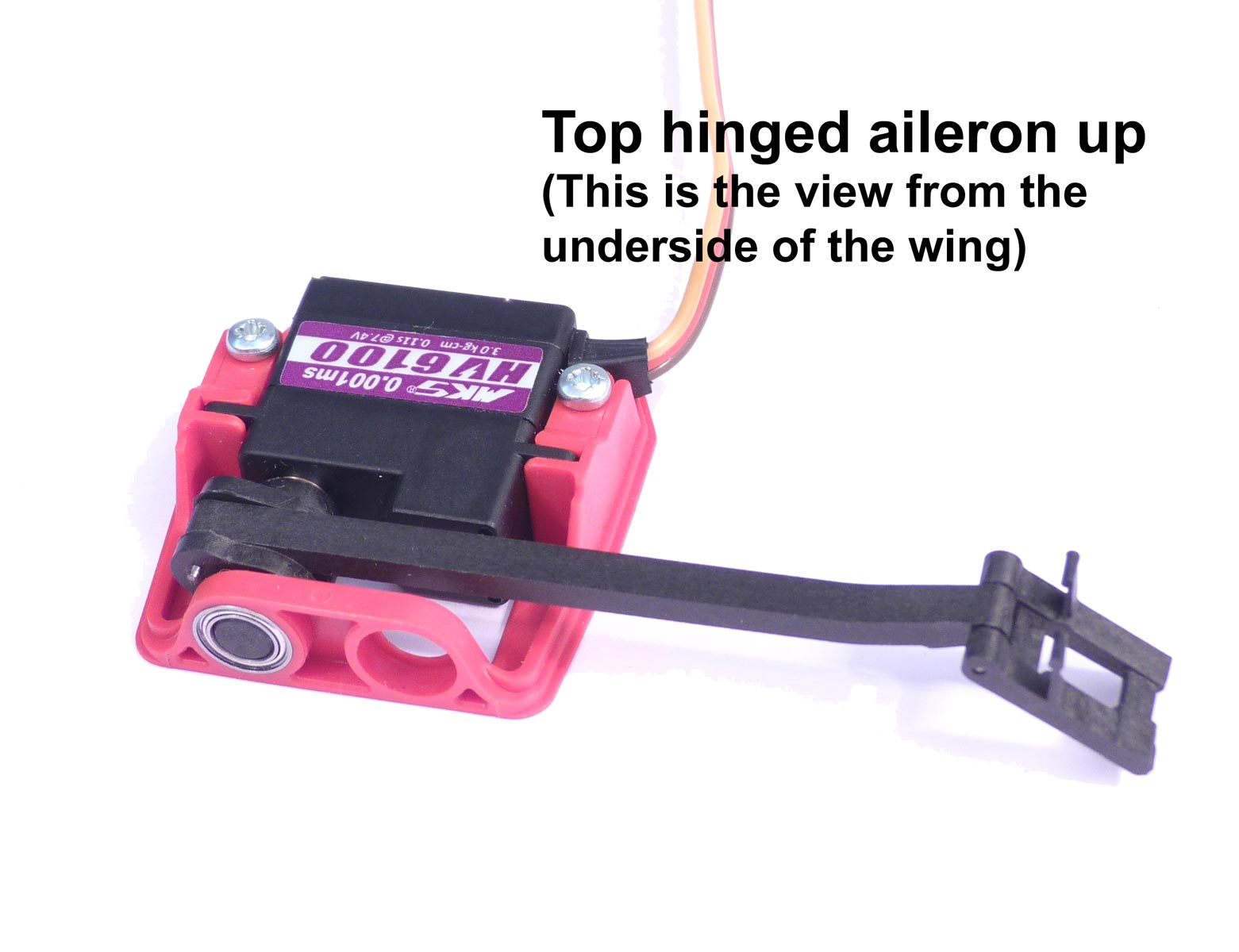

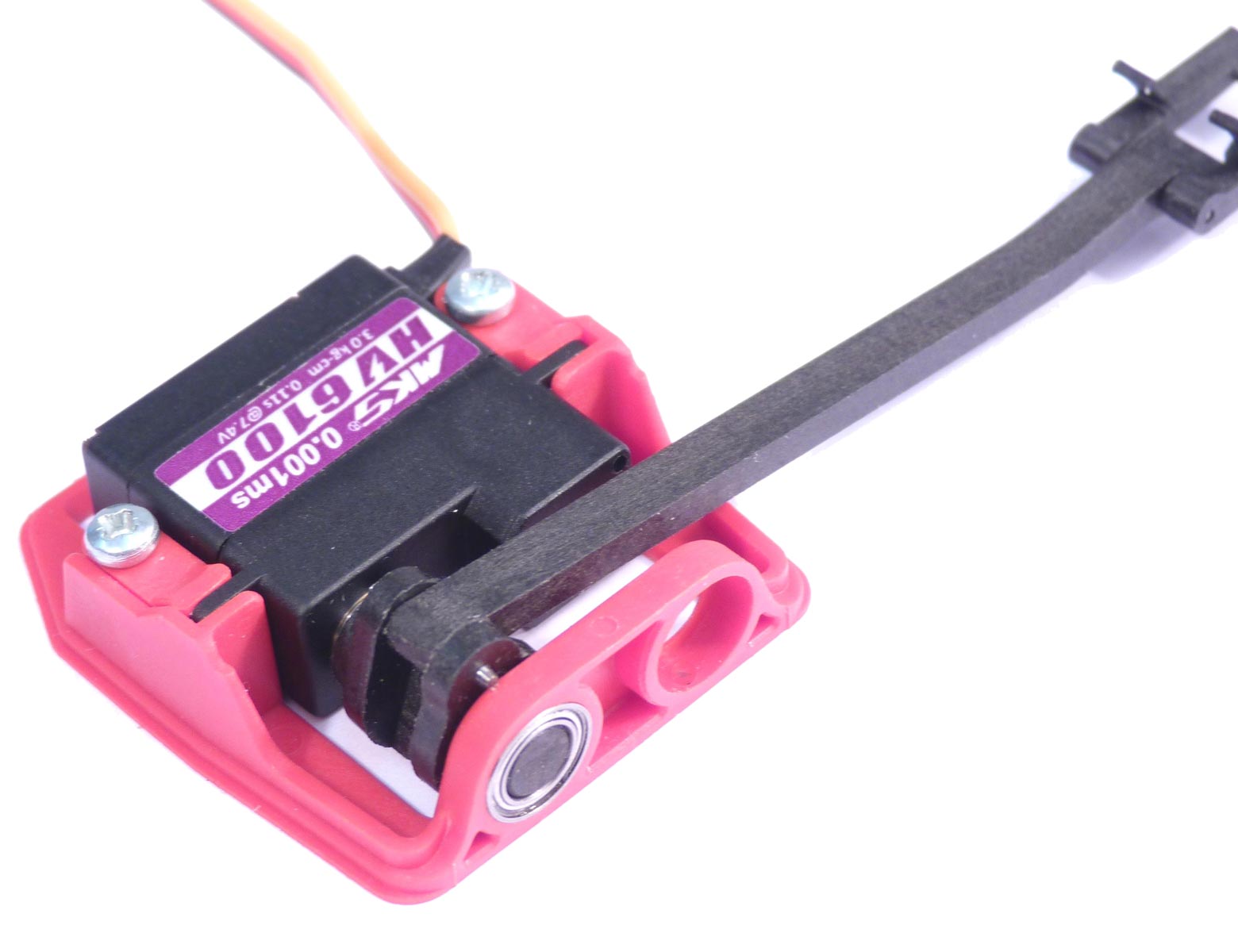

These frames and IDS linkages speed-up servo installation, keep the servo secure and rigidly mounted, and also allow easy removal for maintenance or replacement. The external bearing reduces side load at the servo output arm, reducing compliance and extending the life of the servo. The external bearing and the special rigid IDS pushrod reduces any free play, increasing the stiffness of the control surface, improving control and avoiding flutter problems.

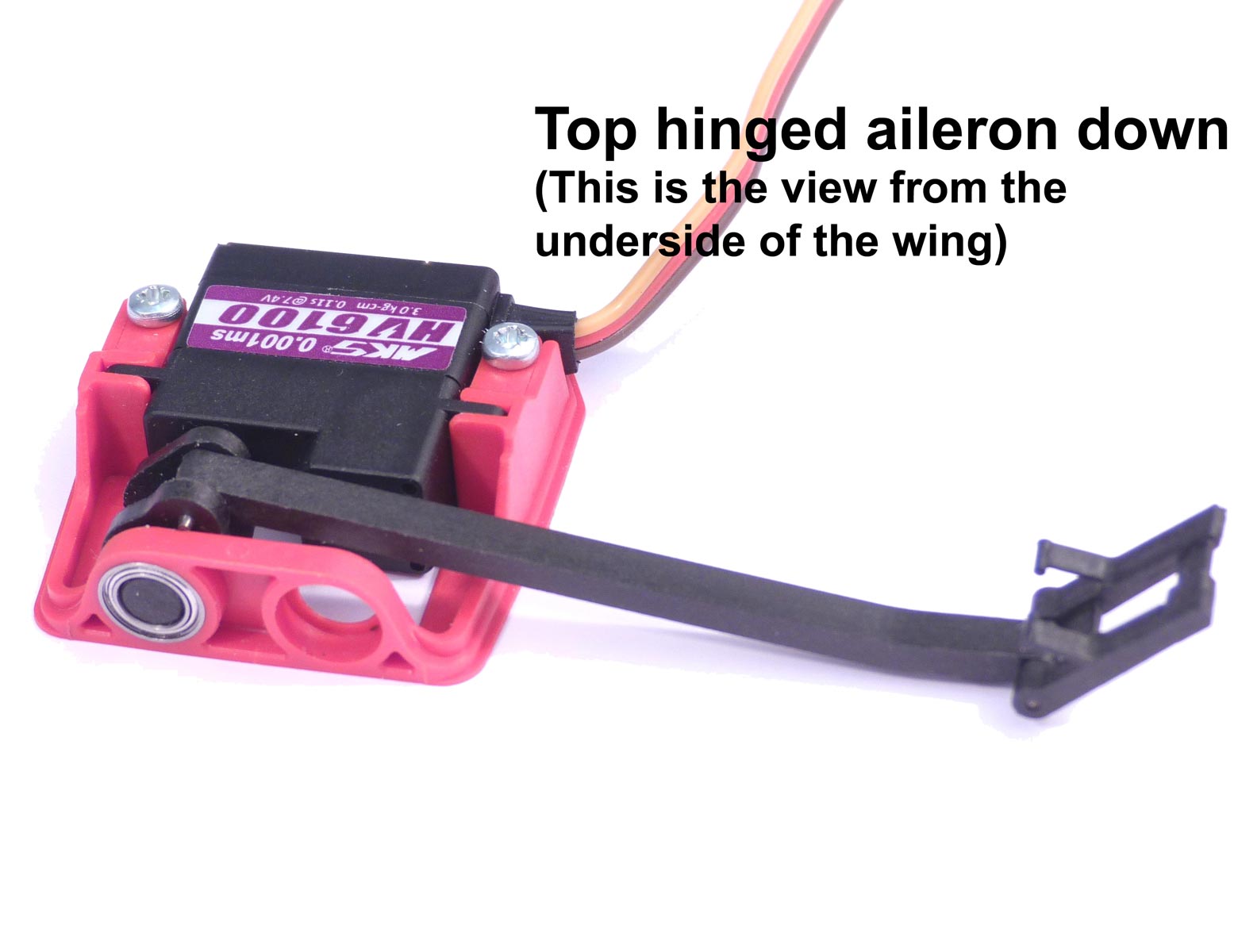

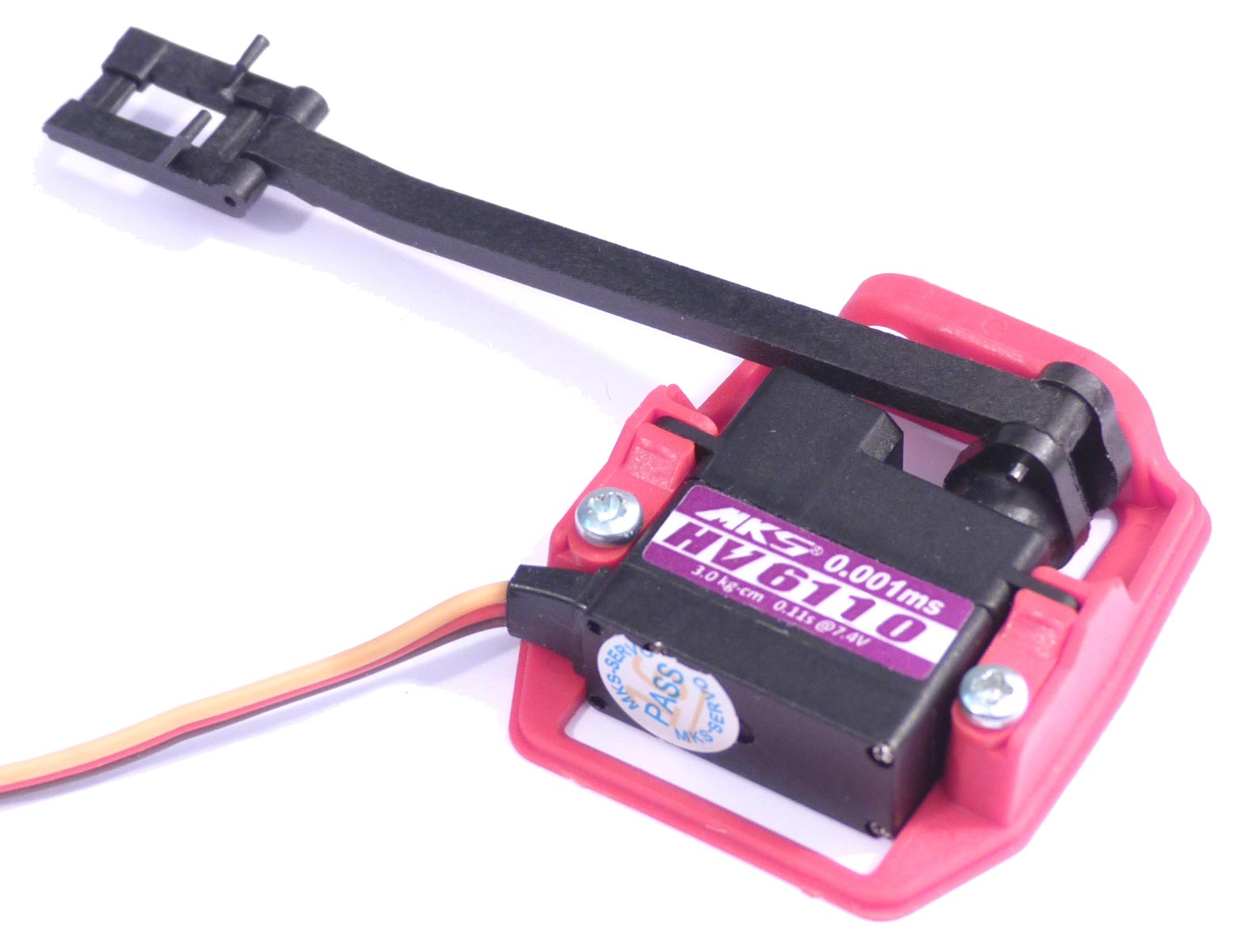

The connection between the servo and control surface is made via a ready-made hard plastic pushrod, so no cutting or gluing is required, making for a quicker and more repeatable installation. 11 of these mono pushrods are supplied in each kit, varying in length between 62 mm and 80 mm, each approx 1.8 mm longer than the next. These new IDS sets are labelled "Mono" as the pushrod is a monolithic component, not an assembly of parts that can come apart.

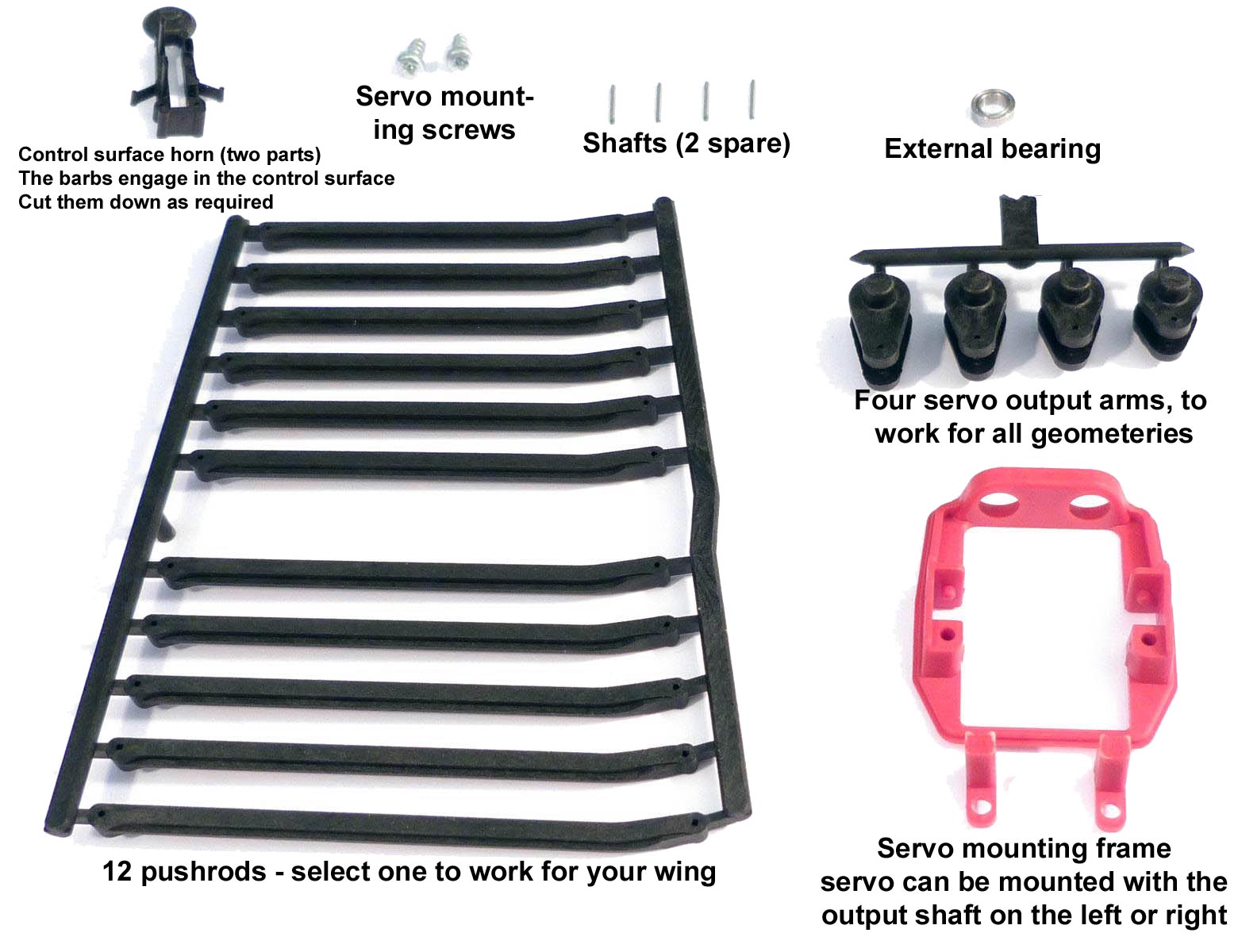

Parts supplied in this Mono IDS set:
1 servo frame
1 control surface horn
1 ball bearing
11 plastic IDS pushrods - range between 62 mm and 80 mm length
4 servo arms of different lengths
2 servo mounting screws
4 steel bearing shafts (2 are spares)
Sold singly. Add one to the basket for mounting and connecting one servo. The previous type of IDS sets with pushrods made from an aluminium tube are discontinued and replaced by this new IDS/Mono design.
No official installation guide is available but Piere Rondel has posted this excellent Servorahmen IDS Installation Guide. Also this Horn Installation Drawing is very useful.
Note these product photos may not be accurate.
Reviews 7
Ideal for the modern skinny winged F5j models. Not as difficult to fit as I've read, just a different technique required.
It is a valuable item that is not available in Japan.
Very good servo, underrated by all means..
I used these on my Shadow 2, they work great with no parasitic drag caused from exposed control horns. Linkage is tight and no slop, which can cause flutter or just not being pefectly lined up can induce a turn in flight. I just bought another set for my next glider.
Excellent service as always. The frames are first class but they take quite a bit more fitting and are fiddly but worth the effort
The frames are fine but the arm attachment that goes into the ailerons was slack and could not remove it without breaking so used part of system attached to conventional external horn.Did not want to try gluing in case got it on hinge.
