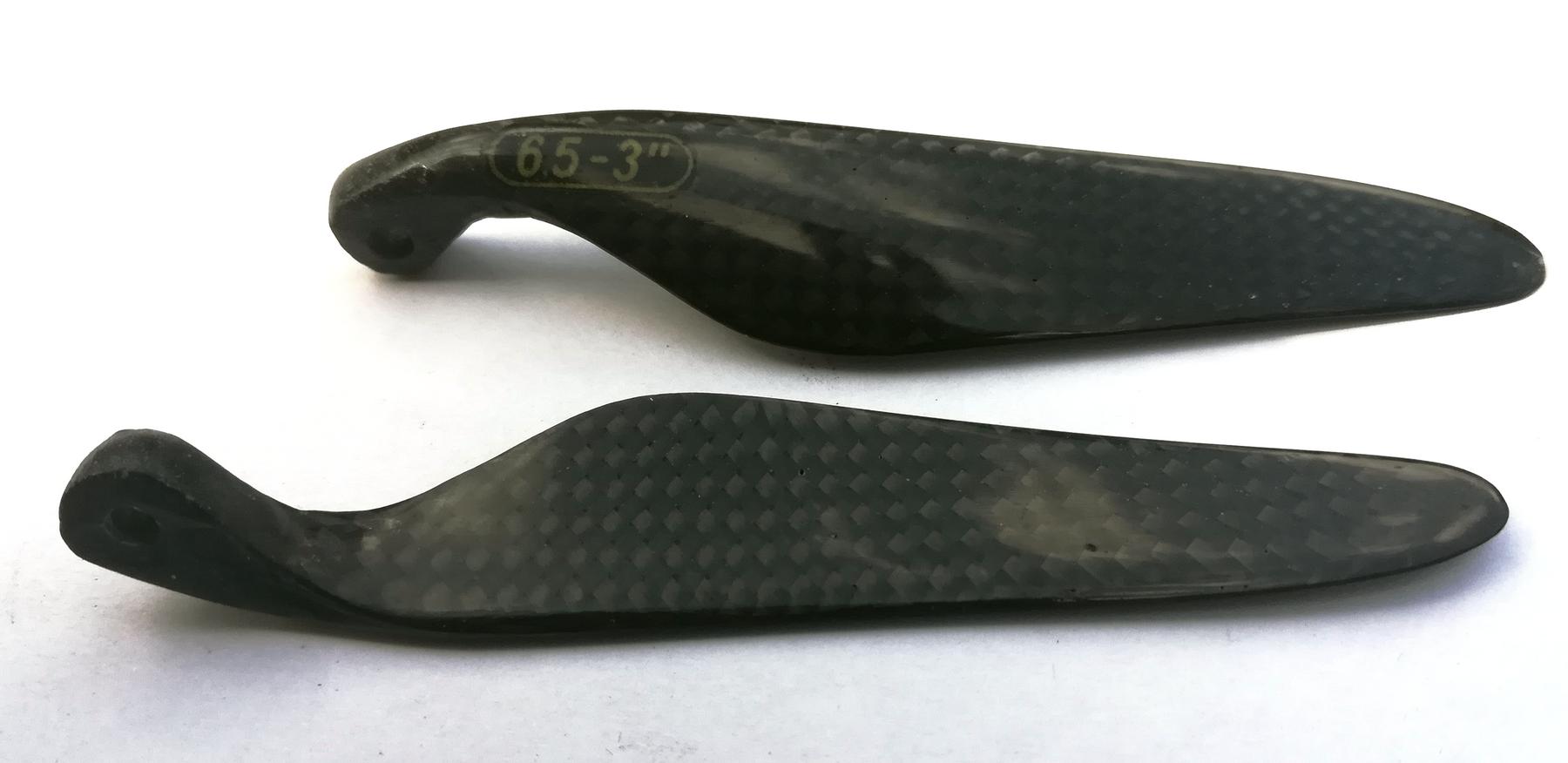

Vitaprop 6.5x3 Folding prop blades (3mm hinge pin)
Description
A pair of high quality Vitaprop 6.5 x 3 folding propeller blades suitable for the F5K and other small electric gliders. These blades have 3 mm hinge pin holes and 5 mm wide blade roots. They are compatible with most VM and GM spinner assemblies - use M3 washers to keep the blade centered when fitted to 8 mm width yokes.
Note this product consists of two carbon propeller blades only. The central spinner/yoke assembly is not included.
Note this product consists of two carbon propeller blades only. The central spinner/yoke assembly is not included.
| Vitaprop 6.5x3 Folding Propeller Blade Specifications | ||
|---|---|---|
| Prop diameter | 16.5 cm | 6.5 in |
| Prop pitch | 8 cm | 3 in |
| Weight of 2 blades | 3.5 g | 0.12 oz |
| Width of blade root | 5.0 mm | 0.197 in |
| Hinge pin hole dia | 3.0 mm | 0.118 in |
| Max power | 250 W | |
Reviews 1
David
UK
3mm pins
My original blades were for 2mm hinge pins and considerable fiddly modification was needed to adapt the prop bar to fit. Whilst this appeared to work okay when the new 3mm blades were available I retrofitted them and they seem more secure. The quality of these tiny Vitaprop blades is superb as is help from Neil.
