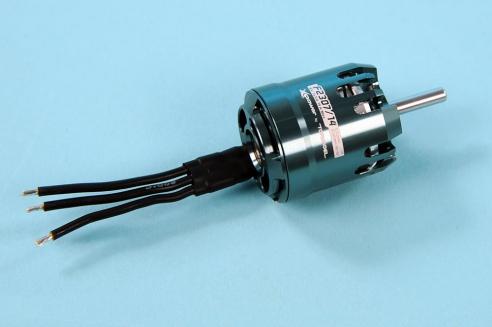

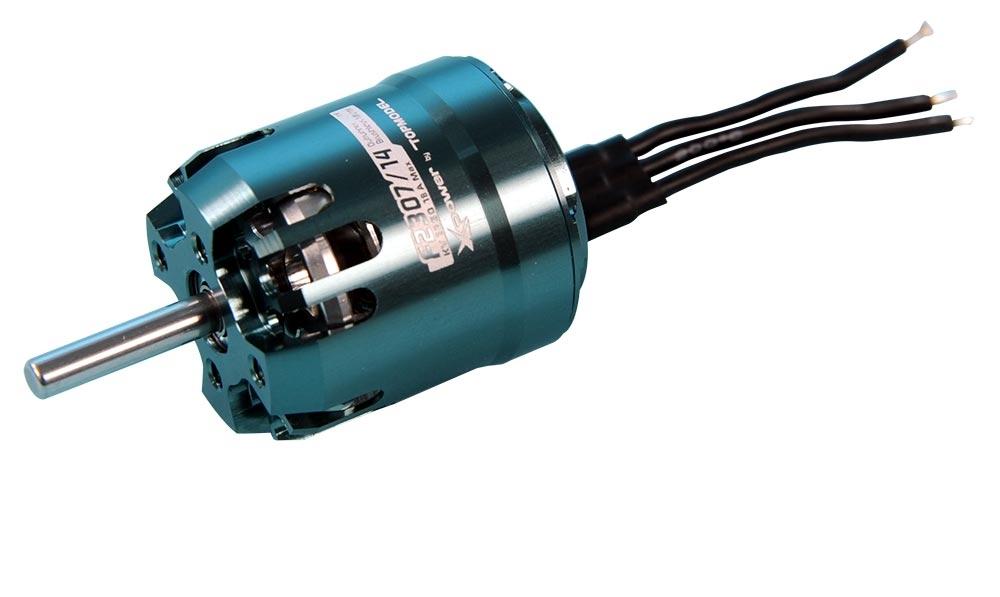

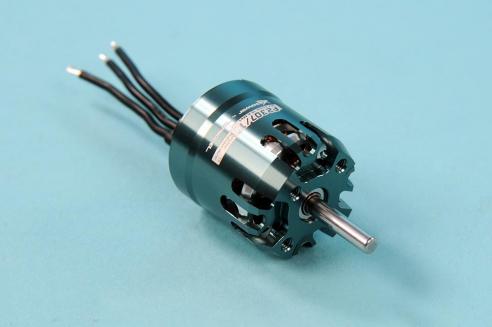

XPower F2307/14 F5K 3650 RPM/V 27g Cased Outrunner
Description
The XPower F2307/14 is an excellent high performance cased outrunner for electrified DLGs (F5K) and other small gliders up to about 2m wingspan. The 23mm diameter outer can does not rotate and the wires extend from the rear so it is perfect for installing in narrow glider noses.
Not recommended for 3S LiPo batteries.
Power Measurement
Prop: XPower Folding Prop 6x3.5" + Precision Spinner OD25mm
Controller: XPower Xreg20 V5
Battery pack: Hot-Lips 450mAh 2S1P
RPM: 16500
Current drain: 18A
Static thrust: 0.43kg
Not recommended for 3S LiPo batteries.
| XPower F2307/14 Specifications | |
|---|---|
| KV | 3650 RPM/V |
| Max current | 18A (for 30s) |
| Manufacturer's Rm | 49.3 mR |
| Measured Rm | 44.5 mR |

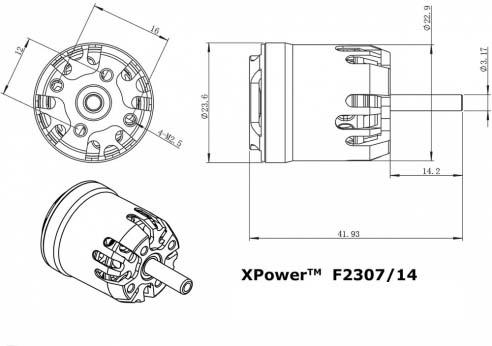

| Dimensions | Ø23.6x27.6 mm |
| Shaft diameter | 3.17 mm |
| Weight | 26.8g |
| Max number of cells | 2 LiPo |
| Recommended props | 6x3, 6x4, or 7x4 if Tx thottle throw limited to 75% |
Power Measurement
Prop: XPower Folding Prop 6x3.5" + Precision Spinner OD25mm
Controller: XPower Xreg20 V5
Battery pack: Hot-Lips 450mAh 2S1P
RPM: 16500
Current drain: 18A
Static thrust: 0.43kg
Reviews 5
Ron Russell
UK
XPower motor
If this is as good as its big brothers, it will be fantastic for F5l models.
Eirik
UK
XPower F2307/14 F5K 27g - Enough Power
Great and lighweight motor. It has been mounted and used in a TopModel Longshot 3 and it has alot of power. Very happy that i went for this motor instead of another motor made for drones. Would recommend!
Graham Lorimer
UK
XPower F2307/14 F5K 27g 3650 RPM/V
I very nicely engineered motor, haven't flown it yet but with the wires coming out the back of the motor, easy install, and with Watt meter testing and prop selection, it sounds very smooth. I look forward to flying it later in the week.
