HyperFlight 0.5/1.0 Pushrod Set
Description

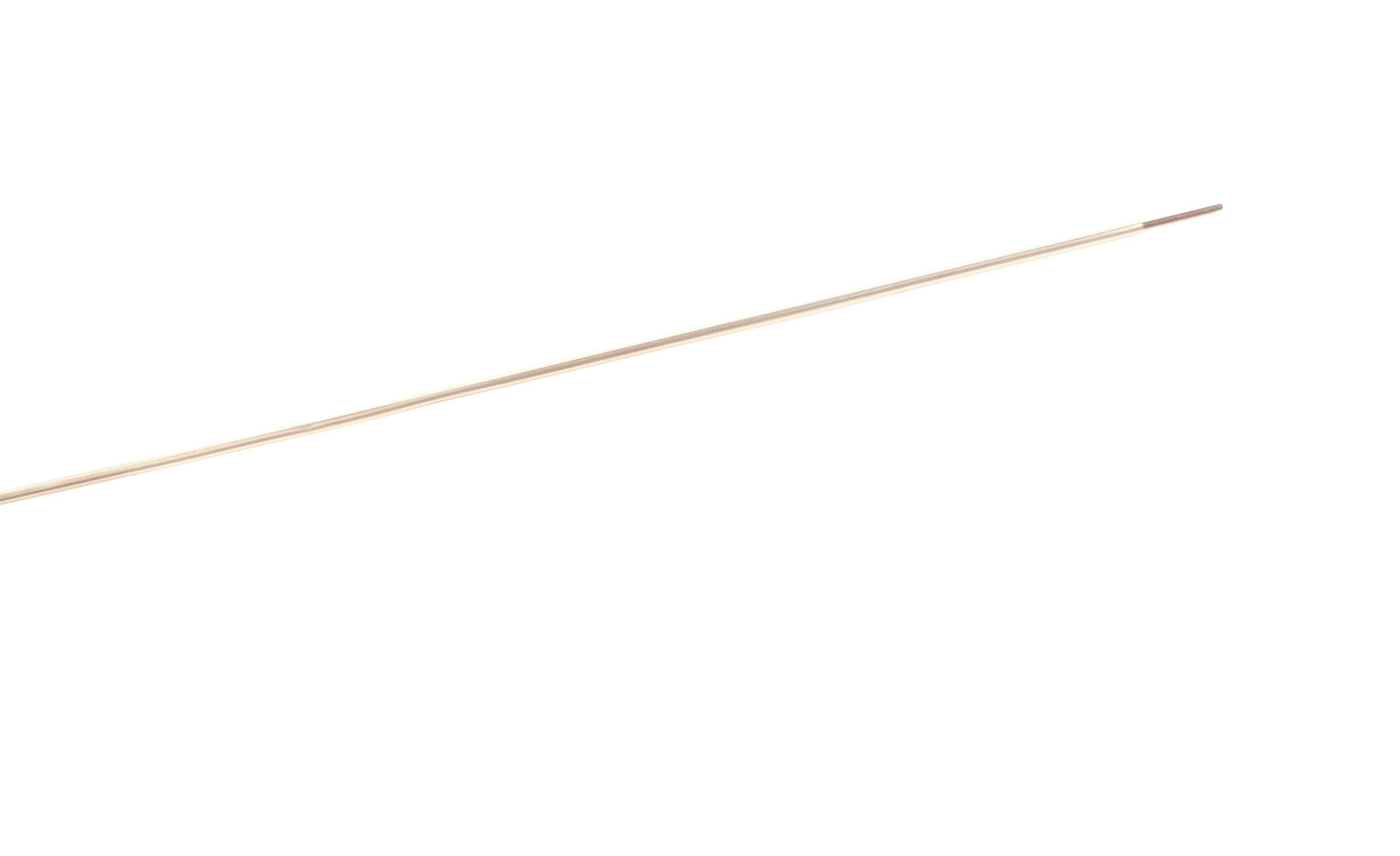

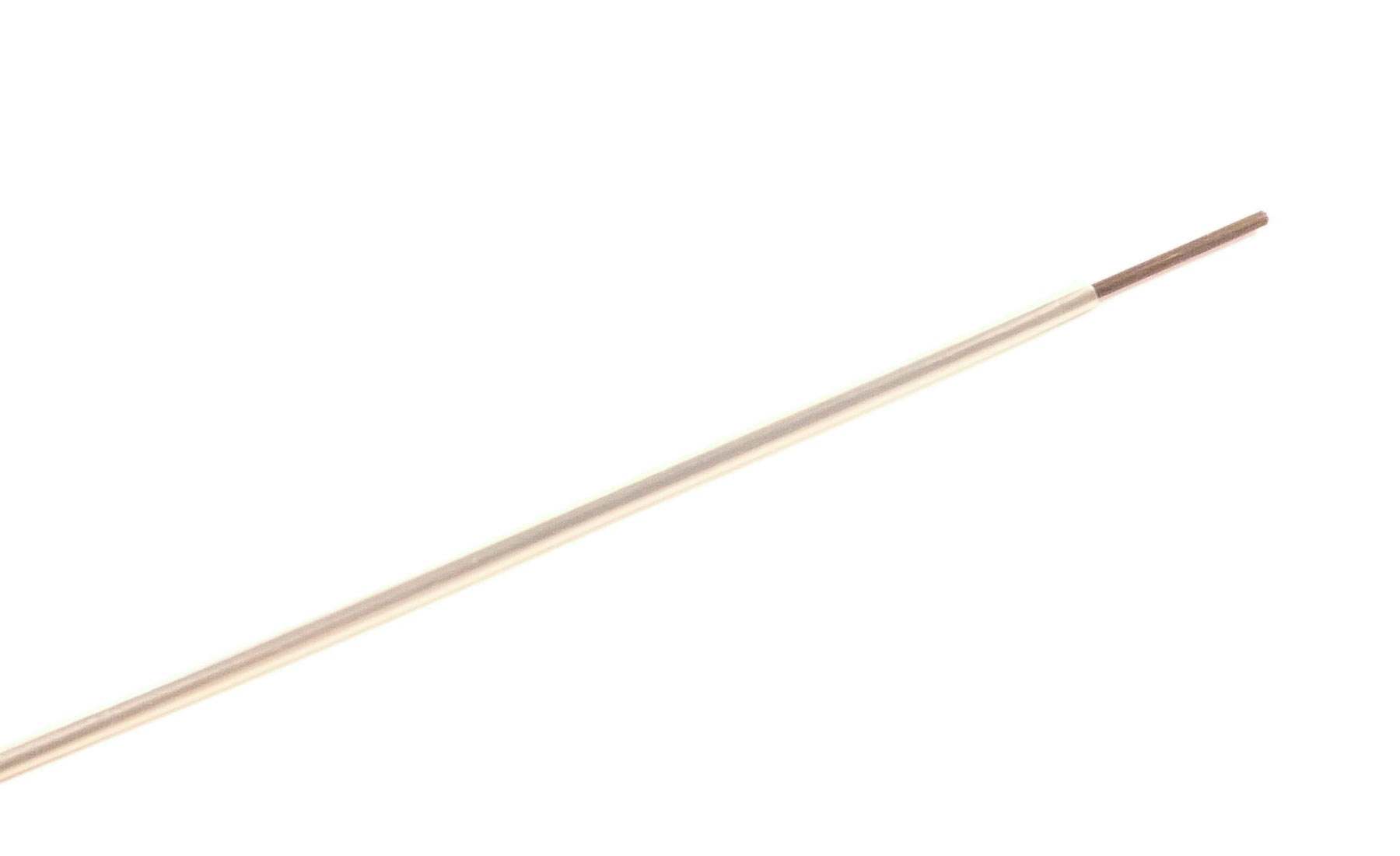

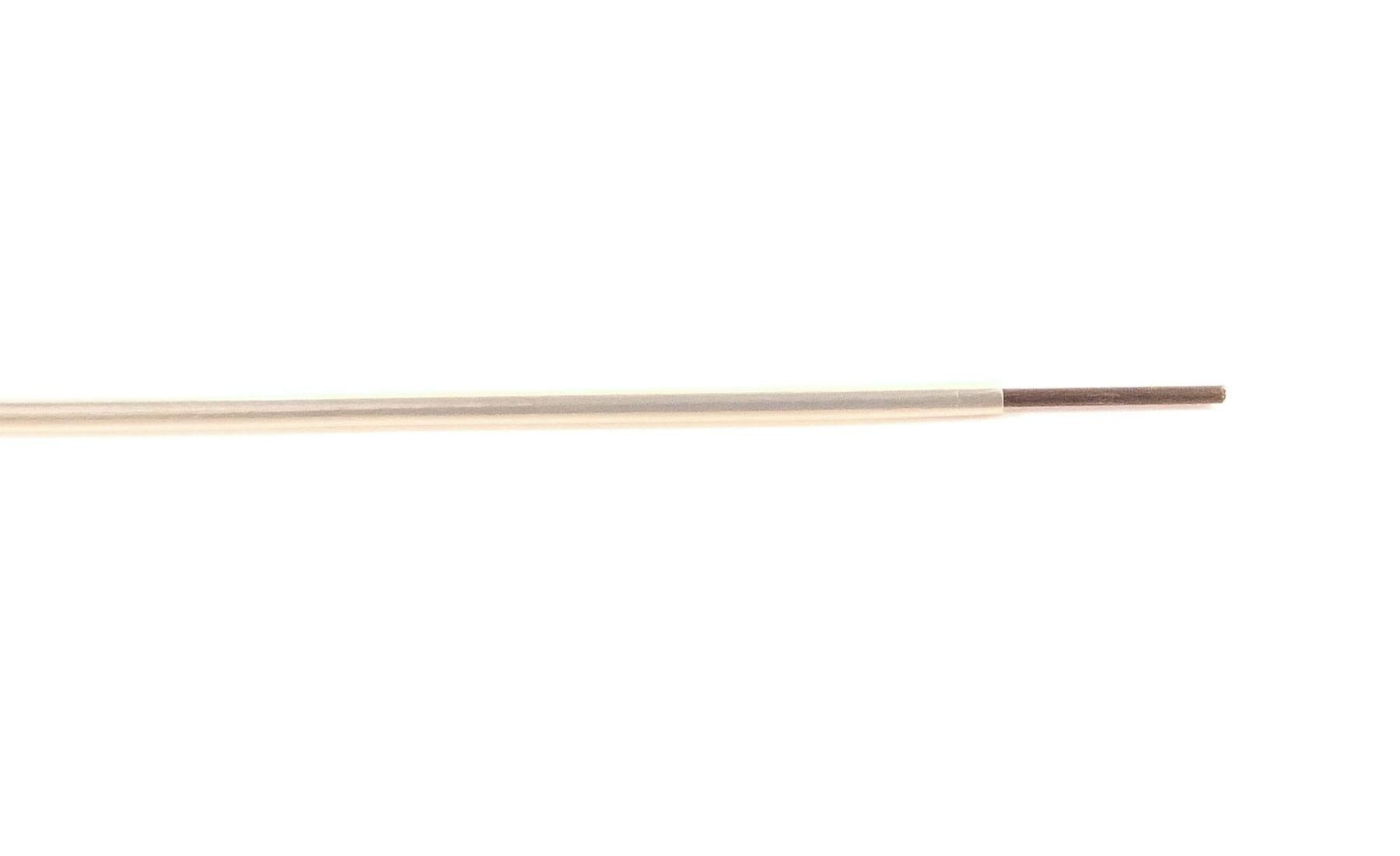

This pushrod set consists of a 0.5 mm stainless steel rod running in a 1.0 mm outside diameter PTFE tube. This excellent quality pushrod set is long and strong enough for many types of models, and for a multitude of engineering uses.
This type of inner rod and outer tube is sometimes called a Bowden Cable. It is important that the ends of the 1.0 mm outer tube are secured to the structure. It is even better if the complete outer tube run is glued in place. This can be achieved in tailbooms by temporarily fitting a piano wire inner rod and clamping the tube to the boom with magnets. Then liberally dribble in CA unto the upended boom, until the CA appears at the other end of the run.
Sold singly - one inner rod and one outer tube per set.
If the pizza box option is shown these can be sent by coiling into a pizza type box, or they can be kept straight and sent in a 1.5 m long postal tube at extra cost. If sent coiled they will straighten out well. Please remove from the pizza box with care!
22 / 26
This type of inner rod and outer tube is sometimes called a Bowden Cable. It is important that the ends of the 1.0 mm outer tube are secured to the structure. It is even better if the complete outer tube run is glued in place. This can be achieved in tailbooms by temporarily fitting a piano wire inner rod and clamping the tube to the boom with magnets. Then liberally dribble in CA unto the upended boom, until the CA appears at the other end of the run.
Sold singly - one inner rod and one outer tube per set.
| HyperFlight 0.5/1.0 Pushrod Set | ||
|---|---|---|
| Inner and Outer length | 1.5 m | |
| Inner rod diameter | 0.5 mm | |
| Rod material | Stainless steel | |
| Outer tube diameter | 1.0 mm | |
| Outer tube material | PTFE | |
| Unit weight of rod and tube | 2.2 g/m | |
| Weight of 1.5m rod and tube | 3.3 g | |
| Comparative max force | 0.5 Kg | |
If the pizza box option is shown these can be sent by coiling into a pizza type box, or they can be kept straight and sent in a 1.5 m long postal tube at extra cost. If sent coiled they will straighten out well. Please remove from the pizza box with care!
22 / 26
Reviews 9
Ricky
UK
Pushrod
Arrived the next day, as always the item was well packaged.
Robin
UK
Pushrod set
Ordered a set which arrived very quickly and it does the job very nicely, it’s very light but does like all Bowden cables needs the outer to be supported.
Jim Newberry
UK
0.5/1.0 pushrod set
As usual from Hyperflight, excellent product and first class service.
Nigel Goodwin
UK
Yery prompt delivery and perfect for the job. Better than Amazon!
Happy Customer
UK
Never received this item in my pizza box shaped parcel. There was a small hole in the corner, maybe it fell out during postage
bengt-arne englund
UK
very good Product exellent service i am very pleased.
