HyperFlight 1.5/3 Pushrod Set
Description

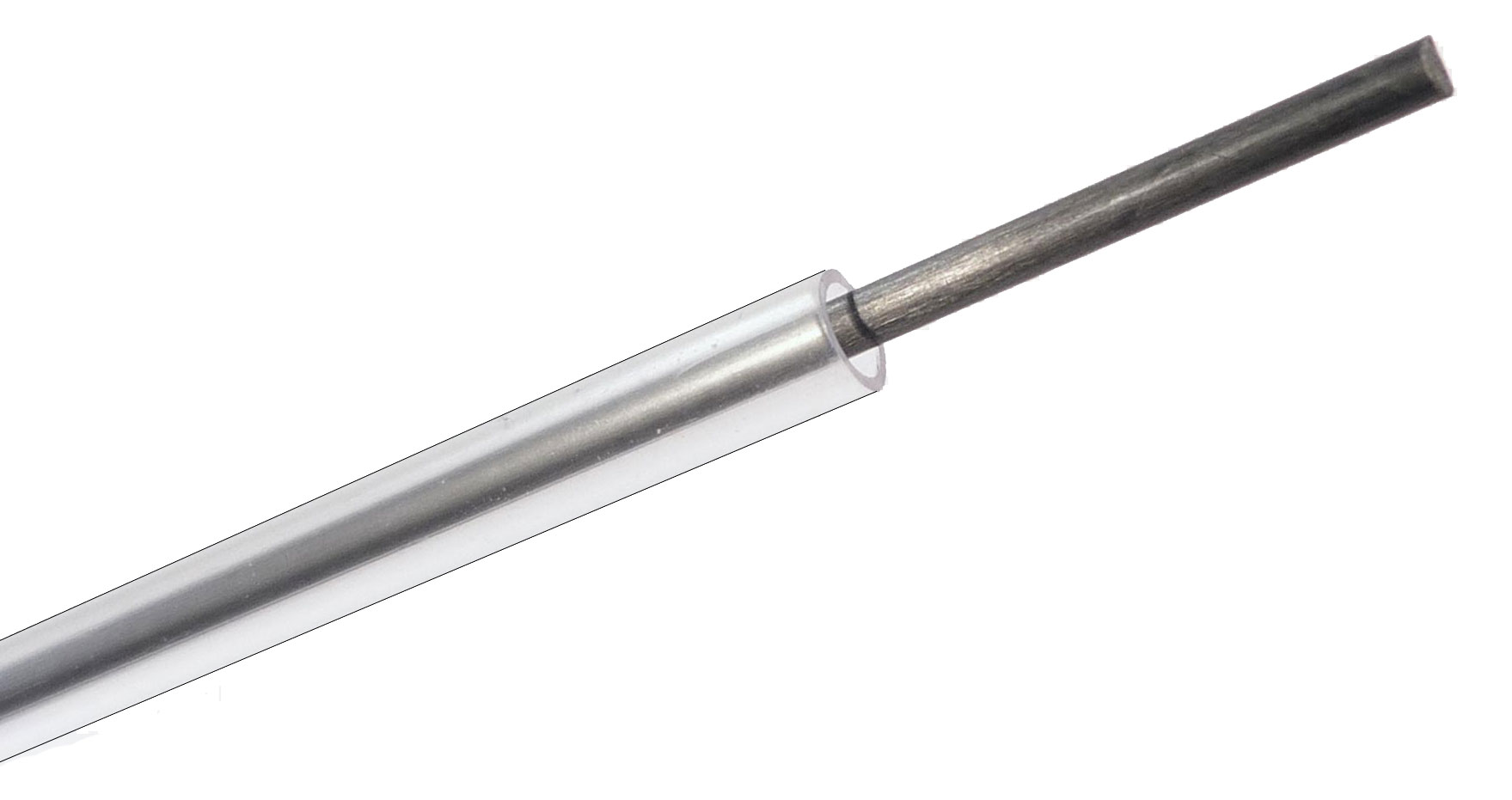

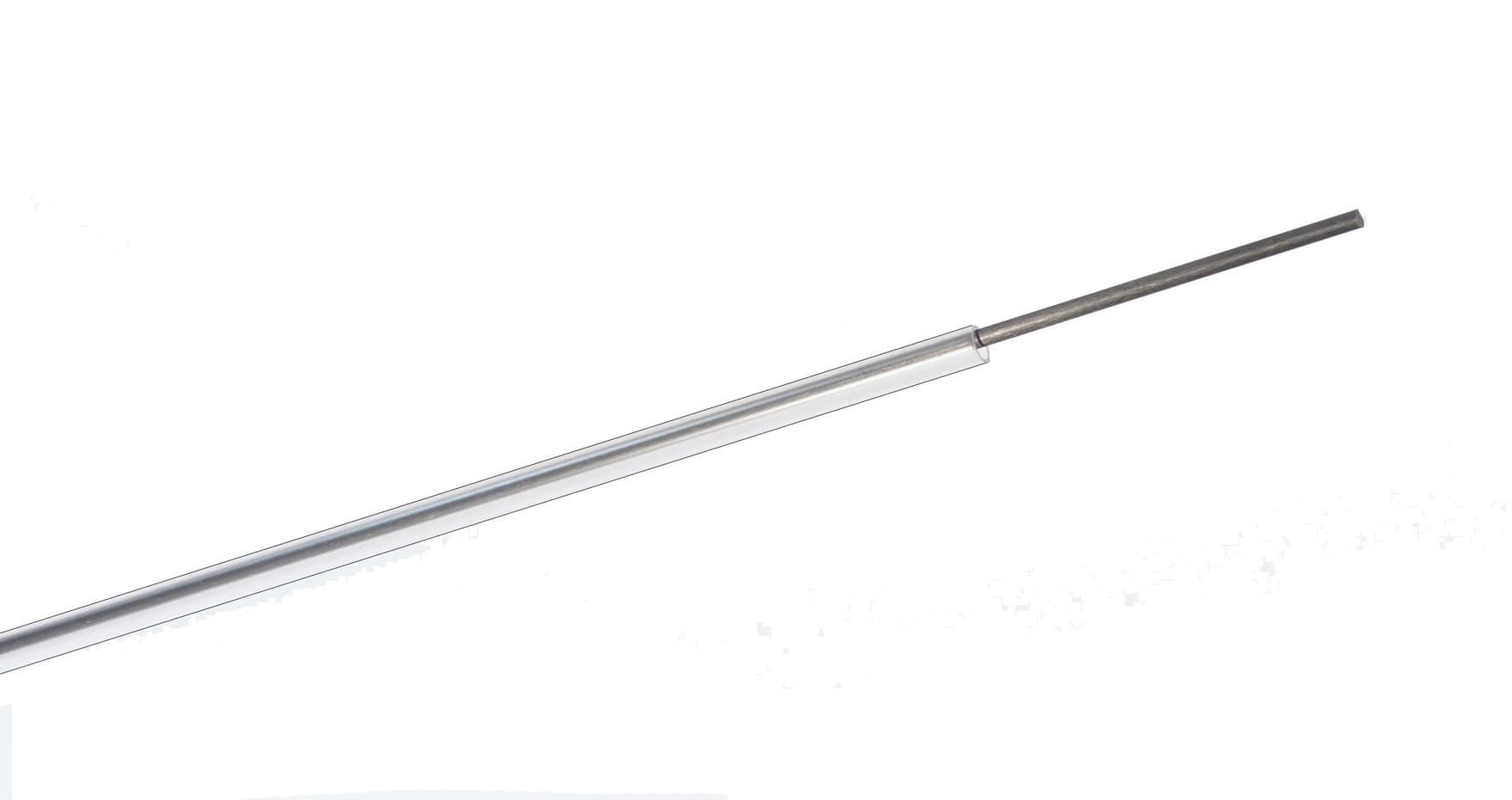

This pushrod set consists of a 1.5 mm carbon rod running in a 3 mm outside diameter Low friction rigid plastic tube. This excellent quality pushrod set is long and strong enough for many types of models, and for a multitude of engineering uses.
This type of inner rod and outer tube is sometimes called a Bowden Cable. It is important that the ends of the 3 mm outer tube are secured to the structure. It is even better if the complete outer tube run is glued in place. This can be achieved in tailbooms by temporarily fitting a piano wire inner rod and clamping the tube to the boom with magnets. Then liberally dribble in CA unto the upended boom, until the CA appears at the other end of the run.
Sold singly - one inner rod and one outer tube per set.
If the pizza box option is shown these can be sent by coiling into a pizza type box, or they can be kept straight and sent in a 1.5 m long postal tube at extra cost. If sent coiled they will straighten out well. Please remove from the pizza box with care!
This type of inner rod and outer tube is sometimes called a Bowden Cable. It is important that the ends of the 3 mm outer tube are secured to the structure. It is even better if the complete outer tube run is glued in place. This can be achieved in tailbooms by temporarily fitting a piano wire inner rod and clamping the tube to the boom with magnets. Then liberally dribble in CA unto the upended boom, until the CA appears at the other end of the run.
Sold singly - one inner rod and one outer tube per set.
| HyperFlight 1.5/3 Pushrod Set | ||
|---|---|---|
| Inner and Outer length | 1.5 m | |
| Inner rod diameter | 1.5 mm | |
| Rod material | Pulltruded carbon fibre rod | |
| Outer tube diameter | 3 mm | |
| Outer tube material | Low friction rigid plastic | |
| Unit weight of rod and tube | 7.7 g/m | |
| Weight of 1.5m rod and tube | 11.5 g | |
| Comparative max force | 14 Kg | |
If the pizza box option is shown these can be sent by coiling into a pizza type box, or they can be kept straight and sent in a 1.5 m long postal tube at extra cost. If sent coiled they will straighten out well. Please remove from the pizza box with care!
Reviews 8
Peter
UK
I like these push rods. Keep the runs as strait as possible for best results.
Lars Åkerblom
UK
Carbon pushrods
I have never had any problematiikka wit the produktio nor the service oh Hyperflight.
Rob Powell
UK
Hyperflight carbon push rods
Excellent service as usual.
Have now settled on these rods as standard for tail grous on all sports gliders to c.2M. 1.5mm is probably OK too for lightly built floaters to 3M, but by then, I'd probably go to 1.8mm. Aligned correctly they produce super smooth, slop free linkages.
