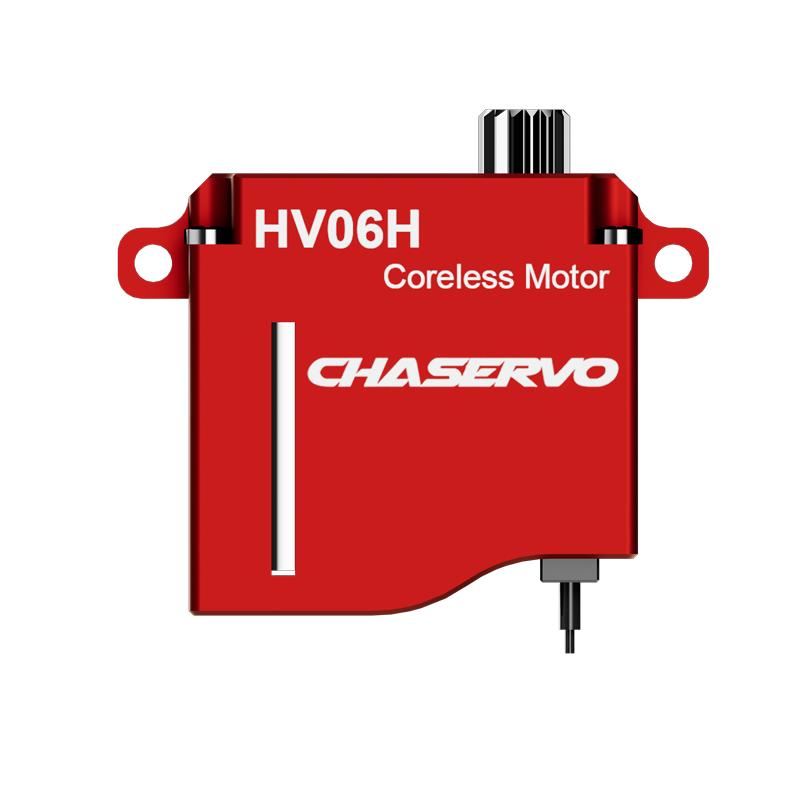

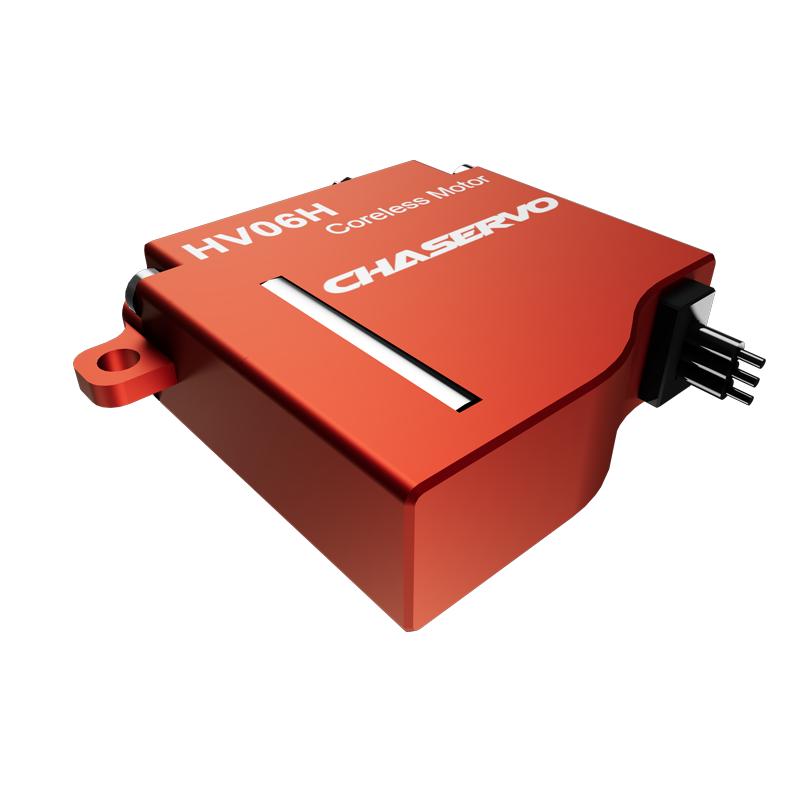

CHA HV06H Wing Servo - 2.4Kg.cm 0.05s 5.8g 6mm

Description

The new CHA HV06H is a very high spec 6mm thin servo that is ideal for gliders and small high performance models.

This -H suffix version of the HV06 servo with horizontal lugs (also called mounting tabs), to facilitate mounting in wings and tail surfaces and is for high voltage setups.

The LV06, LV06H, LV06N is the low voltage series and the HV06, HV06H, HV06N is the high voltage series.

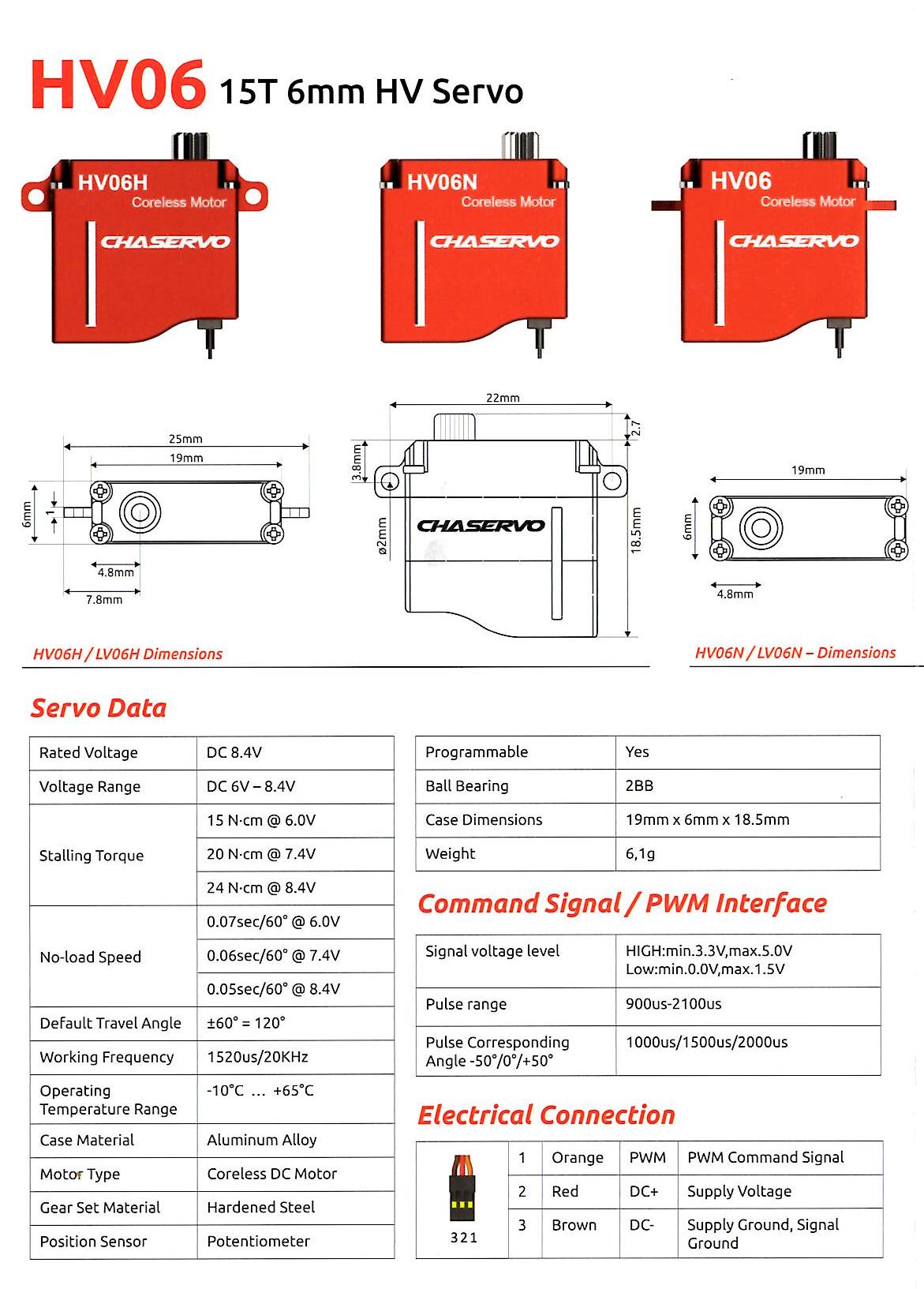

CHA HV06H Wing Servo Specifications

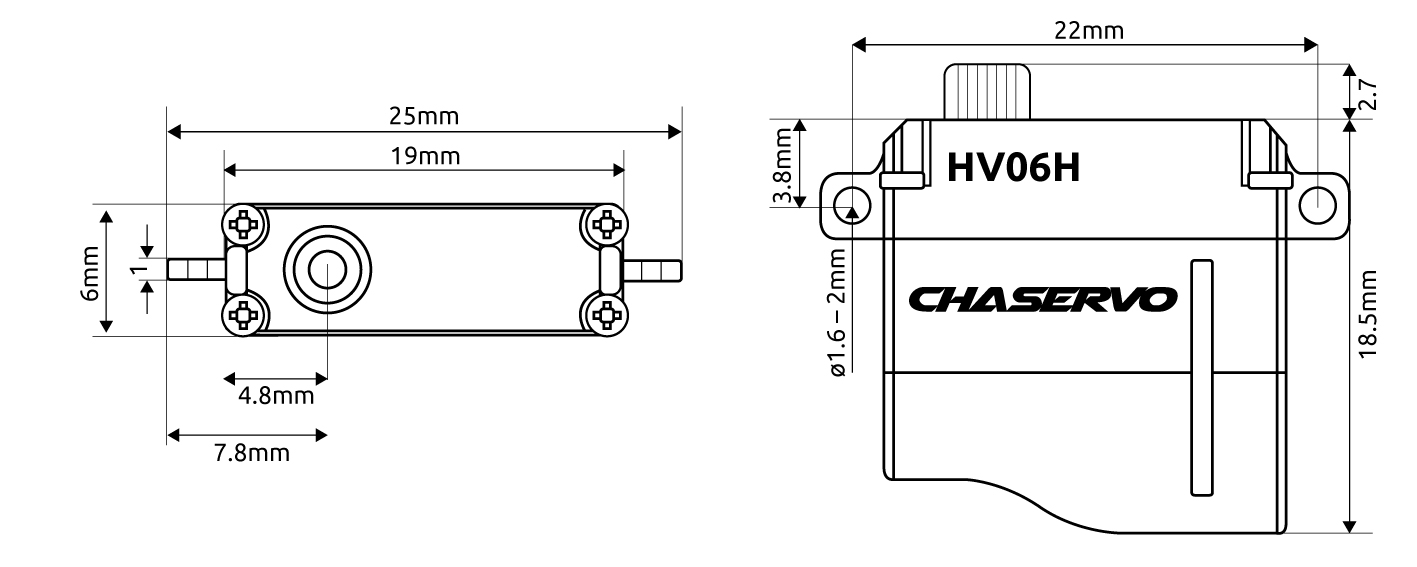

Body dimensions	19.0 mm wide x 6.0 mm thick x 18.5 mm high	0.75" wide x 0.24" thick x 0.73" high
Max dimensions	25.0 mm wide x 6.0 mm thick x 22.7 mm high	0.98" wide x 0.24" thick x 0.89" high
Stall torque (6V)	1.5 Kg.cm	21 oz.in
Stall torque (7.4V)	2 Kg.cm	28 oz.in
Stall torque (8.4V)	2.4 Kg.cm	33 oz.in
Weight	5.8 g	0.20 oz
Lead length	14 cm	5.5 in
Operating speed (6V)	0.07 sec/60°
Operating speed (7.4V)	0.06 sec/60°
Operating speed (8.4V)	0.05 sec/60°
Operating voltage	6V to 8.4V
Operating temperature	-10 to 65 °C
Bearings	2 Ball bearings
Gear material	Hardened Steel
Case material	Aluminum Alloy
Motor type	Coreless DC motor
Working frequency	2000 Hz
Dead band/resolution	1 µs
Pulse width for ± 60º	(L) 920 µs - (0°) 1520 µs- (R) 2120 µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer
Supplied accessories	2 double sided arms , 2 single sided arms, 2 arm mounting screws, 4 servo mounting screws.
