32mm CN-U Spinner (Requires Collet)
Description

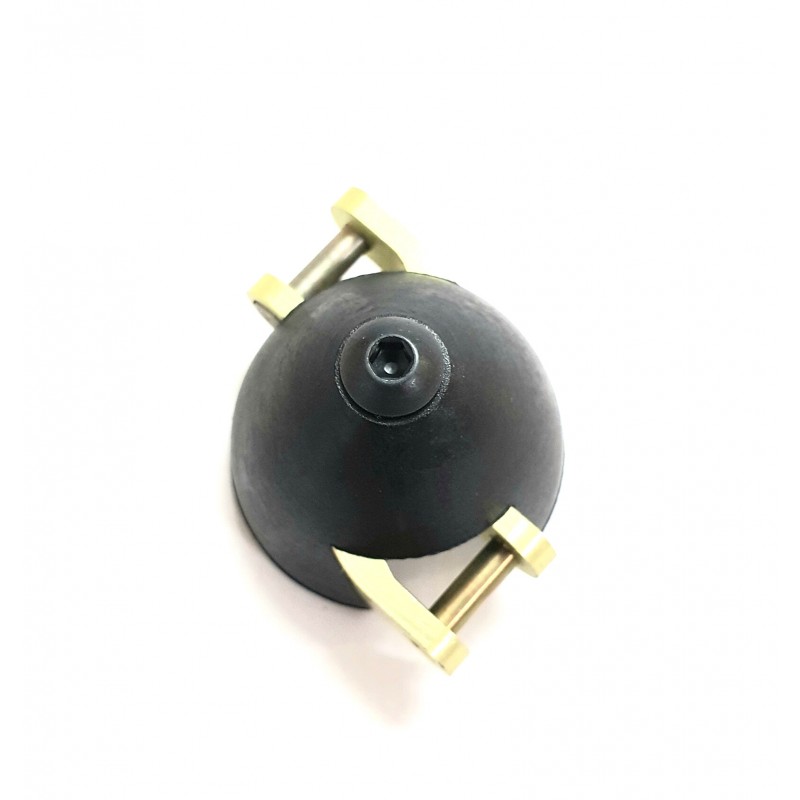

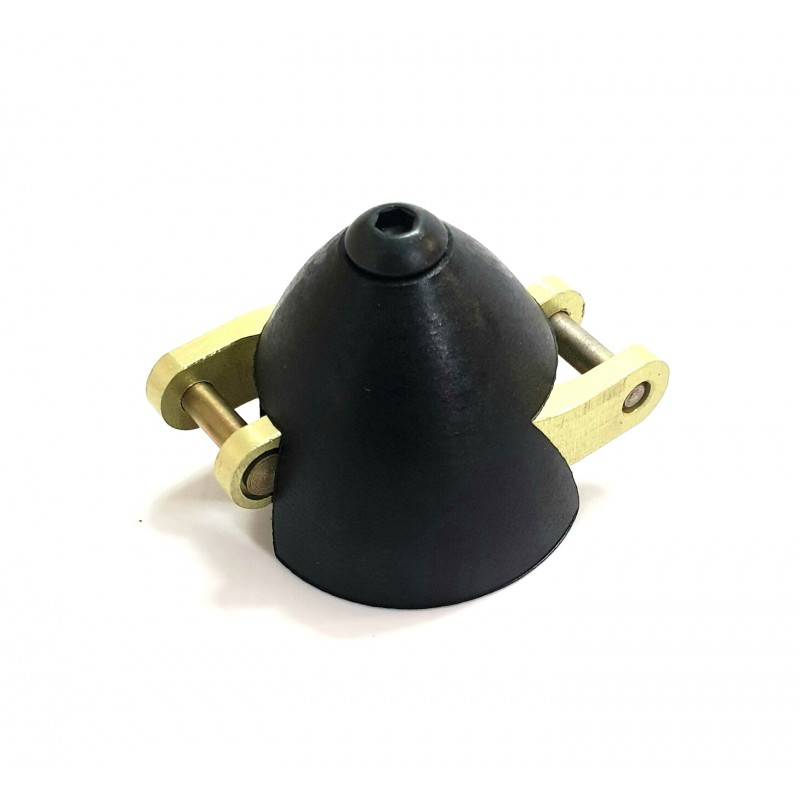

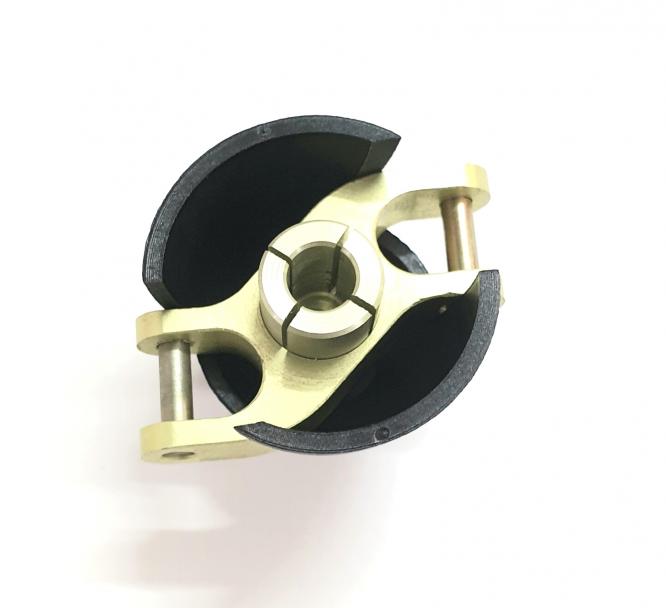

The CN-U 32 mm Spinner is a good quality spinner and yoke assembly developed by CN models. It is very similar to the Vladimir's Models HyperSpinner we used to sell but uses a conical collet for motor shaft fixing, not a grub screw. Collets are available in most sizes from 3mm to 6mm and need to be purchased separately.

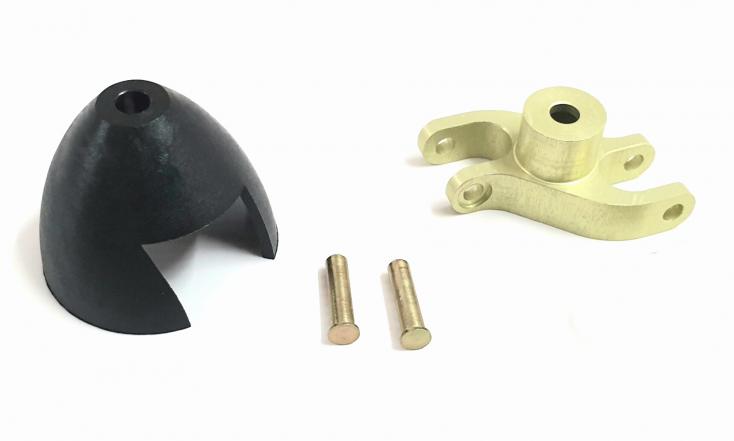

An innovative feature of this design is that the yoke can take either 30 mm or 32 mm spinner cones so the spinner diameter can be changed simply by swapping the plastic part while retaining the same hub and collet.
Blades and collet not included - select to suit your motor/gearbox.
An innovative feature of this design is that the yoke can take either 30 mm or 32 mm spinner cones so the spinner diameter can be changed simply by swapping the plastic part while retaining the same hub and collet.
Blades and collet not included - select to suit your motor/gearbox.
| CN Models CN-U 32 mm Spinner Specification | |
|---|---|
| Diameter | 30 mm |
| Distance across hinge pins | 28.5 mm |
| Hinge pin diameter | 3 mm |
| Blade root width | 8 mm |
| Weight | 11.6 g |
Reviews 4
Rex
UK
Good Spinner
I have several CN spinners of various sizes - very well made and do the job well.
Carl Shorter
UK
CN-U Spinner + Collet + Vitaprop blades = Great!
Used a few of these spinners now and love them. Robust (fence post tested ha ha), compact, and hold the prop blades snug against the fuselage. The 32mm was perfect for my Kavan Resco.
