Brass M3 7.5mm Horn (2)
Description

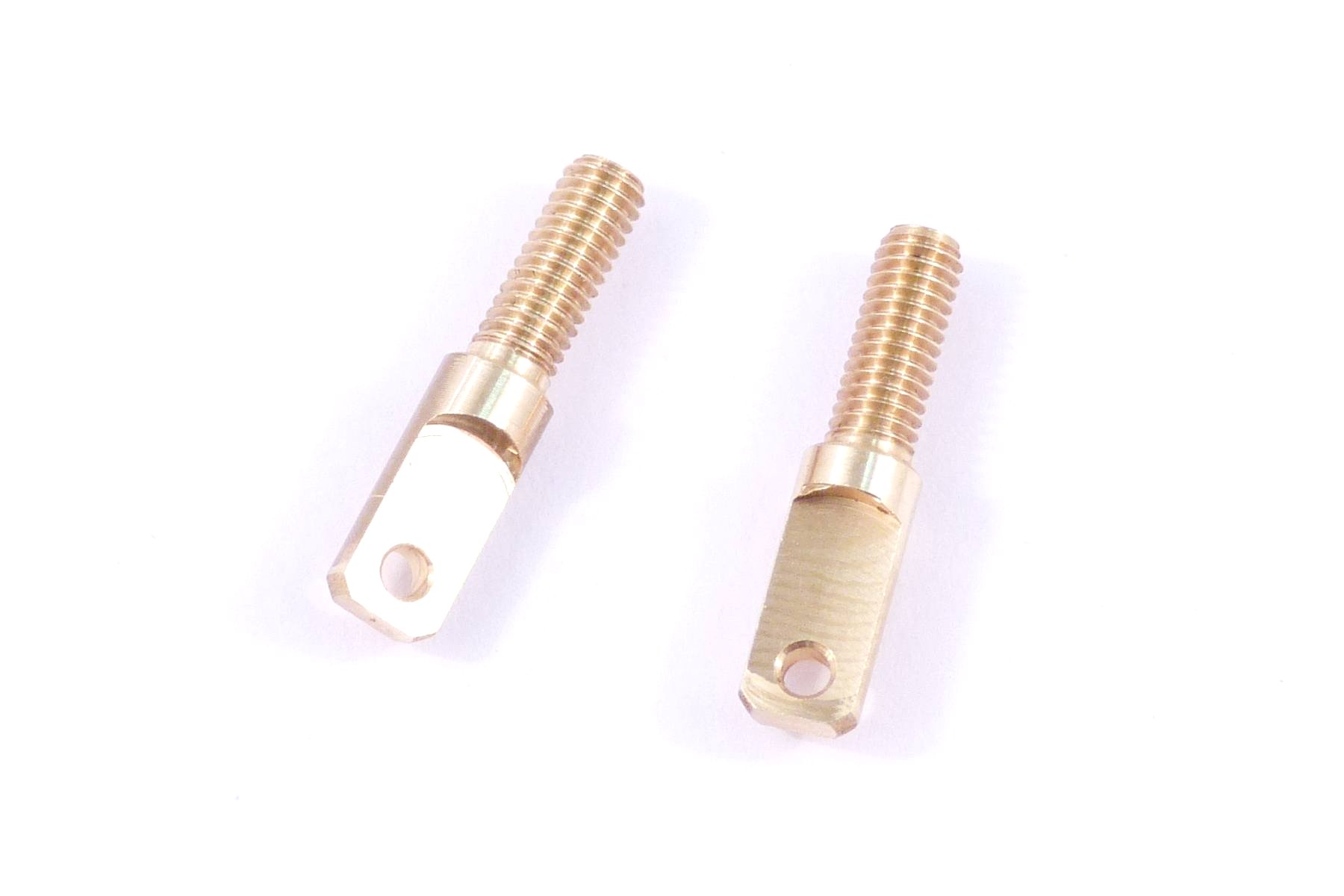

A pair (2) of high quality brass aileron or flap horns with an M3 threaded shaft.
Distance from the threaded shoulder to the centre of the hole: 7.5 mm
Length of the threaded shaft: 9.7 mm - this can be shortened if required.
Drilled 1.6 mm. This is a light interference fit on the Sullivan clevis, giving a totally slop-free linkage.
Material: Brass
As used on Vladimir's Models planes.
Distance from the threaded shoulder to the centre of the hole: 7.5 mm
Length of the threaded shaft: 9.7 mm - this can be shortened if required.
Drilled 1.6 mm. This is a light interference fit on the Sullivan clevis, giving a totally slop-free linkage.
Material: Brass
As used on Vladimir's Models planes.
| Brass M3 7.5 mm Horn (2) Specifications | |
|---|---|
| Hole centre to thread | 7.5 mm |
| Hole Size | 1.6 mm |
| Thread Diameter | M3 |
| Thread Length | 7.5 mm |
| Material | Brass |
