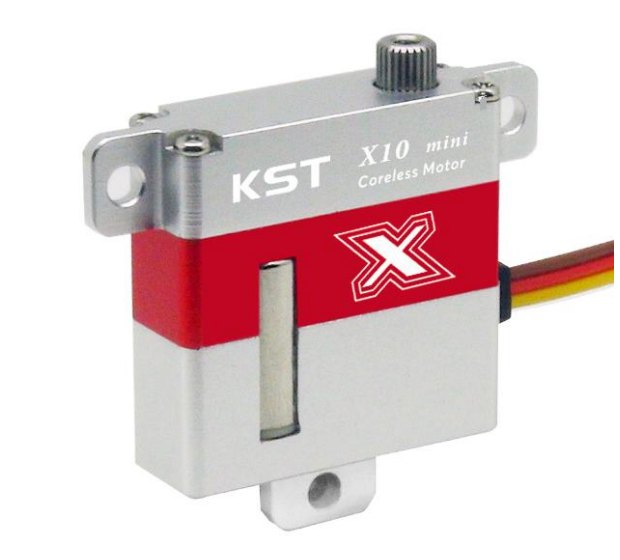

KST X10 Mini V8 Wing Servo - 7.5Kg.cm 0.09s 23.0g 10mm
Description

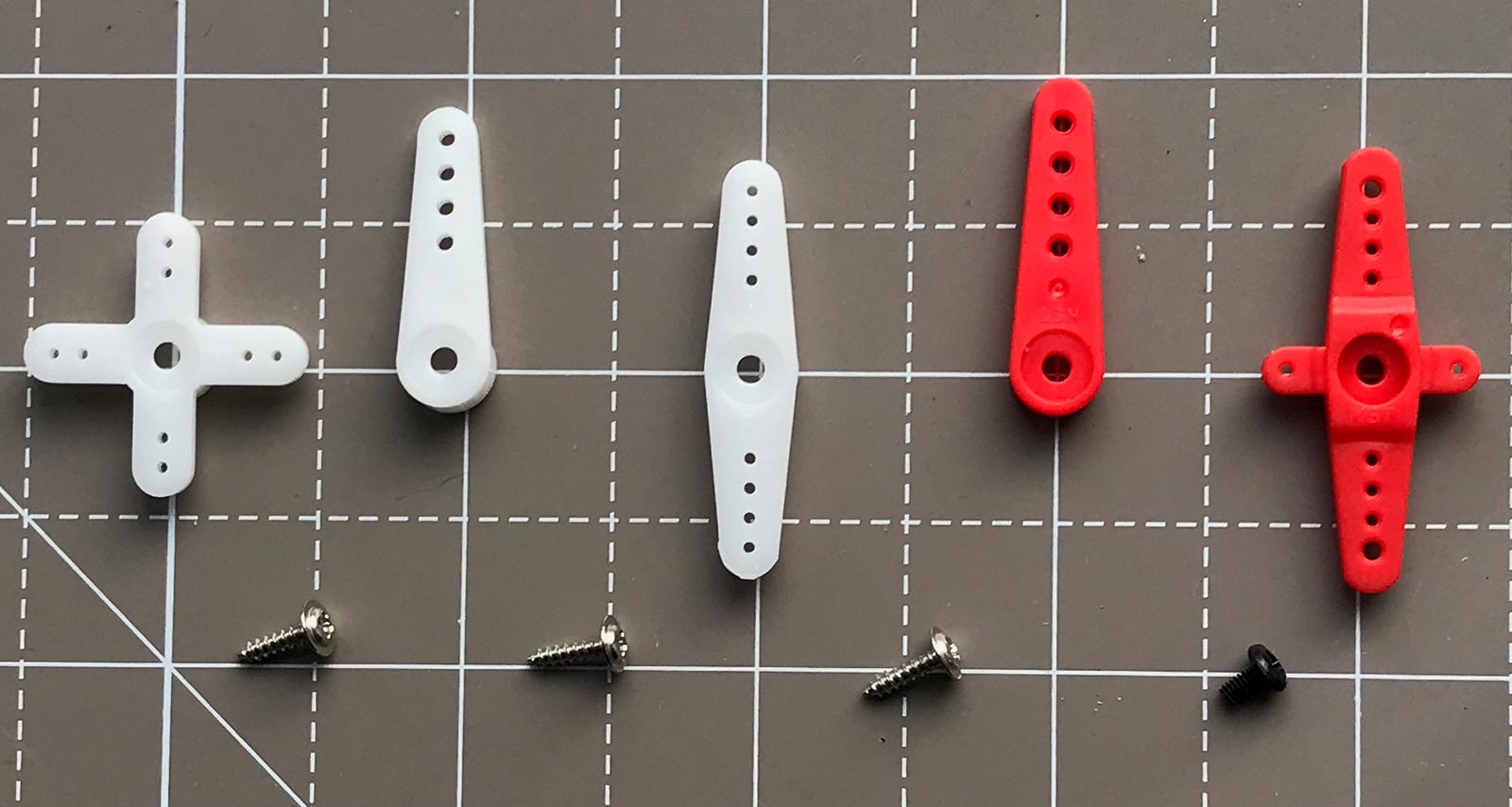

Supplied accessories include two strong red nylon output arms, and three normal strength white nylon output arms.
The accessories include two strong nylon red output arms, and three normal strength nylon white output arms.
KST X10 V8 Mini Features
- Slim 10 mm body
- Excellent 7.5 Kg.cm torque
- Compact and light weight design
- Good torque and speed
- Wide 4S NiMH to 2S LiPo voltage range
- Excellent heat dissipation
- 7075 Alloy casing
- Hardened Steel gears
- Designed for lightweight high performance RC Gliders
| KST X10 Mini V8 Wing Servo Specifications | ||
|---|---|---|

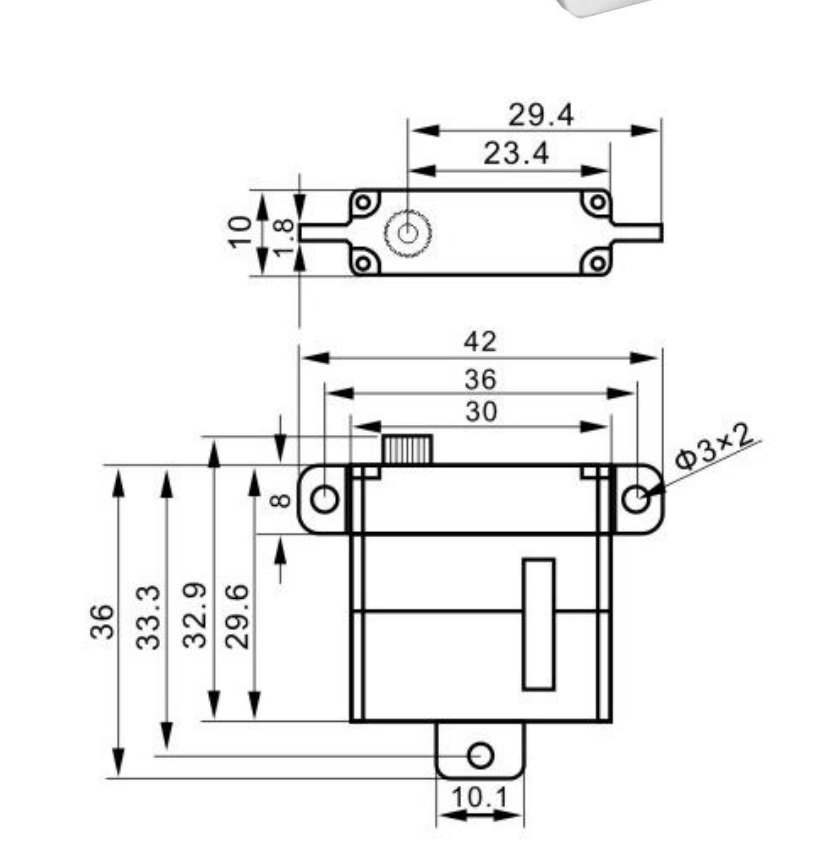

| Body dimensions | 30.0 mm wide x 10.0 mm thick x 29.5 mm high | 1.18" wide x 0.39" thick x 1.16" high |
| Max dimensions | 42.0 mm wide x 10.0 mm thick x 39.0 mm high | 1.65" wide x 0.39" thick x 1.54" high |
| Stall torque (4.8V) | 4.5 Kg.cm | 62 oz.in |
| Stall torque (6V) | 5.5 Kg.cm | 76 oz.in |
| Stall torque (8.4V) | 7.5 Kg.cm | 104 oz.in |
| Weight | 23 g | 0.81 oz |
| Lead length | 15 cm | 5.9 in |
| Operating speed (4.8V) | 0.16 sec/60° | |
| Operating speed (6V) | 0.13 sec/60° | |
| Operating speed (8.4V) | 0.09 sec/60° | |
| Operating voltage | 4.8V to 8.4V | |
| Operating temperature | -10 to +50 °C | |
| Bearings | 2 ball races | |
| Gear material | Hardened steel | |
| Case material | 7075 aluminium | |
| Motor type | Coreless DC | |
| Working frequency | 333 Hz | |
| Dead band/resolution | 2 µs | |
| Pulse width for ± 60º | 900-2100 µs | |
| Digital | Yes | |
| Programmable | No | |
| Position feedback | Potentiometer | |
| Supplied accessories | 5 strong plastic output arms, 2 arm retaining screws, 3 mounting screws | |
| Optional accessories | Ply Frame for KST X10 Mini, Integrated Drive System/Mono for the KST X10, Frame with bearing for the KST X10 | |
Reviews 23
Good strong reliable close tolerance must start using more when needed
I have been using KSTX10's for the last 16 months . I have found them to be reliable, well made , and for their size they are perfect for what I wanted them for . I have now fitted these in several models. As for the service from Hyperflight. Just brilliant .
as ever great service from hyperflight. servos area good too! good fairly economic servos being used for ailerons and flaps.
as ever great service from hyperflight. servos area good too! good fairly economic servos being used for ailerons and flaps.
bought as a replacement to some old kst 135. same size but improvement over them and less servo noise. they are performing well in ailerons. delivery excellent as ever
bought as a replacement to some old kst 135. same size but improvement over them and less servo noise. they are performing well in ailerons. delivery excellent as ever
Never had a bad kst yet I got 4 for my new ccm vantage from ccm excellent service as always from hyperflight next day delivery as always great price thanks again
Very good size for most servo hatches in hollow moulded wings allowing access to all three mounting screws which was sometimes a problem with the bigger version. They could improve these servos even further with finer teeth on the drive output to connector so less sub-trim is required between left and right orientation matching.
Good for glider wings fast powerful economic and reliable. Fast delivery no problems
Communication top class as always. Premium product at the right price. Exceptionally fast delivery (ordered 11am on the Wednesday, waiting for me after work on the Thursday). Also ordered wrong item 1st time round, returned boxed for full refund without question. Pleasure to deal with. My goto supplier. Thanks again
Perfect servo for all 3 - 4m gliders. Powerful, light, compact size & reliable
More X10's ...arrived the next day ... what more can we say :-)
More X10's ... as ever, first class service from Hyperflight :-)
Clean fit in the wings of my 4m Enigma!!!...Clean service also!!!!
Using these to drive the flaps on my 3.8m F5J Explorer. They work perfectly, driving the flaps down to more than 70 degrees. I am using them with a BEC voltage of 5.3 to 5.5V.
Despite Brexit.
I still buy from Hyperflight because of their friendly approach to business and a swift postage time.
With thanks Hyperflight,
Adrian.
Dublin, Rep of Ireland.
I bought these on the strength of my last purchase of KST servos which I so far have no complaints about. I am using these in 1:3.5 scale gliders.
Excellent servos. Fast and precise with excellent centering. I run them on a Life pack or a 5 cell NiHM pack which provide more than enough speed and power. Use the servo frames with the external bearing and they are easy to fit and extremely robust.
