X-Dream Elekro 2m
Description

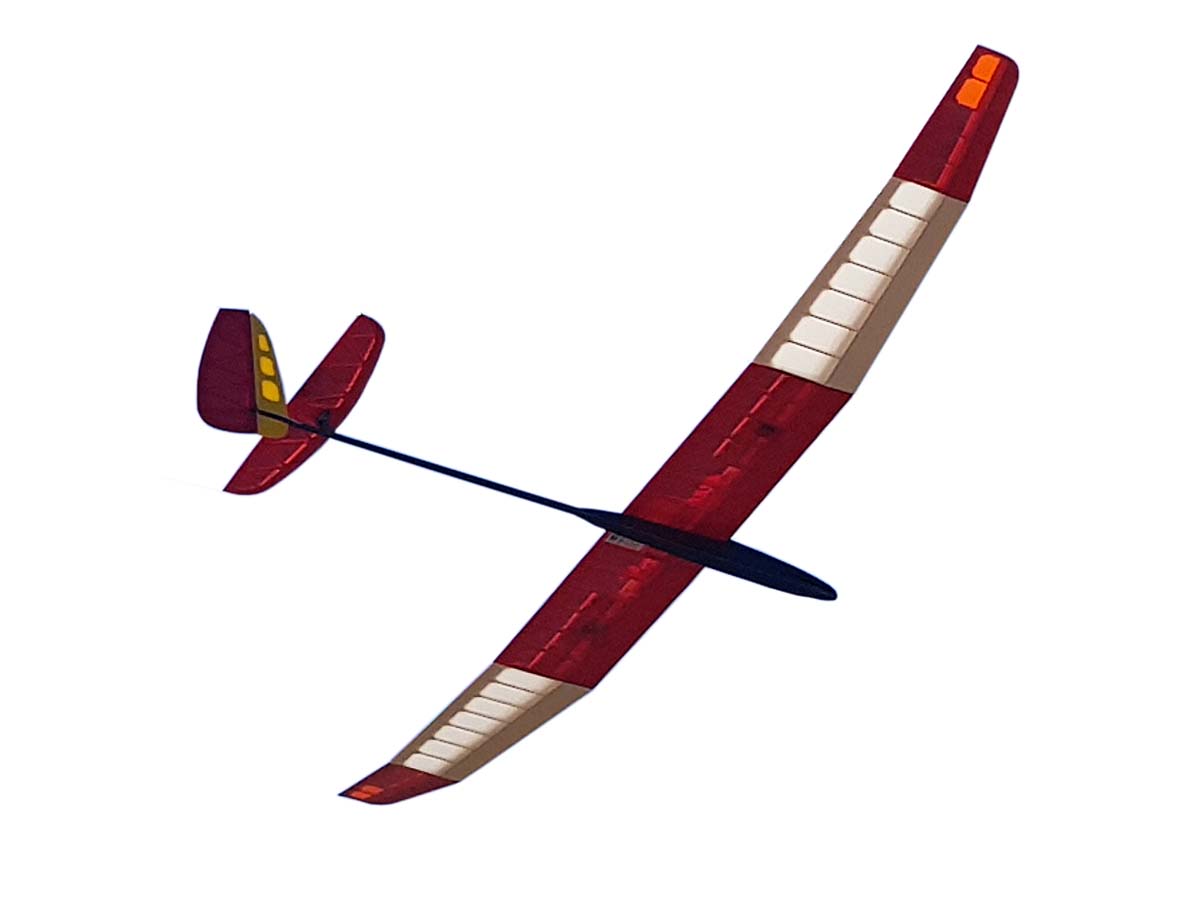

The X-Dream Elektro is the latest development of Alois Janowetz, the designer of the X-RES and X-Dream. The new X-Dream Elektro is a dedicated electric version and performs at the top level.
The X-Dream Elektro has well harmonised flight characteristics and amazing performance. Despite the compettion-optimised design the model is agile and extremely easy to fly. The simple yet strong design and the brilliant use of weight-optimized materials allows a flying weight as low as 425 g and thus a wing loading of only 12 g/dm2 (3.9 oz/sq ft), resulting in very low sink rates.
The large 2-part spoilers allow almost vertical descents without an increase in speed. The wing separates into three panels and the tailplane is removable making the model very easy to transport.

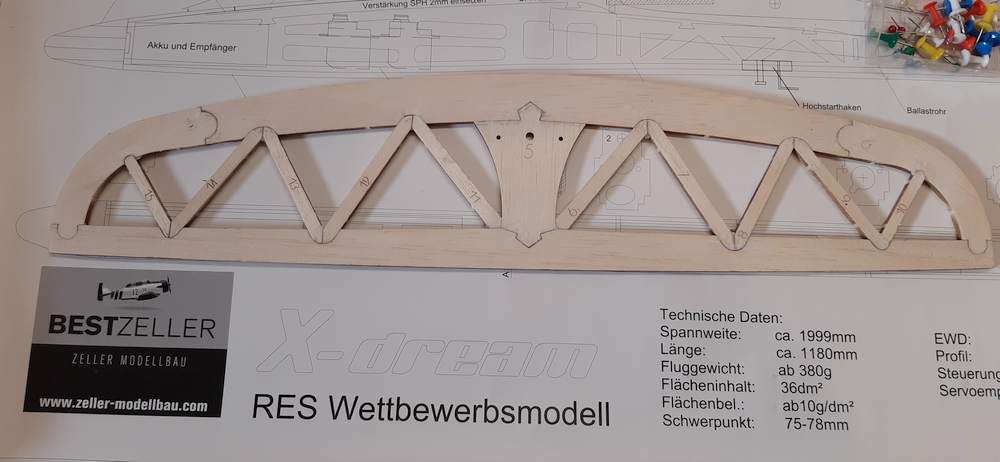

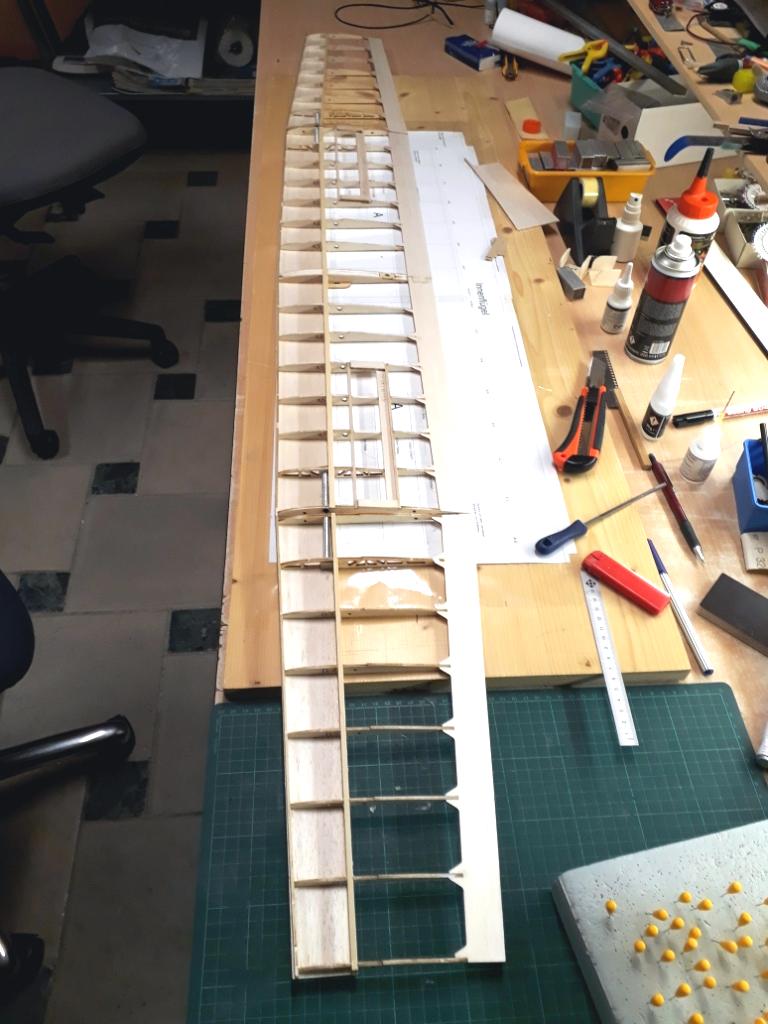

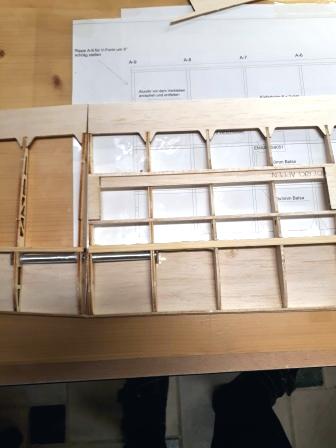

The laser cut kit has very simple and robust construction. Apart from the 6 mm carbon fibre wing joiners and the CF all moving tailplane mount the model is built from selected and optimized laser cut balsa and plywood. The model can be built very quickly using cyanoacrylate superglue, white glue or 5-minute epoxy. Oralight covering is recommended. An adjustable tow hook is standard and is included in the kit, as are the servo linkages. The kit includes a colour plan and comprehensive instructions, in German only. See the More detals heading below for links to the German manual and an English translation.
January 2025 update: Best manual can be downloaded from here - select the one by Brian Brendler.
| X-Dream Elektro Specifications | ||
|---|---|---|
| Wing span | 2.0 m | 79 in |
| Wing area | 36.0 dm2 | 558 sq in |
| Length | 118 cm | 46.5 in |
| Flying weight from | 425 g | 15.0 oz |
| Wing loading | 11.8 g/dm2 | 3.9 oz/sq ft |
| Aspect ratio | 11.1 | |
| Wing airfoil | Modified AG | |
| Dihedral (EDA) | 12.0º | |
| Spinner Diameter | 30 mm | |
| Centre of Gravity | 75-78 mm from wing leading edge | |
| Controls | Rudder, elevator, spoilers, throttle | |
| X-Dream Elektro Typical Weights | ||
|---|---|---|
| Structure | 300 g | 10.6 oz |
| Receiver | 6 g | 0.2 oz |
| Rudder servo | 5 g | 0.2 oz |
| Elevator servo | 5 g | 0.2 oz |
| Spoiler servos (2) | 10 g | 0.4 oz |
| Speed control | 12 g | 0.4 oz |
| Motor | 32 g | 1.1 oz |
| Prop & spinner | 15 g | 0.5 oz |
| Battery | 40 g | 1.4 oz |
| Flying weight | 425 g | 15.0 oz |
| Recommended RC | |
|---|---|
| Rudder & elevator servos | Blue Bird BMS-101DMG, Blue Bird BMS-101HV, CHA DS06, Blue Bird BMS-A10H, KST X06, KST X08 |
| Spoiler servos (2) | Blue Bird BMS-101DMG, Blue Bird BMS-101HV, CHA DS06, Blue Bird BMS-A10H, KST X06, KST X08 |
| Receiver | 4-6 channel rx to match your transmitter |
| Battery | 2S or 3S 350mAh to 800mAh LiPo |
| ESC | HyperFlight 28A, HyperFlight 30A |
| Electric Powertrain Recommendations | |
|---|---|
| Hacker A10-7L 4.4:1 | 3S 450mAh LiPo, 12x8, 13x8 |
| DYS D2225-19 | 2S 450mAh LiPo, 9x6, 10x5 |
| DYS D2225-19 | 3S 450mAh LiPo, 7x3.5, 7x4, 8x4 |
| Dualsky XM2527EG-23 | 2S 450 mAh LiPo: 9x5, 9x6, 10x6 |
| Dualsky XM2225EG-23 | 2S 450 mAh LiPo: 9x5, 10x5, 10x6 |
| Dualsky XM2225EG-23 | 3S 450 mAh LiPo: 7x4, 8x4, 8x5 |
| Dualsky XM2230EG-16 | 3S 450mAh LiPo, 9x5 |
| Dualsky XM2230EG-9 | 2S 450 mAh LiPo: 8x4, 8x5, 8x6 |
| ADH300L** | 2S 450mAh LiPo, 11x6 |
| ADH300L** | 3S 450mAh LiPo, 8x6, 9x5 |
