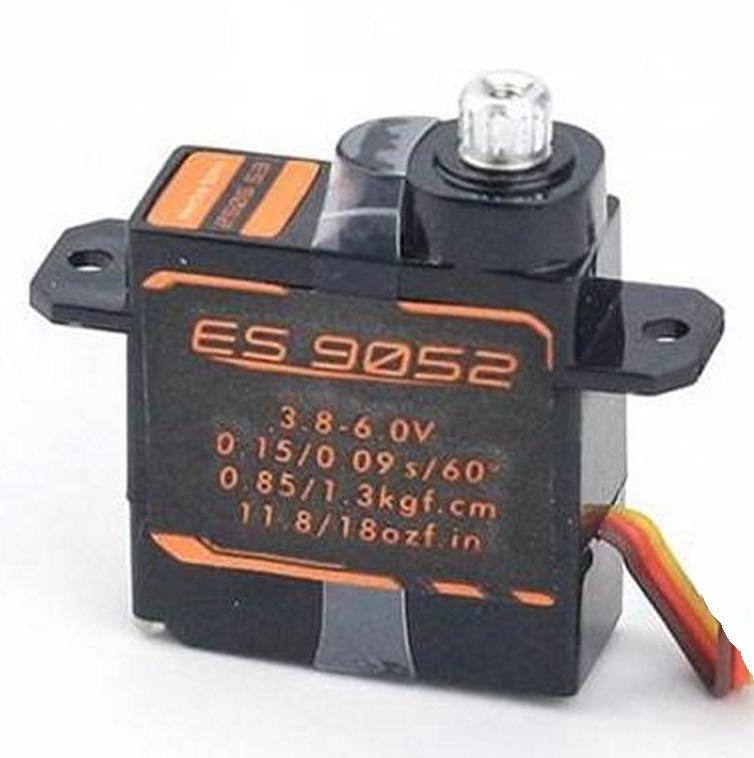

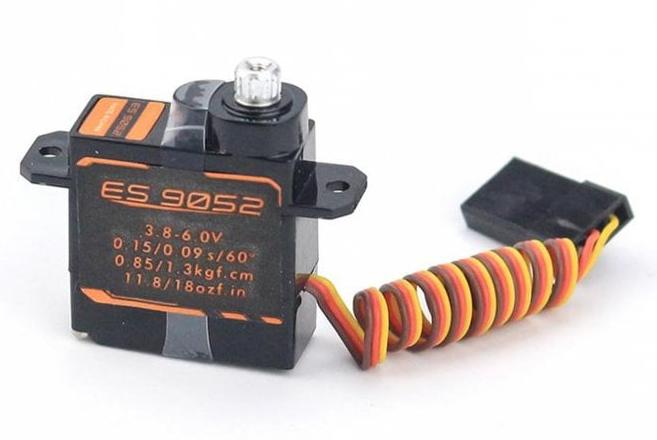

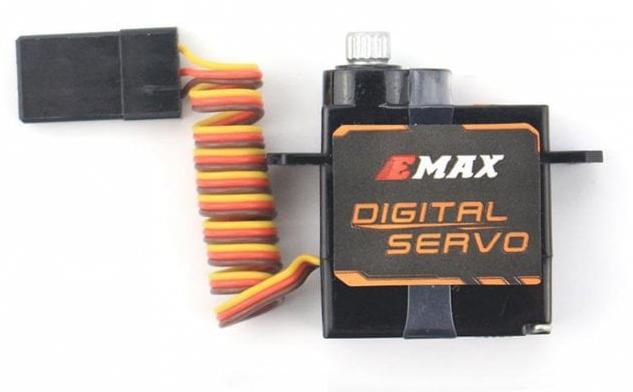

Emax ES9052 Servo - 1.3Kg.cm 0.09s 5.8g 9mm

The Emax ES9052 is an economic 8.8mm thick servo that is suitable for a wide range of small RC models and gliders. It is small enough to fit in most models and is powerful enough for the majority of applications.

Can be used on a 1S LiPo with care - do not discharge the battery below 3.7V.

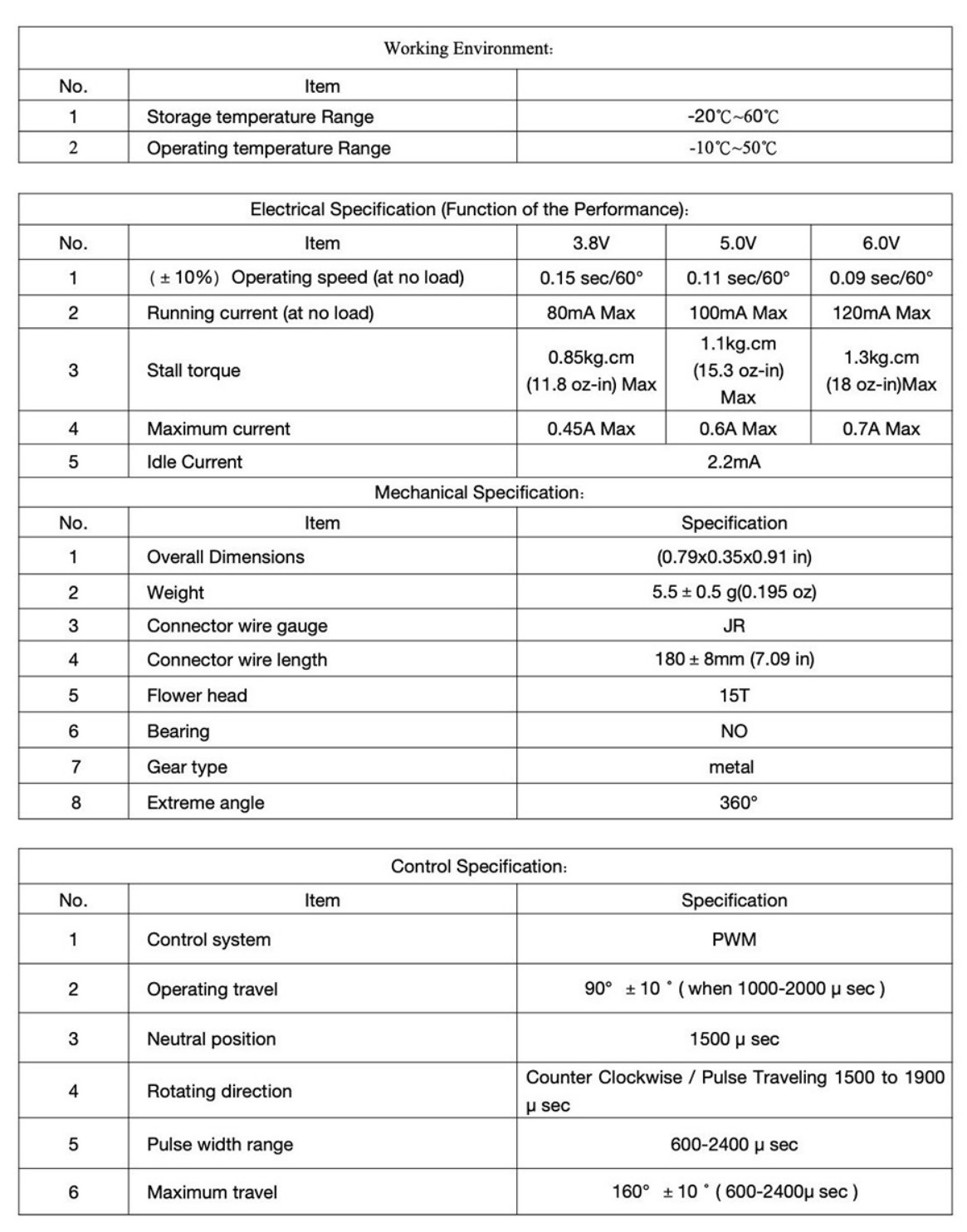

Emax ES9052 Servo Specifications

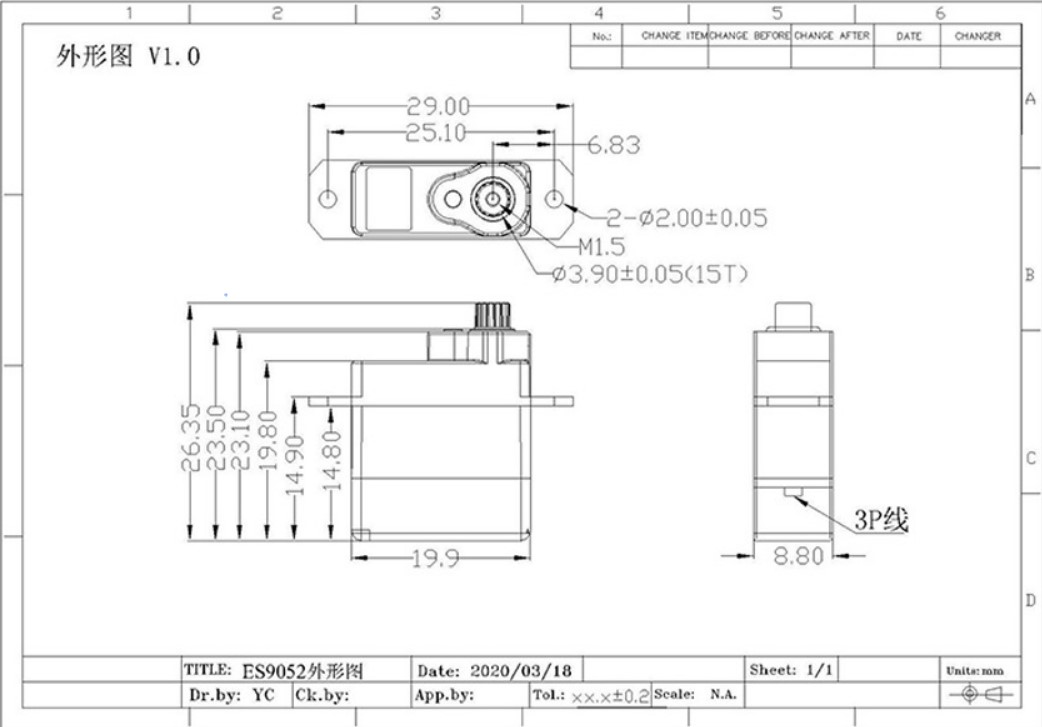

Body dimensions	20.0 mm wide x 8.8 mm thick x 20.0 mm high	0.79" wide x 0.35" thick x 0.79" high
Max dimensions	29.0 mm wide x 8.8 mm thick x 26.4 mm high	1.14" wide x 0.35" thick x 1.04" high
Stall torque (3.8V)	0.85 Kg.cm	12 oz.in
Stall torque (5V)	1.1 Kg.cm	15 oz.in
Stall torque (6V)	1.3 Kg.cm	18 oz.in
Weight	5.8 g	0.20 oz
Lead length	18 cm	7.1 in
Operating speed (3.8V)	0.15 sec/60°
Operating speed (5V)	0.11 sec/60°
Operating speed (6V)	0.09 sec/60°
Operating voltage	3.7V to 6V
Operating temperature	°C
Bearings	1BB
Gear material	Nylon
Case material	Plastic
Motor type	Coreless DC motor
Working frequency	Hz
Dead band/resolution	µs
Pulse width for ± 60º	(L) 1000 µs - (0°) 1500 µs- (R) 2000 µs µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer

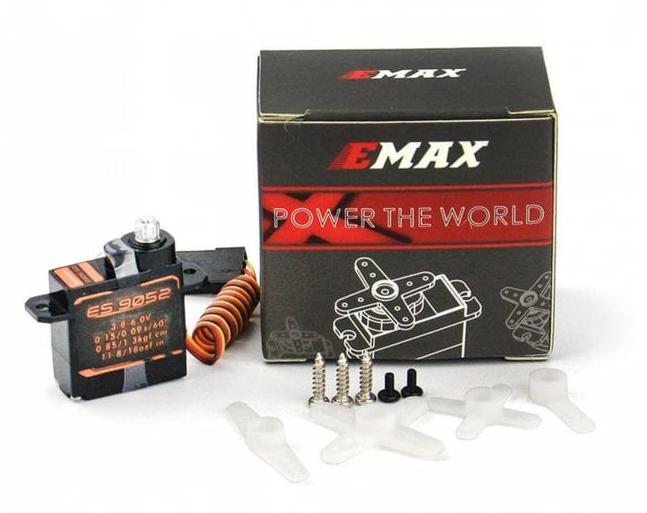

Supplied accessories	4 plastic output arms, 2 arm retaining screws, 3 mounting screws
Optional accessories
