Dualsky SUMMIT 30 SLIM 8V SBEC ESC
Description
The new Dualsky SUMMIT 30 SLIM 8V SBEC ESC is the latest 25A lightweight speed control from this excellent manufacturer. The 8V SBEC makes this ESC ideal for all HV servos. This speed control works flawlessly with all brushless motors, not just Dualsky motors.
The speed control is supplied with the brake ON, so no programming is required for glider use. Solder the brushless motor wires directly to the three PCB lands. Swap any two wires to reverse the direction.

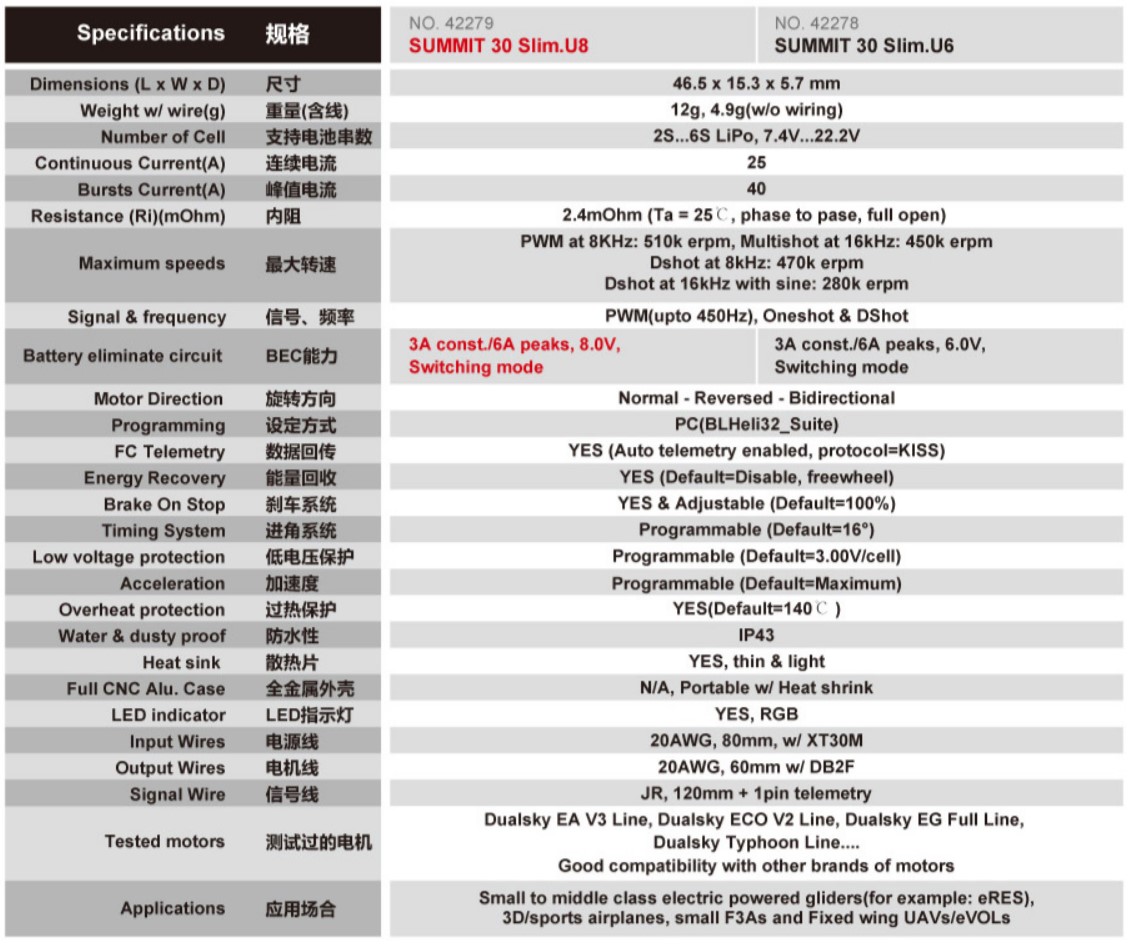

See the photos for the full specifications.
The speed control is supplied with the brake ON, so no programming is required for glider use. Solder the brushless motor wires directly to the three PCB lands. Swap any two wires to reverse the direction.
| Dualsky Summit 30 Slim 8V SBEC ESC Specification | |
|---|---|
| Continuous current | 25A |
| Burst current | 40A |
| Battery | 2S - 6S LiPo |
| SBEC | 3A @ 8V, 6A peak |

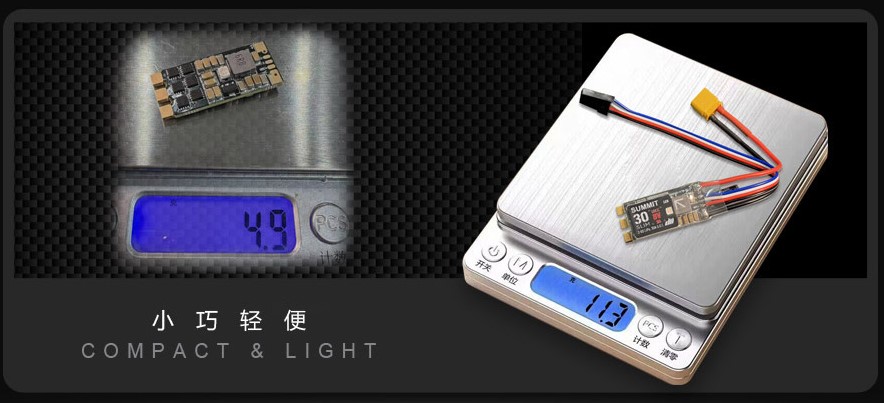

| Weight inc leads | 12g |
| Weight ex leads | 5g |
| Firmware | BLHeli-32 |

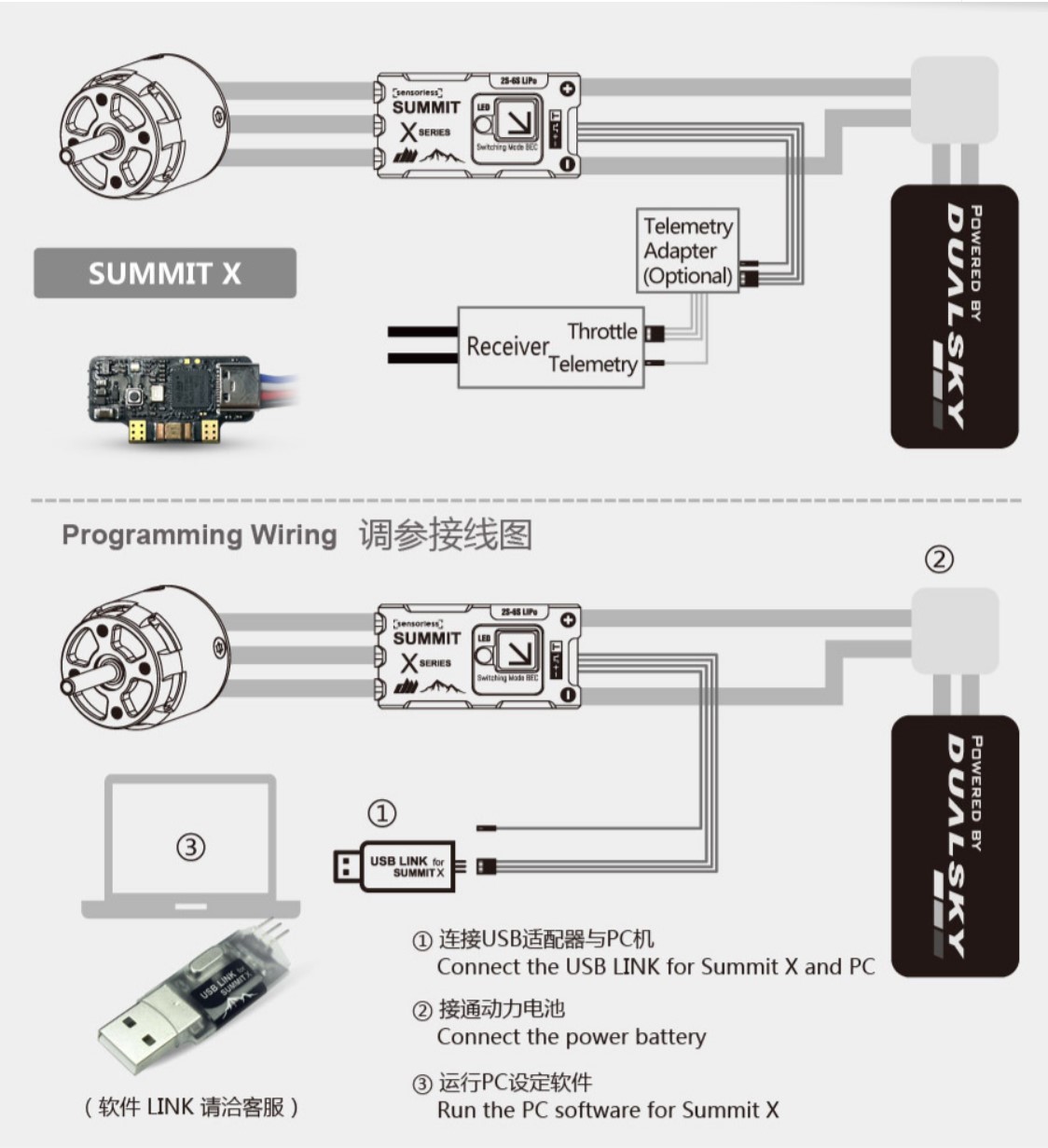

| Programmable | Yes, with an Arduino or our BLHELI-USBprog interface |

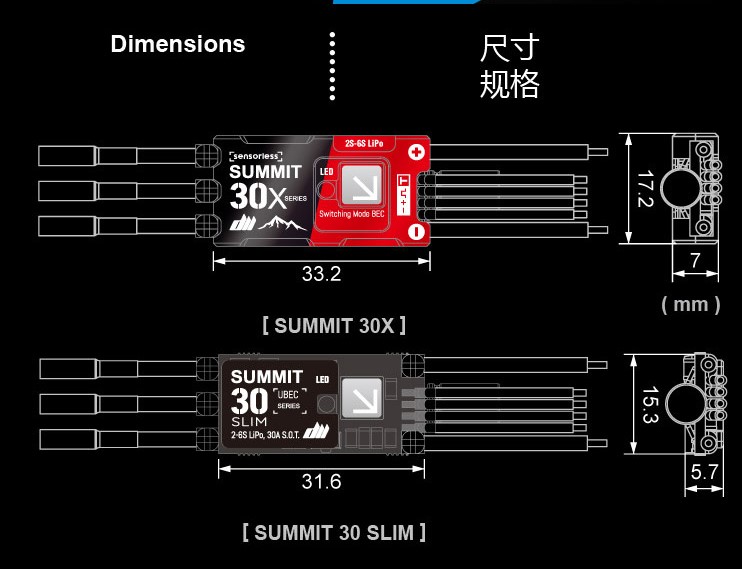

| PCB Size | 46mm * 15mm |
| Battery connector | 8 cm wires, XT30M plug fitted |
| Motor connector | None (lands on PCB) |
| RC wire length | 12 cm |
| Telemetry | Yes |
See the photos for the full specifications.
